JL255A

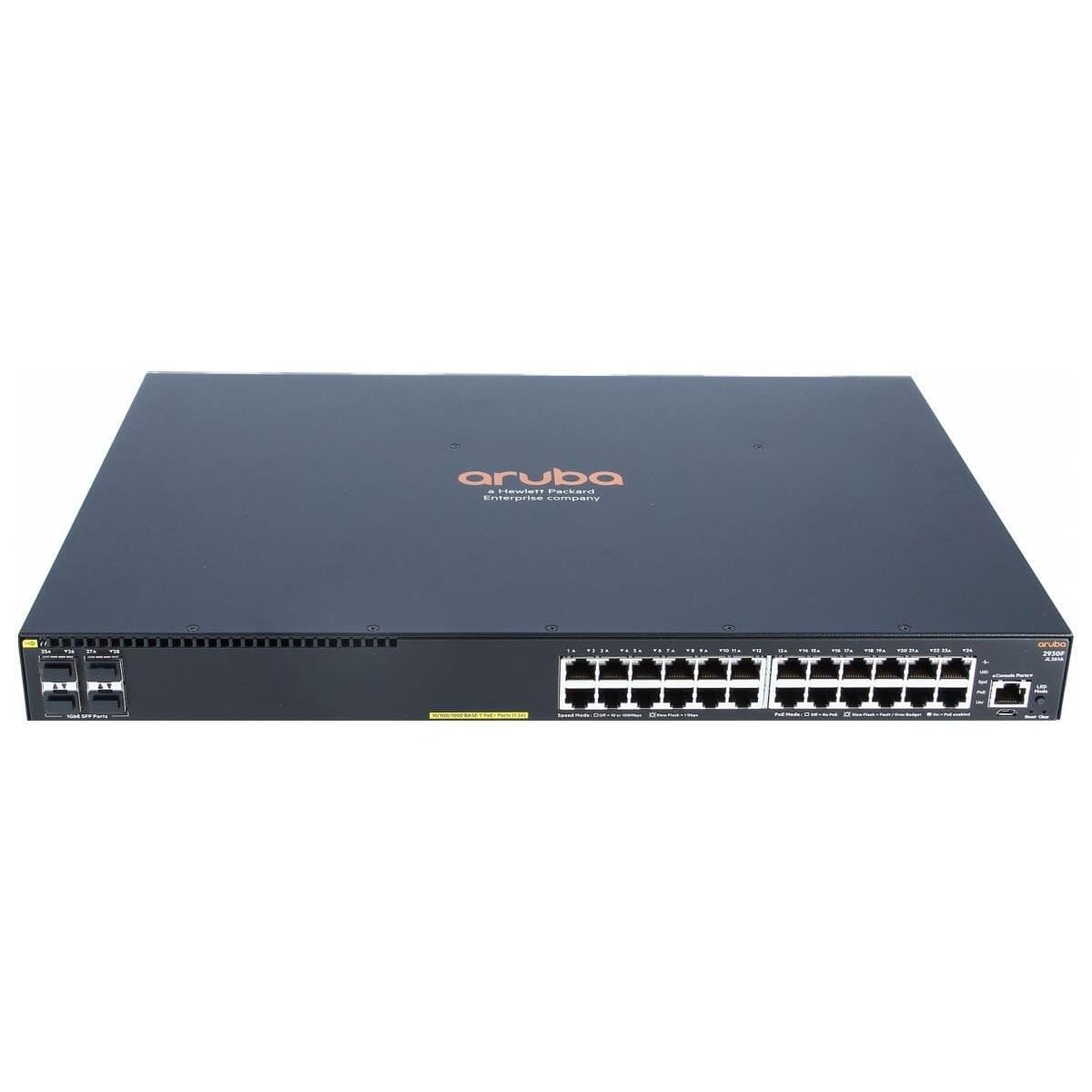

The Hewlett Packard JL255A, also known as the Aruba 2930F 24G PoE+ 4SFP+ Switch, is a Layer 3 access switch designed to optimize performance and simplify network management for modern businesses. Its combination of PoE+ support, high-bandwidth connectivity, and robust features makes it ideal for a variety of applications, such as:

• Small businesses and branch offices: Provide seamless network access for wired and wireless devices with PoE+ support.
• Retail stores and hospitality: Connect POS systems, security cameras, and Wi-Fi access points with reliable power and data.
• Educational institutions: Deliver high-speed network access for classrooms, labs, and administrative offices.
• Data centers and server rooms: Enhance network efficiency and reliability for critical applications.

Key Features:

• 24 Gigabit Ethernet ports with PoE+ support: Power and connect a wide range of devices, including IP phones, VoIP cameras, and wireless access points.
• 4 SFP+ ports: Uplink to high-speed fiber networks for future scalability and bandwidth needs.
• Layer 3 routing: Optimize network traffic flow and improve overall performance.
• Advanced security features: Protect your network from unauthorized access and cyber threats.
• Cloud-based management: Simplify switch configuration and monitoring with Aruba Central.
• Easy deployment: Plug-and-play functionality minimizes setup time and effort.

Benefits:

• Increased efficiency: PoE+ eliminates the need for separate power cables and simplifies device deployment.
• Enhanced performance: High-speed Gigabit Ethernet and optional fiber connectivity deliver fast and reliable data transfer.
• Simplified management: Cloud-based tools make it easy to configure and monitor the switch remotely.
• Improved security: Advanced features protect your network from unauthorized access and cyber threats.
• Reduced costs: PoE+ eliminates the need for additional power injectors, saving on hardware and installation expenses.

Overall, the Hewlett Packard JL255A offers a compelling combination of performance, features, and affordability, making it a valuable asset for any business looking to streamline their network and boost productivity. Whether you’re a small business owner or managing a large network infrastructure, the JL255A is a reliable and scalable solution that can meet your evolving needs.

• Product Description:	HPE Aruba 2930F 24G PoE+ 4SFP+ – switch – 24 ports – managed – rack-mountable
  Device Type:	Switch – 24 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	370 W
  Performance:	Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Power:	AC 120/230 V
  Dimensions (WxDxH):	17.4 in x 12 in x 1.7 in
  Weight:	8.6 lbs
  Localization:	English / United States

• General

  Device Type:	Switch – 24 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	370 W
  Performance:	Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
  Encryption Algorithm:	MD5, SSL
  Authentication Method:	RADIUS, PAP, CHAP, TACACS, TACACS+
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Processor:	1 x ARM Cortex-A9: 1.016 GHz
  RAM:	1 GB DDR3 SDRAM
  Flash Memory:	4 GB

• Expansion / Connectivity

  Interfaces:	24 x 1000Base-T RJ-45 PoE+ ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console)
  Expansion Slots:	1 (total) / 1 (free) x expansion slot
  Installed Modules Qty (Max):	0 (installed) / 4 (max)

• Power

  Power Device:	Internal power supply
  Installed Qty:	1
  Voltage Required:	AC 120/230 V
  80 PLUS Certification:	80 PLUS Silver

• Miscellaneous

  Included Accessories:	Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
  Compliant Standards:	CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
  Localization:	English / United States

• Software / System Requirements

  Software Included:

  Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center



• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	113 °F
  Humidity Range Operating:	15 – 95% (non-condensing)
  Min Storage Temperature:	-40 °F
  Max Storage Temperature:	158 °F
  Humidity Range Storage:	15 – 90% (non-condensing)
