Hewlett Packard JL253A – 2930F 24G 4SFP+ – Switch – L3 – managed – 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – rack-mountable

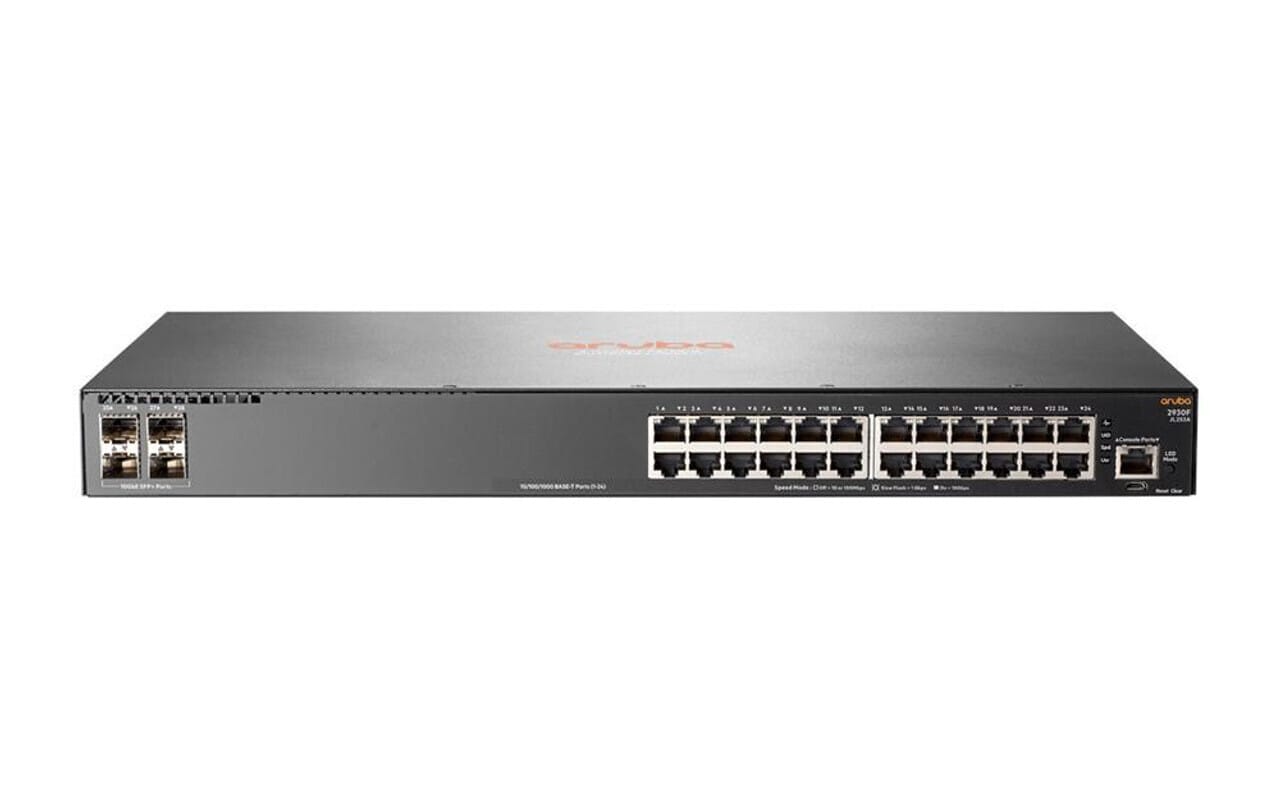

HPE JL253A Aruba 2930F 24G 4SFP+ Switch

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

The HPE JL253A is a powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

• Primary Information

  Product Description:	HPE Aruba 2930F 24G 4SFP+ – switch – 24 ports – managed – rack-mountable
  Device Type:	Switch – 24 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  Performance:	Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Power:	AC 120/230 V
  Dimensions (WxDxH):	17.4 in x 7.9 in x 1.7 in
  Weight:	5.31 lbs
  Localization:	English / United States

• General

  Device Type:	Switch – 24 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  Performance:	Throughput: 95.2 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
  Encryption Algorithm:	MD5, SSL
  Authentication Method:	RADIUS, PAP, CHAP, TACACS, TACACS+
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Processor:	1 x ARM Cortex-A9: 1.016 GHz
  RAM:	1 GB DDR3 SDRAM
  Flash Memory:	4 GB

• Expansion / Connectivity

  Interfaces:	24 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console)
  Expansion Slots:	1 (total) / 1 (free) x expansion slot
  Installed Modules Qty (Max):	0 (installed) / 4 (max)

• Power

  Power Device:	Internal power supply
  Installed Qty:	1
  Voltage Required:	AC 120/230 V
  Power Consumption Operational:	29.3 Watt
  80 PLUS Certification:	80 PLUS Silver

• Miscellaneous

  Included Accessories:	Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
  Compliant Standards:	CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
  Localization:	English / United States

• Software / System Requirements

  Software Included:

  Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center

• Dimensions & Weight

  Width:	17.4 in
  Depth:	7.9 in
  Height:	1.7 in
  Weight:	5.31 lbs
