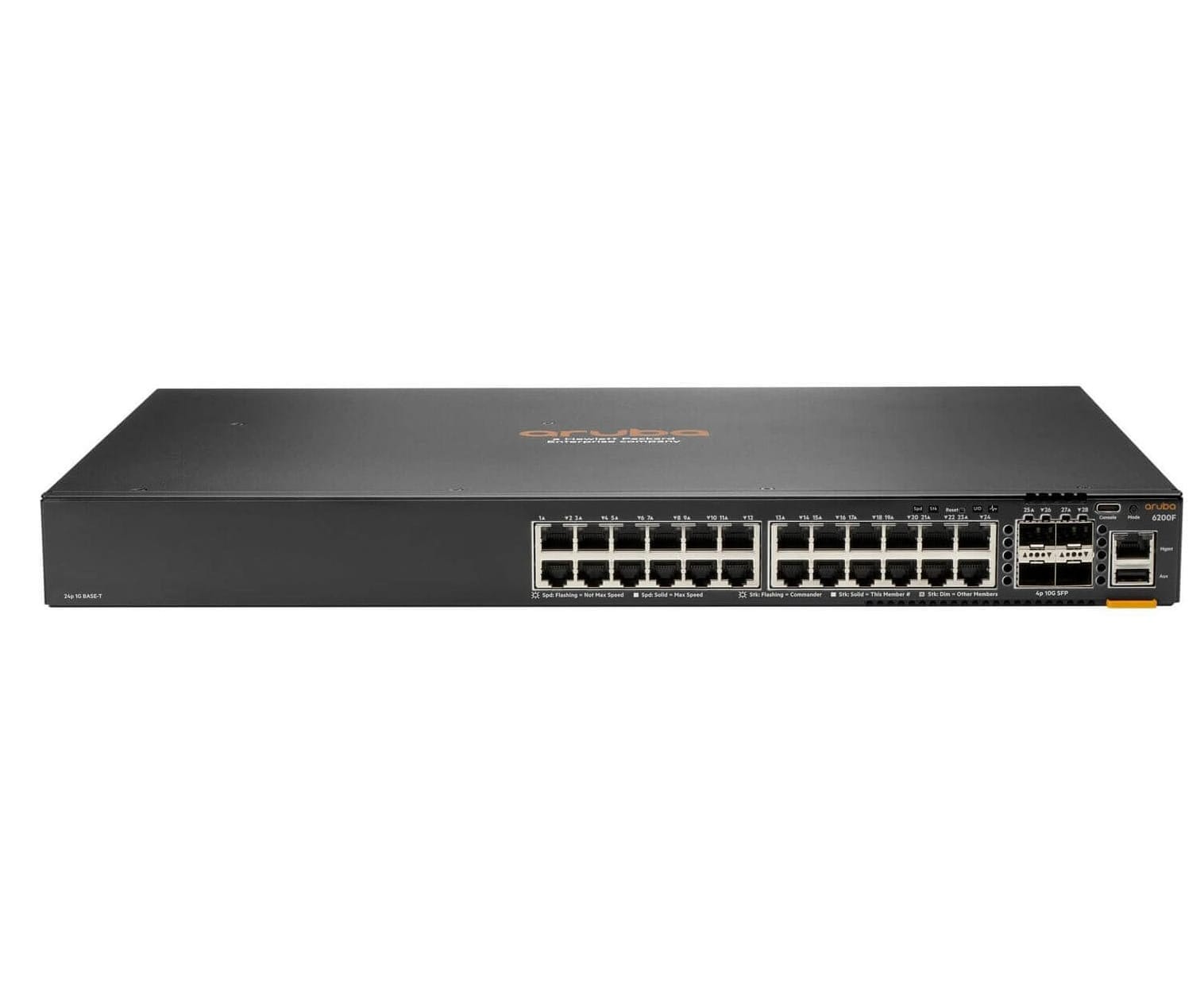

Hewlett Packard JL725A – Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch – Switch – L3 – managed – 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ – rack-mountable – PoE+ (370 W)

Hewlett Packard JL725A: High-Performance Switch for Demanding Networks

The Hewlett Packard JL725A, also known as the Aruba CX 6200F 24G Class4 PoE 4SFP+ 370W Switch, is a high-performance networking solution designed for demanding environments. With its robust features and powerful capabilities, it’s ideal for:

• Enterprise campus networks: Connect a diverse range of devices with 24 Gigabit Ethernet ports and Class 4 PoE, supporting IP phones, cameras, and wireless access points.
• Data centers: Optimize network performance and efficiency for critical applications with high-speed data transfer and advanced routing capabilities.
• Branch offices: Ensure reliable and scalable network access for remote locations.

Key Features:

• 24 Gigabit Ethernet ports with Class 4 PoE: Power and connect a wide range of devices efficiently, eliminating the need for separate power injectors.
• 4 SFP+ ports: Enable high-bandwidth fiber optic uplinks for future-proof network expansion and improved performance.
• Layer 3 routing: Optimize network traffic flow for improved efficiency and enhanced application performance.
• Advanced security features: Protect your network from unauthorized access and cyber threats with features like Aruba ClearPass and Network Access Control.
• Cloud-based management: Simplify switch configuration and monitoring with Aruba Central, enabling centralized control and easy network administration.
• Stacking capabilities: Expand your network easily by adding additional switches and increasing port density.

Benefits:

• Increased efficiency: Class 4 PoE eliminates the need for separate power injectors, reducing hardware and installation costs.
• Enhanced performance: Gigabit Ethernet and optional fiber connectivity deliver fast and reliable data transfer for demanding applications.
• Simplified management: Cloud-based tools provide centralized control and configuration for easy network administration.
• Improved security: Advanced features ensure network safety and protect against cyber threats, providing peace of mind and data security.
• Scalability: The JL725A can be easily stacked with other Aruba CX 6200F switches for seamless network expansion as your business grows.

Overall, the Hewlett Packard JL725A is a powerful and versatile switch that can meet the demanding needs of modern networks. If you’re looking for a high-performance, scalable, and secure network solution, the JL725A is a top contender.

• Primary Information

  Product Description:	HPE Aruba 6200F 24G Class4 PoE 4SFP+ 370W Switch – switch – 28 ports – managed – rack-mountable
  Device Type:	Switch – 28 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	370 W
  Performance:	Switching capacity: 128 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Throughput: 95.2 Mpps
  Power:	AC 120 V
  Dimensions (WxDxH):	17.4 in x 12.9 in x 1.7 in
  Weight:	10.8 lbs
  Localization:	English / United States
  Manufacturer Warranty:	Limited lifetime warranty

• General

  Device Type:	Switch – 28 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	370 W
  Performance:	Switching capacity: 128 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Throughput: 95.2 Mpps
  Processor:	1 x ARM Cortex-A72: 1.8 GHz

• Expansion / Connectivity

  Interfaces:

  24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1/10Gbit LAN SFP+

• Power

  Voltage Required:

  AC 120 V
