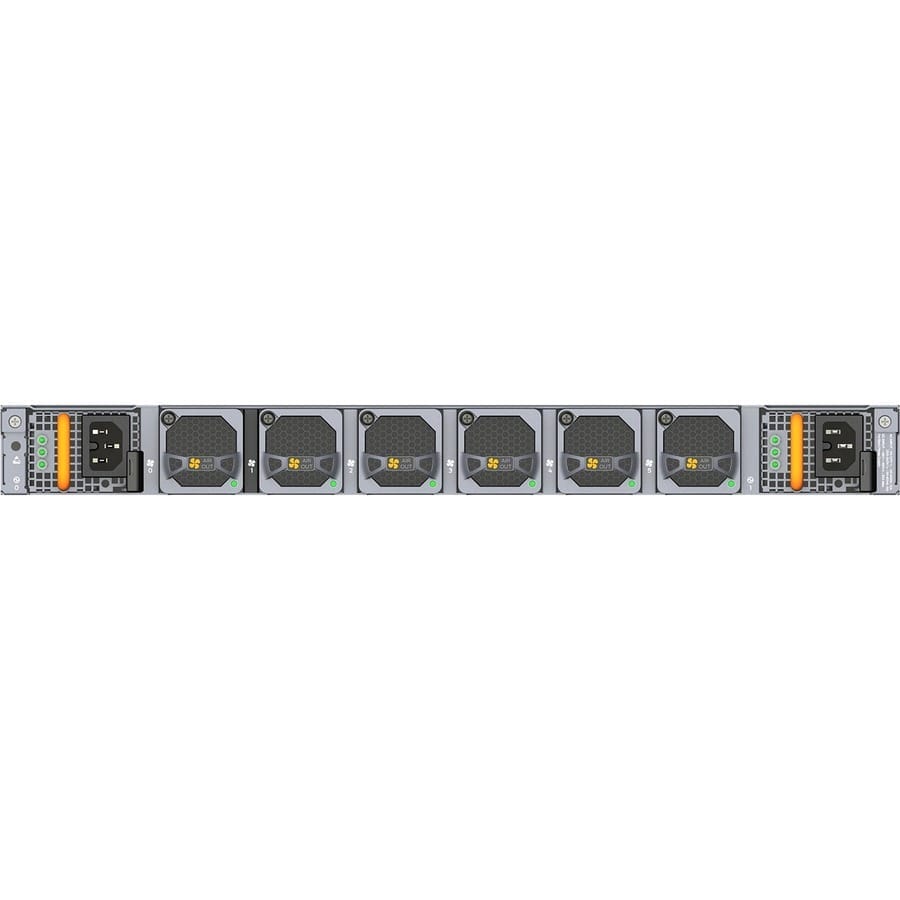

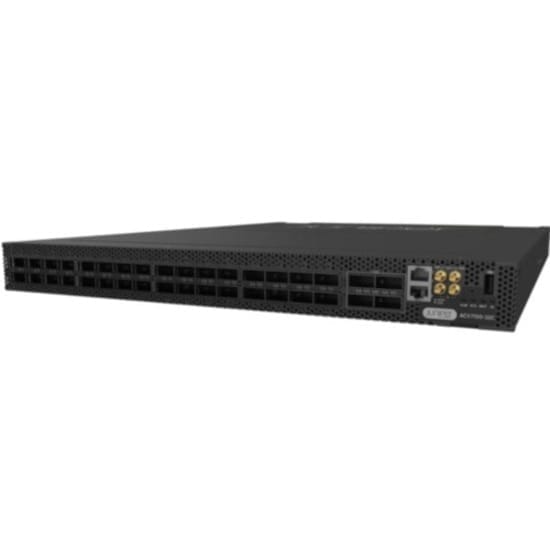

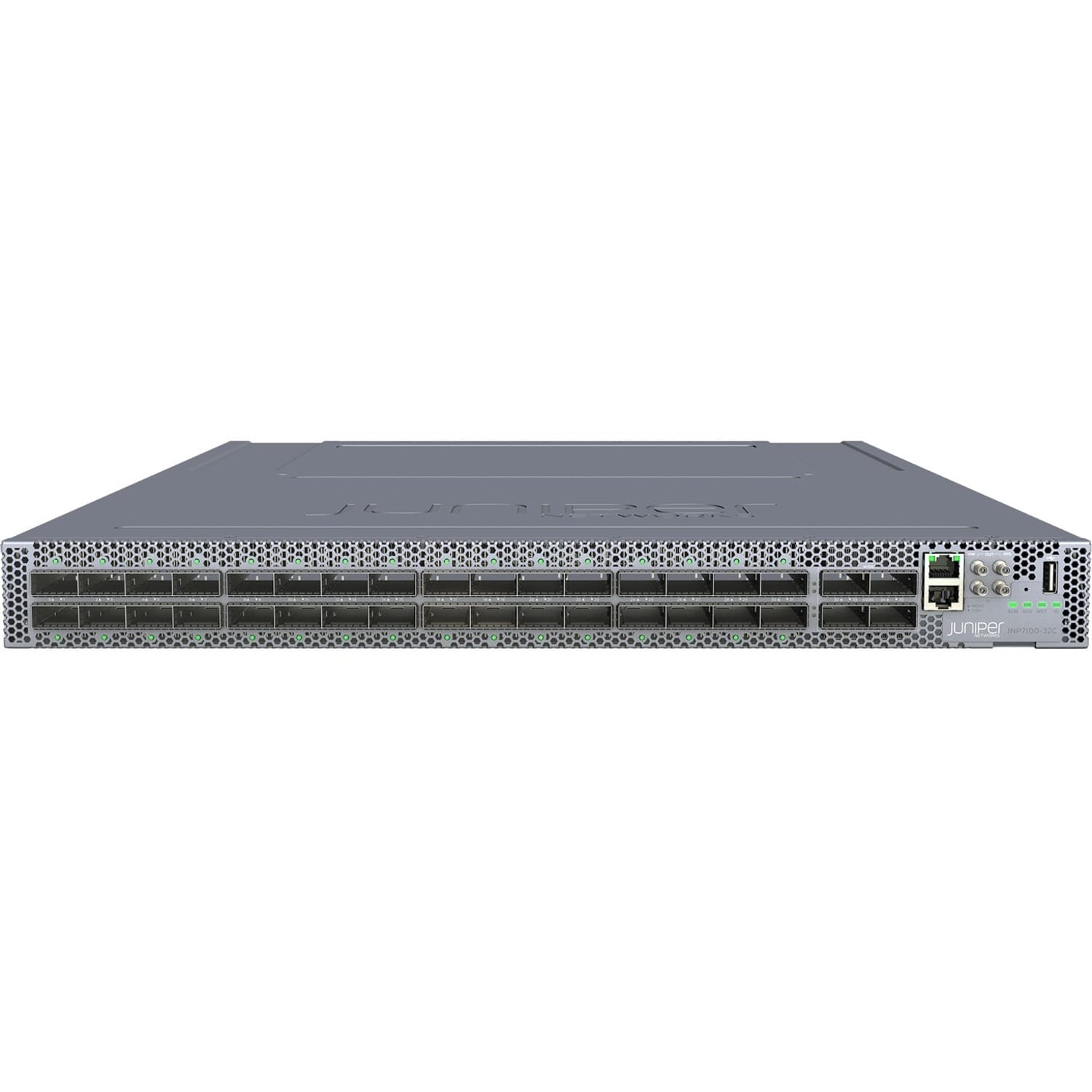

Juniper ACX7100-32C-LDC-AO Router Chassis

Juniper ACX7100-32C Router Chassis – 36 – 400 Gigabit Ethernet – IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3ad – 1U – Rack-mountable – 1 Year

• With the versatile chassis, build a network that suits your needs by installing multiple modules and have more flexibility in expanding your router when required
• With 100GBase-X technology, enjoy up to 100Gbps data transfer rate over supported network cable
• Rack-mountable feature for convenient and safe installation of the router

The Juniper Networks® ACX7100 Series is designed to help operators achieve their capital, operational, and user experience goals. The ACX7100 offers industryleading power efficiency in a compact form factor. It delivers 4.8 Tbps of ASIC forwarding capacity, cloud-inspired native port speeds that include 400GbE quad small form-factor pluggable transceiver (QSFP56-DD) interfaces, and Media Access Control Security (MACsec) options-making it ideal for metro high-end aggregation, large enterprise, and top-of-rack, spine-leaf data center applications.

Combined with the power of Junos® OS Evolved and the Juniper Paragon Automation Portfolio, the ACX7100 is fully equipped to help operators realize their capital and operational objectives while thriving in the 5G, IoT, and cloud era. Platform capabilities include: deep buffers; a full complement of Layer 2/Layer 3 and MPLS protocols and features; advanced programmability, telemetry, and network slicing technologies enabling dynamic service creation; and the ability to seamlessly integrate with emerging distributed edge compute architectures. Designed for metro, large enterprise, and data center use cases, the ACX7100 is also a foundational building block of an IP services fabric in a Juniper Cloud Metro solution.

ACX7100 Product Offering

The ACX7100 Router comes in two models, each equipped to address the challenges and opportunities of the 5G, IoT, and cloud era:

• ACX7100-32C: The ACX7100-32C provides full duplex ASIC throughput of 4.8 Tbps in a 1 U fixed platform designed for applications that require dense fan-out in a small, power-efficient footprint. It supports 32 ports of 100GbE and 4 ports of 400GbE QSFP56-DD, including MACsec support on all ports.

• ACX7100-48L: The ACX7100-48L provides full duplex ASIC throughput of 4.8 Tbps in a 1 U fixed platform designed for applications that require dense fan-out in a small, power-efficient footprint. It supports cloud-inspired service rates, and port-by-port configuration of native 10GbE (SFP+), 25GbE (SFP28), and 50GbE (SFP56) on all 48 service ports, including 6 ports of 400GbE QSFP56-DD for granular aggregation in metro, large enterprise, and data center applications.

ACX7100 platforms provide investment protection to operators. Juniper incorporates an innovative circuit board design to deliver groundbreaking performance, increased system memory for enhanced scaling, and cooling innovations that enable the use of cutting-edge pluggable transceiver technologies. Efficient cooling within these 1 U platforms enables ZR/ZR+ pluggable transceiver technology to be fully deployed on all 100GbE and 400GbE ports simultaneously, delivering industry-leading flexibility and capacity. Integrated port variety, density, and flexibility provide previously unattainable levels of scale and long-term transformation in a fixed form factor.
