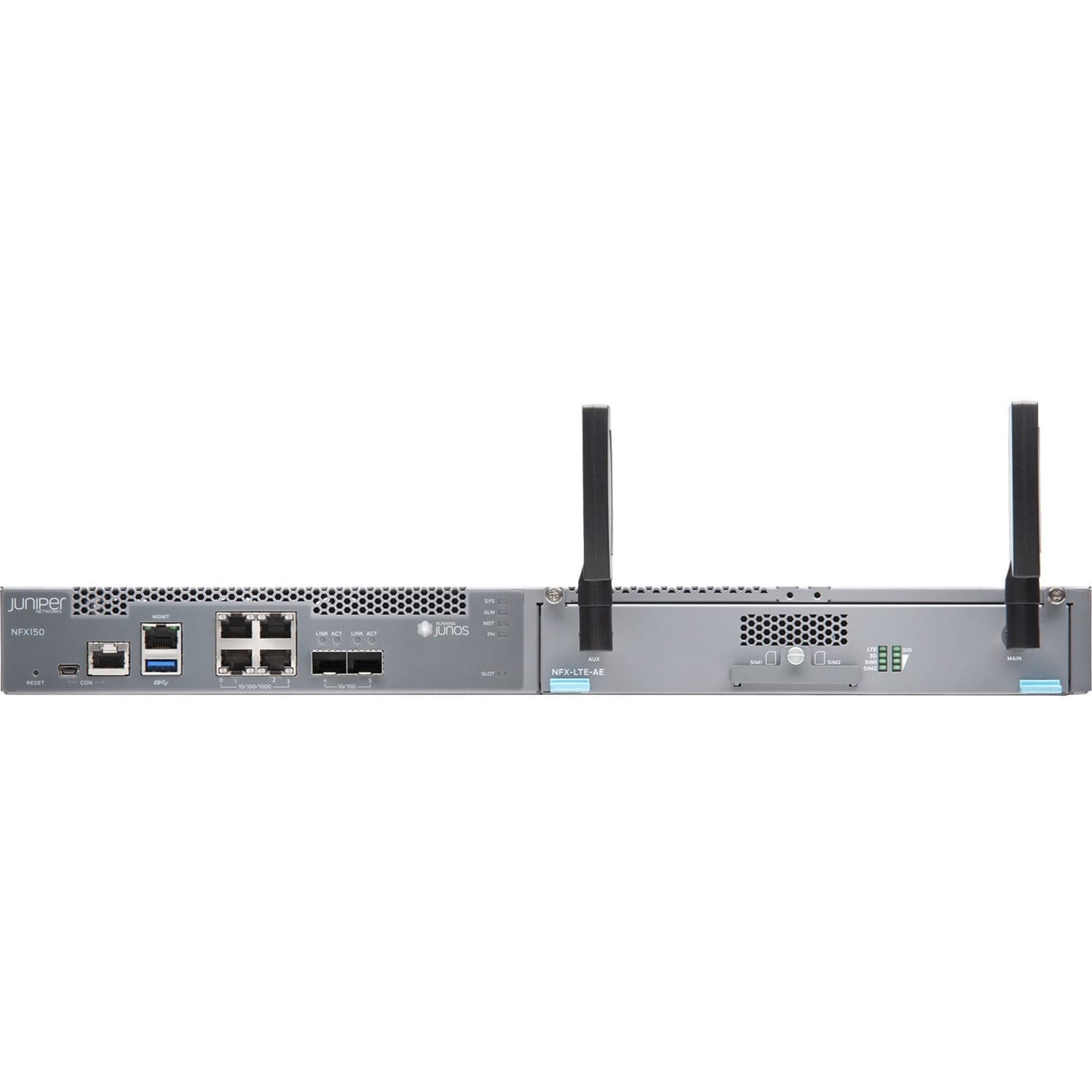

About the NFX150-S1
The NFX150-S1 is the mid-range NFX150: 4 RJ-45 ports and 2 SFP+ ports, an 8-core x86 processor with QAT, 16 GB of memory and 2 module slots. It runs Junos OS and uses front-to-back airflow.
A single power supply with a 150 W maximum AC draw feeds it. Optics are sold separately. Storage sizes differ between Juniper’s sources, so confirm the SSD size with us before ordering.
What’s included
- NFX150 network services platform with 4 RJ-45 and 2 SFP+ ports, an 8-core x86 processor with QAT and 16 GB of memory
- Junos OS
Sold separately
- Optics for the pluggable ports
- Advanced licenses and Juniper Care, listed in Support & Licensing above
Choosing a version
- NFX150-S1 (this page): AC power, front-to-back airflow
Related models: NFX150-C-S1, NFX150-S1E.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
NFX150-S1 specifications
| Network ports | 4x RJ-45, 2x SFP+ |
|---|---|
| Module slots | 2 |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.72 x 17.36 x 12 in (4.4 x 44.1 x 30.5 cm) |
| Weight (as shipped) | 11.68 lb / 5.3 kg |
| Airflow | Front-to-back |
| Power supplies | 1 |
| Max power draw (AC) | 150 W |
| Fans | 2 |
| CPU | 2.2-GHz 8-core Intel |
| Memory | 16 GB |
| Storage | 200 GB raw SSD |
| Operating temperature | 32° through 104° F / 0° through 40° C |
| Operating system | Junos OS |
Full specifications (44)
Network ports
| RJ-45 Ports | 4 |
|---|---|
| SFP+ Ports | 2 |
Management and other ports
| Console Ports | 2 |
|---|---|
| Console Port Type | RJ-45, Mini USB Type B |
| Management Ports | 1 |
| Management Port Type | RJ-45 |
| USB Ports | 1 |
| USB Port Type | USB 3.0 Type A |
| LTE Support | Yes |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 12 in / 30.48 cm |
| Weight (as shipped) | 11.68 lb / 5.3 kg |
| Weight (configured, without line cards) | 11.68 lb / 5.3 kg |
Power
| Power supplies | 1 |
|---|---|
| AC Max Power Consumption | 150 W |
Cooling
| Airflow Direction | Front-to-back |
|---|---|
| Fan modules | 2 |
Processor
| CPU | 2.2-GHz 8-core Intel |
|---|---|
| Memory (DRAM) | 16 GB |
Storage
| Internal Storage Size | 200 GB raw |
|---|---|
| Internal Storage Type | SSD |
Routing engines and fabric
| Module Slots | 2 |
|---|
Security performance
| IPsec | 0.15 Gbps |
|---|---|
| Managed Secure Router | 0.5 Gbps |
| Managed Security | 0.5 Gbps |
Switching and routing scale
| MSTP Instances | 64 |
|---|---|
| Maximum Mirroring Sessions | 1 |
| Traffic Mirroring Destination VLANs | 1 |
| Traffic Mirroring Destination Ports | 1 |
| VNFs (max) | 3 |
Encryption
| IPsec Authentication Algorithms | MD5, SHA-1, SHA-128, SHA-256 |
|---|---|
| IPsec Encryption Algorithms | DES, 3DES, AES-256, AES-GCM |
Environmental
| Operating Temperature | 32° through 104° F / 0° through 40° C |
|---|---|
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Operating Altitude | 6500 ft (1981 m) |
| Humidity, operating (noncondensing) | 5% through 90% |
| Humidity, non-operating (noncondensing) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Acoustic Noise Level (Max) | 40 dB |
| Maintenance Clearance | 24 in / 60.96 cm |
Software
| Operating system | Junos OS |
|---|
Common questions
How is the S1 different from the NFX150-C-S1?
The S1 has an 8-core processor, 16 GB of memory and 2 module slots. The C-S1 is the smaller 4-core unit with 8 GB and no module slots.
Does it have expansion slots?
Yes. It has 2 module slots, alongside the 4 RJ-45 ports and 2 SFP+ ports.
Is the SSD size confirmed?
Not here. Ask us to confirm the storage size before ordering.
