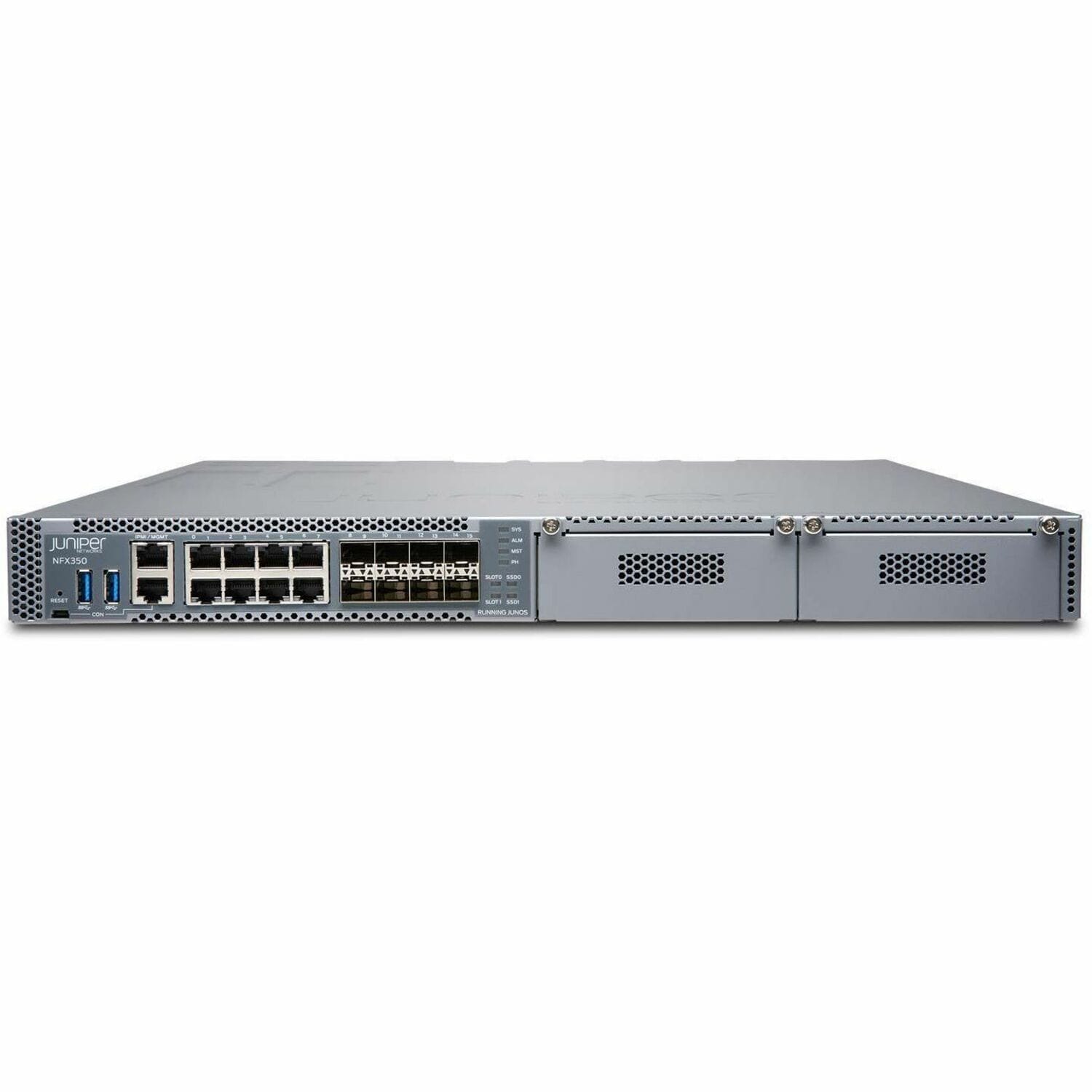

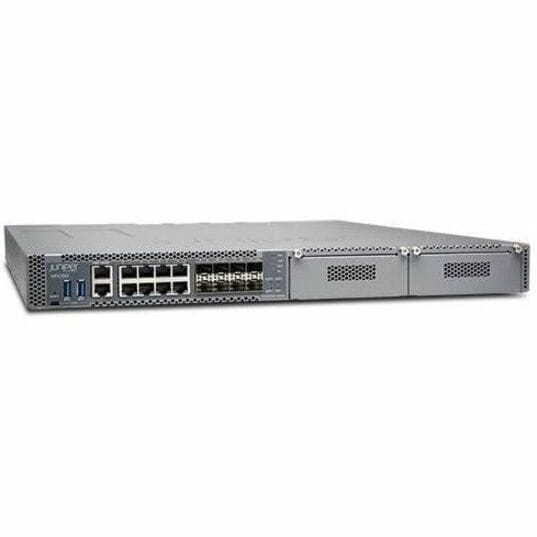

About the NFX350-S1-AC
The NFX350-S1-AC is the starting NFX350: 8 RJ-45 ports, 8 SFP+ ports, an 8-core Skylake Xeon-D processor with QAT, 32 GB of RAM and 2 module slots. It runs Junos OS.
It ships with a single AC power supply. The second supply and an LTE module are optional accessories. Maximum AC draw is 205 W, with front-to-back airflow.
What’s included
- NFX350-S1 platform with 8 RJ-45 and 8 SFP+ ports, a 8-core Xeon-D processor with QAT and 32 GB of RAM
- One AC power supply
- Junos OS
Sold separately
- Second power supply and LTE module
- Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above
Choosing a version
- NFX350-S1-AC (this page): single supply, AC power, front-to-back airflow
- NFX350-S1-DC: single supply, DC power, front-to-back airflow
Related models: NFX350-S2-AC, NFX350-S3-AC.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
NFX350-S1-AC specifications
| Network ports | 8x RJ-45, 8x SFP+ |
|---|---|
| Module slots | 2 |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.72 x 17.36 x 20.87 in (4.4 x 44.1 x 53 cm) |
| Airflow | Front-to-back |
| Max power draw (AC) | 205 W |
| Fans | 4 (hot-swappable) |
| CPU | 8-core Intel Skylake D-2146NT |
| Memory | 32 GB |
| Operating temperature | 32° through 122° F / 0° through 50° C |
| Operating system | Junos OS |
Full specifications (42)
Network ports
| RJ-45 Ports | 8 |
|---|---|
| SFP+ Ports | 8 |
Management and other ports
| Console Ports | 2 |
|---|---|
| Console Port Type | RJ-45, Mini USB Type B |
| Management Port Type | RJ-45 |
| USB Ports | 2 |
| USB Port Type | USB 3.0 Type A |
| Management/IPMI Ports | 1 |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 20.87 in / 53.0098 cm |
| Chassis depth (with power supplies and fans) | 22.38 in / 56.8452 cm |
| Weight (configured, without line cards) | 18.54 lb / 8.41 kg |

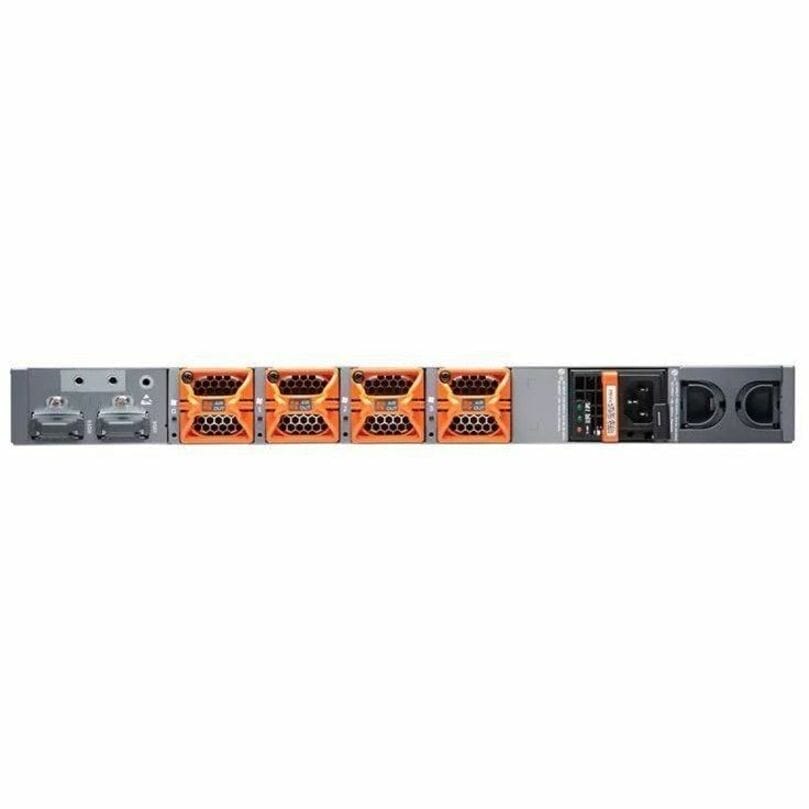

Power
| Power supply airflow | Front-to-back |
|---|---|
| Hot-swappable power supplies | Yes |
| AC Max Power Consumption | 205 W |
Cooling
| Airflow Direction | Front-to-back |
|---|---|
| Fan modules | 4 |
| Hot-swappable fans | Yes |
Processor
| CPU | 8-core Intel Skylake D-2146NT |
|---|---|
| Memory (DRAM) | 32 GB |
Storage
| External Storage Size | 1600 (800+800) GB |
|---|---|
| External Storage Type | SSD |
Routing engines and fabric
| Module Slots | 2 |
|---|
Security performance
| IPsec | 2.5 Gbps |
|---|---|
| Managed Secure Router | 12 Gbps |
| Managed Security | 12 Gbps |
Switching and routing scale
| MSTP Instances | 64 |
|---|---|
| Maximum Mirroring Sessions | 1 |
| Traffic Mirroring Destination VLANs | 1 |
| Traffic Mirroring Destination Ports | 1 |
| VNFs (max) | 8 |
Encryption
| IPsec Authentication Algorithms | MD5, SHA-1, SHA-128, SHA-256 |
|---|---|
| IPsec Encryption Algorithms | DES, 3DES, AES-256, AES-GCM |
Environmental
| Operating Temperature | 32° through 122° F / 0° through 50° C |
|---|---|
| Operating Altitude | 6562 ft (2000 m) |
| Humidity, operating (noncondensing) | 5% through 90% |
| Acoustic Noise Level (Max) | 61 dB |
| Maintenance Clearance | 30 in / 76.2 cm |
Software
| Operating system | Junos OS |
|---|
Common questions
Can I add a second power supply?
Yes. The unit is dual AC power supply capable, and the second supply is an optional accessory.
Is an LTE module included?
No. The second supply and the LTE module are optional accessories.
How does the S1 differ from the S2 and S3?
The S1 has 8 cores and 32 GB of RAM. The S2 has 12 cores and 64 GB, and the S3 has 16 cores and 128 GB.
