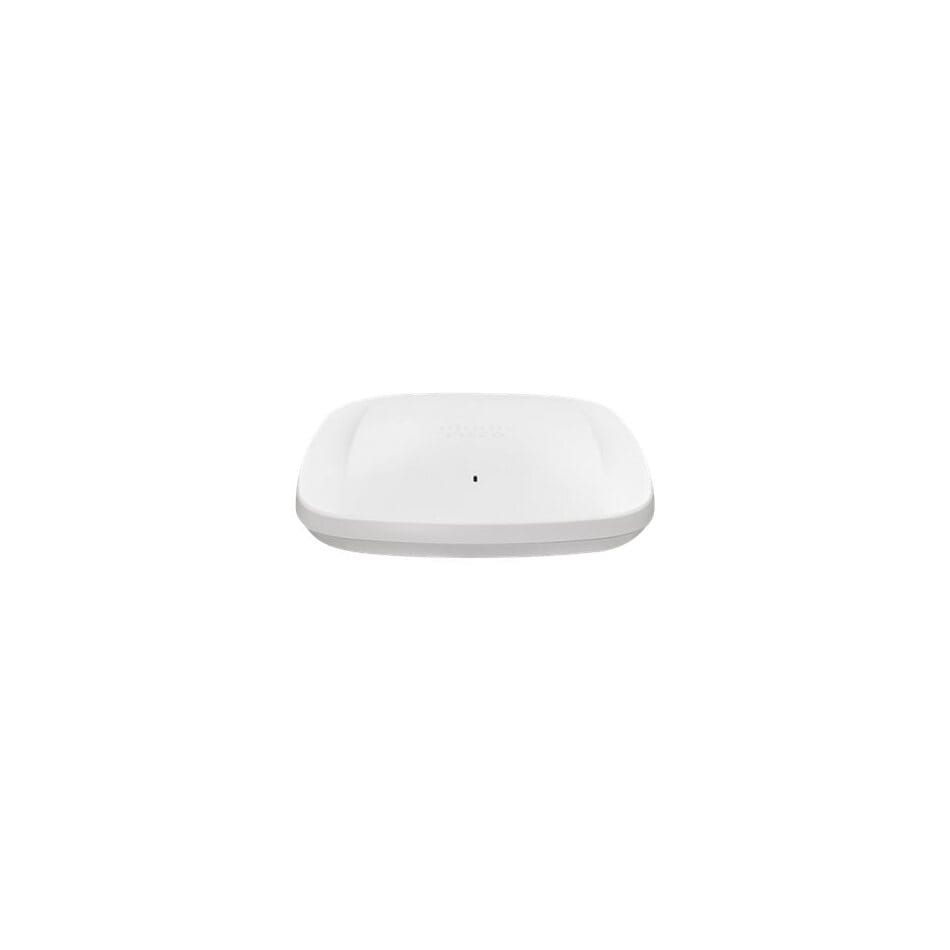

Meraki MR57-HW – Wireless Access Point – Wi-Fi 6E – cloud-managed

The Meraki MR57-HW represents a significant advancement in wireless access point technology, offering high performance and connectivity. Designed to support the Wi-Fi 6E standard, it provides high-speed, reliable wireless coverage across the 2.4 GHz, 5 GHz, and 6 GHz bands. With a maximum data rate of up to 8.35 Gbps, it is ideally suited for environments requiring high bandwidth and dense deployments.

Equipped with robust security features, including a range of encryption algorithms and wireless intrusion prevention systems, the MR57 ensures your network remains secure against threats. Its cloud-managed architecture simplifies deployment and management, allowing you to easily configure and monitor your network from anywhere.

The MR57 is not just powerful but also designed for efficiency, featuring technologies like MU-MIMO, OFDMA, and BSS Coloring to optimize network performance and user experience. Whether for business, education, or high-density environments, the Cisco Meraki MR57 offers a robust solution for modern wireless networking needs.

• Primary Information

  Product Description:	Cisco Meraki MR57 – wireless access point – Wi-Fi 6E – cloud-managed
  Device Type:	Wireless access point
  Form Factor:	External
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6E)
  Frequency Band:	2.4 GHz, 5 GHz, 6 GHz
  Performance:	Maximum data rate (2.4 GHz): 1147 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Maximum data rate (6 GHz): 4804 Mbps
  Included Accessories:	Mounting kit
  Power Over Ethernet (PoE) Supported:	PoE+
  Dimensions (WxDxH):	10.2 in x 10.2 in x 2.2 in
  Weight:	3.75 lbs

• General

  Device Type:	Wireless access point
  Width:	10.2 in
  Depth:	10.2 in
  Height:	2.2 in
  Weight:	3.75 lbs

• Networking

  Form Factor:	External
  Connectivity Technology:	Wireless
  Data Transfer Rate:	8.35 Gbps
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6E)
  Cloud-Managed:	Yes
  Frequency Band:	2.4 GHz, 5 GHz, 6 GHz
  Performance:	Maximum data rate (2.4 GHz): 1147 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Maximum data rate (6 GHz): 4804 Mbps
  Status Indicators:	Power, boot state, status
  Features:	Firmware upgradable, wall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), ceiling mountable, Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, guest access, 4×4:4 streams, packet aggregation, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), Target Wait Time (TWT), Transmit Beamforming, BSS Coloring
  Encryption Algorithm:	AES, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open, EAP-TLS, EAP-TTLS
  Authentication Method:	MS-CHAP v.2, Extensible Authentication Protocol (EAP)
  Compliant Standards:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax, Wi-Fi CERTIFIED 6E

• Antenna

  Antenna:

  Internal

• Expansion / Connectivity

  Interfaces:

  2 x 1/2.5/5GBase-T (PoE+) – RJ-45 ¦ 1 x USB 2.0 – Type A

• Miscellaneous

  Included Accessories:	Mounting kit
  MTBF:	998,440 hour(s)
  Compliant Standards:	CSA, VCCI, ICES-003, EN55024, CISPR 22, FCC Part 15 B, FCC Part 15 C, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, EN 62311, EN 300 328, EN 50385, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, NOM-208, NCC LP0002

• Power

  Power Over Ethernet (PoE) Supported:

  PoE+

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	5 – 95% (non-condensing)
