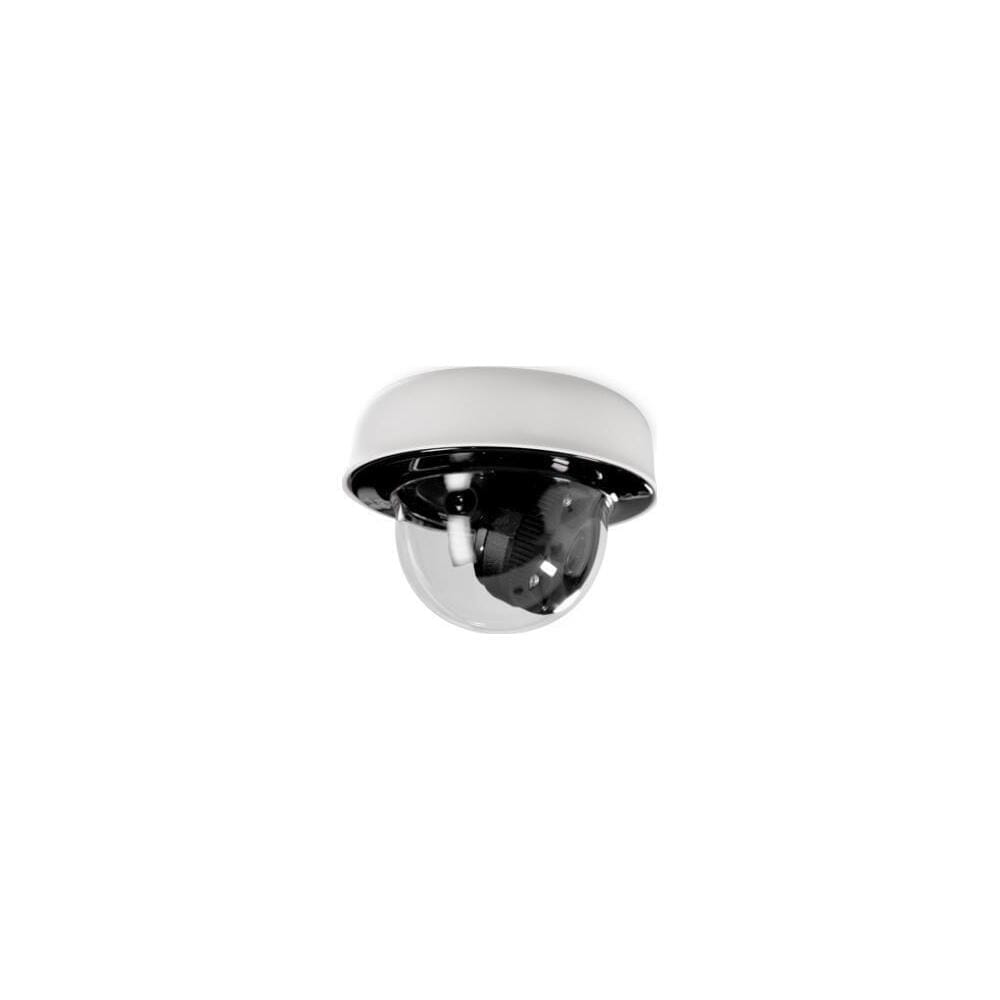

About the MV12W-HW
With a 114° horizontal, 61° vertical and 132° diagonal field of view, the MV12W-HW is the wide-angle MV12. One camera takes in a whole room or a long corridor where a narrow lens would need two. It records up to 1080p HD in H.264 at up to 20fps and is managed from the Meraki Dashboard.
Recording happens on the camera, on 256GB of high-endurance solid-state storage, with no network video recorder in the design. Power comes from one PoE switch port.
Mounting accessories such as MA-MNT-CLG-1 and MA-MNT-MV-30 are in the compatible parts list below, along with the MA-INJ-4 PoE injector for sites without a PoE switch.
What’s included
- MV12W-HW wide-angle camera, managed from the Meraki Dashboard
Sold separately
- A PoE port or a PoE injector such as the MA-INJ-4
- A ceiling, wall or pole mount where the install needs one
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
MV12W-HW specifications
| Type | Cloud-managed camera |
|---|---|
| Max video quality | Up to 1080p HD w/ H.264, up to 20fps |
| Field of view | Horizontal: 114° Vertical: 61° Diagonal: 132° |
| Onboard storage | 256GB high endurance solid state |
| Dimensions (dia × h) | 4.2 x 2.9 in / 106 x 74 mm |
| Power | 802.3af PoE |
| Management | Meraki Dashboard |
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-MV-LV | Low-voltage power adapter | $126.51 |
| PoE injectors | ||
| MA-INJ-4 | 802.3at PoE injector | $38.15 |
| Mounting kits | ||
| MA-MNT-CLG-1 | T-rail mount kit | $13.30 |
| Mounting arms | ||
| MA-MNT-MV-30 | Wall-mount arm | $126.51 |
Common questions
How wide is the MV12W-HW lens?
It covers 114° horizontally, 61° vertically and 132° diagonally.
Where does the MV12W-HW store video?
On the camera, on 256GB of high-endurance solid-state storage.
What resolution does the MV12W-HW record?
Up to 1080p HD in H.264, at up to 20fps.
