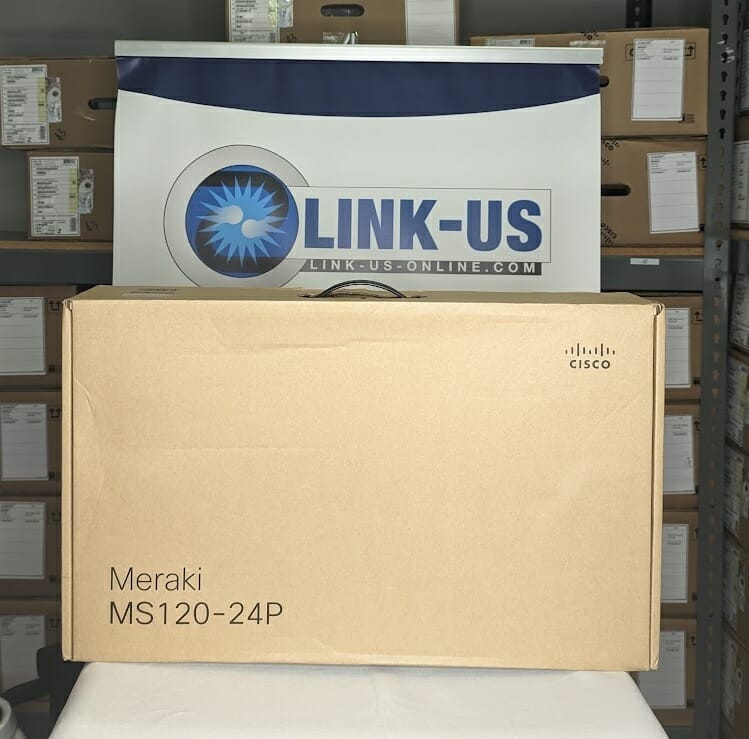

Meraki MS120-24P-HW MS120 Switch – 24x 1G, 4x 1G SFP
$390.00List price: $2,600.00
In stock (2) Ships today if ordered by 3 PM ET
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.
About the MS120-24P-HW
The MS120-24P-HW is the 24-port PoE model of the MS120 family. All 24 10/100/1000 RJ-45 ports deliver PoE/PoE+ from a shared 370 W budget, and four 1G SFP uplinks carry traffic upstream. Switching capacity is 56 Gbps.
It mounts in 1U and has an internal, fixed power supply, drawing 28 W idle and up to 425 W. It is managed from the Meraki Dashboard.
The MS120-24-HW is the same layout without PoE. For 48 PoE ports, the MS120-48LP-HW has the same 370 W budget and the MS120-48FP-HW has 740 W.
What’s included
- MS120-24P-HW switch with 24 PoE/PoE+ copper ports and four 1G SFP uplinks
- Internal, fixed power supply
Sold separately
- SFP modules for the uplinks, such as MA-SFP-1GB-SX or MA-SFP-1GB-LX10; all options are under Compatible parts below
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
MS120-24P-HW specifications
| Downlink ports | 24× 10/100/1000 RJ45 |
|---|---|
| Uplink ports | 4× 1G SFP |
| PoE budget | 370 W (PoE/PoE+) |
| Switching capacity | 56 Gbps |
| Power supply | Internal, fixed |
| Form factor | 1U rack mount; 1.73 x 17.32 x 10 in (4.4 x 44 x 25 cm) (H × W × D); 9.26 lb (4.20 kg) |
| Management | Meraki Dashboard |
| Power draw (idle / max) | 28 / 425 W |
Compare Meraki MS120 models
Swipe the table sideways to see every column.
| Model | Ports | Uplinks | PoE budget | Price |
|---|---|---|---|---|
| MS120-24P-HW this page | 24× 10/100/1000 RJ45 | 4× 1G SFP | 370 W | $390.00 · In stock |
| MS120-8FP-HW | 8× 10/100/1000 RJ45 | 2× 1G SFP | 124 W | $355.00 · In stock |
| MS120-8-HW | 8× 10/100/1000 RJ45 | 2× 1G SFP | None | $300.00 · In stock |
| MS120-8LP-HW | 8× 10/100/1000 RJ45 | 2× 1G SFP | 67 W | $451.00 |
| MS120-24-HW | 24× 10/100/1000 RJ45 | 4× 1G SFP | None | $835.00 · In stock |
| MS120-48LP-HW | 48× 10/100/1000 RJ45 | 4× 1G SFP | 370 W | $550.00 |
| MS120-48-HW | 48× 10/100/1000 RJ45 | 4× 1G SFP | None | $750.00 |
| MS120-48FP-HW | 48× 10/100/1000 RJ45 | 4× 1G SFP | 740 W | $1,140.00 |
Compatible parts
| Transceivers | ||
|---|---|---|
| MA-SFP-1GB-LX10 | 1 GbE SFP LX10 single-mode fiber module, 1000BASE-LX10, 10 km | $170.00 |
| MA-SFP-1GB-SX | 1 GbE SFP SX multimode fiber module, 1000BASE-SX | $252.69 |
| MA-SFP-1GB-TX | 1 GbE SFP RJ45 copper module, 1000BASE-T, 100 m | $219.49 |
Common questions
24 or 24P?
The MS120-24P-HW powers devices from a 370 W PoE budget; the MS120-24-HW has the same ports and uplinks with no PoE.
What fits the MS120-24P-HW uplinks?
1G SFP modules such as the MA-SFP-1GB-SX, MA-SFP-1GB-LX10 and MA-SFP-1GB-TX. The full list is under Compatible parts below.
