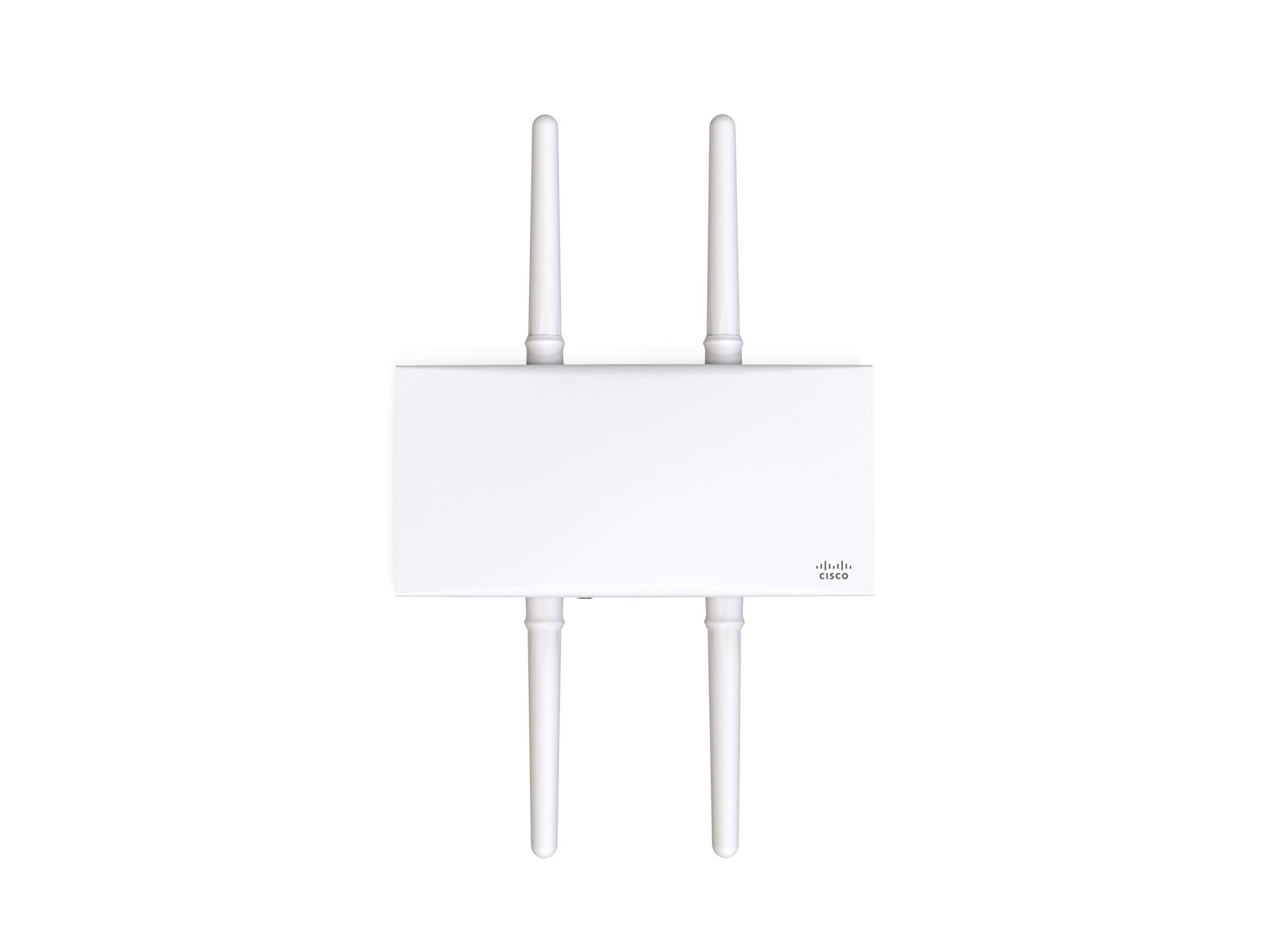

The Cisco Meraki MR76-HW stands out as a cutting-edge cloud-managed Wi-Fi 6 access point with a unique four-radio configuration. This 2×2 MU-MIMO device is specifically crafted for versatile use in challenging outdoor environments and industrial indoor settings. Offering superior performance, enterprise-grade security, and user-friendly management, the MR76 ensures seamless operation in demanding conditions.
Featuring a multigigabit uplink, the MR76 is future-proofed with the latest multigigabit switching technology. Enhanced mesh rate selection algorithms enhance connectivity and bridging performance between access points, ensuring a robust network infrastructure. The device includes a dedicated third radio for real-time WIDS/WIPS and automated RF optimization, along with an integrated fourth radio for Bluetooth Low Energy (BLE) scanning and Beaconing functionality.
Managed entirely in the cloud through the intuitive Meraki Dashboard, the MR76-HW provides a hassle-free experience without additional expenses or complexity. Its ruggedized enclosure, IP67 rating for dust and water resistance, and extended operating temperature range make it ideal for various general-purpose next-generation deployments. Whether handling high-density networking needs or bandwidth-intensive applications like voice and high-definition video, the MR76 excels as a reliable and powerful solution.
- Primary Information
Product Description: Cisco Meraki MR76 – wireless access point – Wi-Fi 6 – cloud-managed Device Type: Wireless access point Form Factor: External – outdoor Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax Frequency Band: 2.4 GHz, 5 GHz Included Accessories: Mounting kit Power Over Ethernet (PoE) Supported: PoE Dimensions (WxDxH): 11.8 in x 6 in x 2.2 in Weight: 2.95 lbs - General
Device Type: Wireless access point Ruggedized Design: Outdoor Width: 11.8 in Depth: 6 in Height: 2.2 in Weight: 2.95 lbs - Networking
Form Factor: External Connectivity Technology: Wireless Line Coding Format: 1024 QAM, OFDMA Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, 802.11ax Spread Spectrum Method: OFDMA Network / Transport Protocol: IPSec Cloud-Managed: Yes Frequency Band: 2.4 GHz, 5 GHz Status Indicators: Power, boot state, status Features: Firewall protection, VPN support, firmware upgradable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), DiffServ Code Point (DSCP) support, MU-MIMO technology, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO technology, opportunistic key caching (OKC), 2×2:2 MU-MIMO technology, packet aggregation, Target Wait Time (TWT) Encryption Algorithm: AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open Authentication Method: MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax - Antenna
Antenna: External - Expansion / Connectivity
Interfaces: 1 x 1000Base-T (PoE) – RJ-45 - Miscellaneous
Included Accessories: Mounting kit Compliant Standards: CSA, VCCI, ICES-003, EN55024, CISPR 22, RSS-102, FCC Part 15 C, UL 2043, RoHS, FCC Part 2, AS/NZS 4268, FCC Part 15 E, IP67, EN 62311, NCC, EN 300 328, EN 50385, LP0002, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, EN 55032, AS/NZS 2772, CB 60950, CB 62368, IFT, NOM-208 - Power
Power Over Ethernet (PoE) Supported: PoE Power Consumption Operational: 15 Watt - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 – 95% (non-condensing) - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43222631
