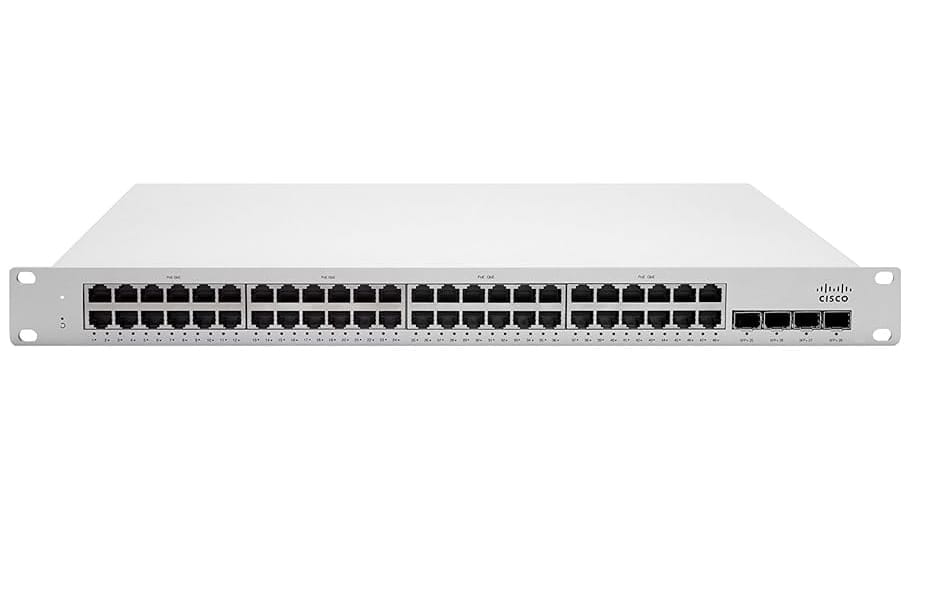

Meraki MS225-48-HW MS225 Switch – 48x 1G, 4x 10G SFP+

About the MS225-48-HW

Built for data only, the MS225-48-HW has 48 copper ports at 10/100/1000 with no PoE and four 10G SFP+ uplinks. It is a 1U rack-mount switch managed from the Meraki Dashboard, with static routing at Layer 3.

Without PoE it draws little power: 25 W idle and 42 W at most. The power supply is internal and fixed, and an optional external RPS adds backup power. Switching capacity is 176 Gbps.

Two dedicated stack ports give 80 Gbps of stacking bandwidth. For the newer model in this line, see the MS150-48T-4X.

What’s included

• MS225-48-HW switch with 48 copper ports and four 10G SFP+ uplinks
• Internal, fixed power supply

Sold separately

• SFP+ optics or twinax for the uplinks, such as MA-SFP-10GB-SR, MA-SFP-10GB-LRM or MA-CBL-TA-3M; all options are under Compatible parts below
• Stacking cables (MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M) if you stack it

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

MS225-48-HW specifications

Downlink ports	48× 10/100/1000 RJ45
Uplink ports	4× 10G SFP+
PoE budget	None (no PoE)
Stacking	Yes, 80 Gbps stacking bandwidth (2 dedicated stack ports)
Switching capacity	176 Gbps
Power supply	Internal, fixed; optional external RPS
Form factor	1U rack mount; 1.72 x 19 x 13.38in (4.38 x 48.46 x 34cm) (H × W × D); 8.78 lb (3.98 kg)
Management	Meraki Dashboard
Power draw (idle / max)	25 / 42 W
Layer 3 routing	Static Routing

Compare Meraki MS225 models

Swipe the table sideways to see every column.

Model	Ports	PoE budget	Price
MS225-48-HW this page	48× 10/100/1000 RJ45	None	$7,000.00
MS225-48FP-HW	48× 10/100/1000 RJ45	740 W	$1,350.00 · In stock
MS225-48LP-HW	48× 10/100/1000 RJ45	370 W	$750.00 · In stock
MS225-24P-HW	24× 10/100/1000 RJ45	370 W	$1,320.00

Compatible parts

Stack cables
MA-CBL-40G-50CM	40G QSFP+ stacking cable, 0.5 m	$49.99 · In stock
MA-CBL-40G-1M	40G QSFP+ stacking cable, 1 m	$65.00
MA-CBL-40G-3M	40G QSFP+ stacking cable, 3 m	$166.70
Transceivers
MA-SFP-1GB-LX10	1 GbE SFP LX10 single-mode fiber module, 1000BASE-LX10, 10 km	$170.00
MA-SFP-1GB-SX	1 GbE SFP SX multimode fiber module, 1000BASE-SX	$252.69
MA-SFP-1GB-TX	1 GbE SFP RJ45 copper module, 1000BASE-T, 100 m	$219.49
MA-SFP-10GB-ER	10 GbE SFP+ ER fiber module, 10GBASE-ER, 40 km	$5,053.86
MA-SFP-10GB-LR	10 GbE SFP+ LR single-mode fiber module, 10GBASE-LR, 10 km	$2,019.02
MA-SFP-10GB-LRM	10 GbE SFP+ LRM multimode fiber module, 10GBASE-LRM, 220 m	$502.86
MA-SFP-10GB-SR	10 GbE SFP+ SR multimode fiber module, 10GBASE-SR	$502.86
MA-SFP-10GB-ZR	10 GbE SFP+ ZR single-mode fiber module, 10GBASE-ZR, 80 km	$8,086.18
Twinax cables
MA-CBL-TA-1M	10 GbE SFP+ twinax direct-attach cable, 1 m	$85.00 · In stock
MA-CBL-TA-3M	10 GbE SFP+ twinax direct-attach cable, 3 m	$83.35
Rack mount kits
MA-RCKMNT	Rack mount brackets	$171.64
Mounting brackets
MA-MNT-MID-1	Mid-mount mounting bracket	$37.90

Newer model: MS150-48T-4X

Common questions

Does the MS225-48-HW support PoE?

No. None of its 48 copper ports deliver PoE, which keeps maximum draw at 42 W.

What can I plug into the MS225-48-HW uplinks?

The four SFP+ ports take 10G optics, twinax cables or 1G SFP modules such as the MA-SFP-1GB-SX and MA-SFP-1GB-LX10.

How do I stack the MS225-48-HW?

Connect its two dedicated stack ports with MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M cables for 80 Gbps of stacking bandwidth.
