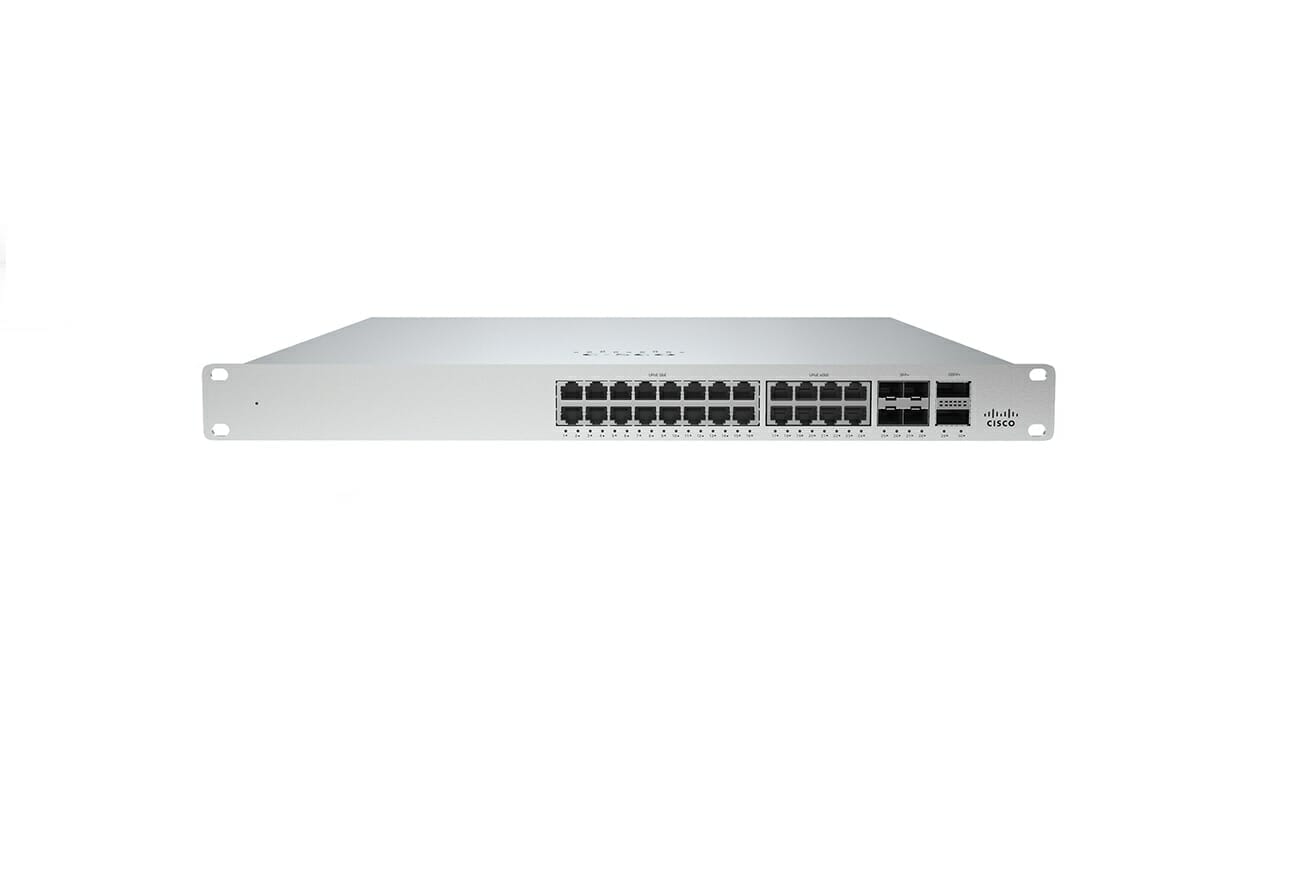

Meraki MS355-24X-HW MS355 Switch – 16x 1G + 8x 10G mGig, 4x 10G SFP+

About the MS355-24X-HW

Two kinds of copper port share the MS355-24X-HW: 16 at 10/100/1000 and eight multigigabit ports at 100M, 1G, 2.5G, 5G or 10G. On top of that it has four 10G SFP+ and two 40G QSFP+ uplinks, a 740 W UPOE budget and 352 Gbps of switching capacity in 1U.

One 1025 W AC power supply, the MA-PWR-1025WAC, is included, and the second hot-swappable bay takes another for two power supplies. Idle draw is 110 W and maximum draw is 1793 W. Managed from the Meraki Dashboard.

Two dedicated stack ports give 400 Gbps of stacking bandwidth over the stacking cables listed under Sold separately. The C9300X-24HX-M is the newer model in this line.

What’s included

• MS355-24X-HW switch with 16 gigabit ports, eight multigigabit ports, four 10G SFP+ and two 40G QSFP+ uplinks
• One MA-PWR-1025WAC power supply

Sold separately

• A second MA-PWR-1025WAC power supply for redundancy
• QSFP+ optics for the 40G uplinks, such as MA-QSFP-40G-SR4 or MA-QSFP-40G-LR4, and SFP+ optics such as MA-SFP-10GB-SR; all options are under Compatible parts below
• Stacking cables (MA-CBL-100G-50CM, MA-CBL-100G-1M or MA-CBL-100G-3M) if you stack it

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

MS355-24X-HW specifications

Downlink ports	16× 10/100/1000 RJ45; 8× 100M/1G/2.5G/5G/10G multigigabit RJ45
Uplink ports	4× 10G SFP+; 2× 40G QSFP+
PoE budget	740 W (UPOE)
Stacking	Yes, 400 Gbps stacking bandwidth (2 dedicated stack ports)
Switching capacity	352 Gbps
Power supply	1025 W AC; hot-swappable, dual supplies supported
Form factor	1U rack mount; 1.7 x 19.1 x 20 in / 4.37 x 48.46 x 51.66 cm (H × W × D); 15.34 lbs / 6.96 kg
Management	Meraki Dashboard
Power supply bays	Two, hot-swappable
Power draw (idle / max)	110 W / 1793 W

Compatible parts

Power supplies
MA-PWR-1025WAC	1025 W AC power supply	$915.10
Stack cables
MA-CBL-100G-50CM	100G QSFP28 stacking cable, 0.5 m	$55.57
MA-CBL-100G-1M	100G QSFP28 stacking cable, 1 m	$111.13
MA-CBL-100G-3M	100G QSFP28 stacking cable, 3 m	$166.66
Transceivers
MA-QSFP-40G-CSR4	40 GbE QSFP+ CSR4 multimode fiber module, 40GBASE-CSR4, 400 m	$1,664.24
MA-QSFP-40G-LR4	40 GbE QSFP+ LR4 single-mode fiber module, 40GBASE-LR4, 10 km	$5,508.71
MA-QSFP-40G-SR-BD	40 GbE QSFP+ SR-BD multimode fiber module, 40GBASE-SR-BD, 150 m	$553.40
MA-QSFP-40G-SR4	40 GbE QSFP+ SR4 multimode fiber module, 40GBASE-SR4, 150 m	$1,664.24
MA-SFP-1GB-LX10	1 GbE SFP LX10 single-mode fiber module, 1000BASE-LX10, 10 km	$170.00
MA-SFP-1GB-SX	1 GbE SFP SX multimode fiber module, 1000BASE-SX	$252.69
MA-SFP-1GB-TX	1 GbE SFP RJ45 copper module, 1000BASE-T, 100 m	$219.49
MA-SFP-10GB-ER	10 GbE SFP+ ER fiber module, 10GBASE-ER, 40 km	$5,053.86
MA-SFP-10GB-LR	10 GbE SFP+ LR single-mode fiber module, 10GBASE-LR, 10 km	$2,019.02
MA-SFP-10GB-LRM	10 GbE SFP+ LRM multimode fiber module, 10GBASE-LRM, 220 m	$502.86
MA-SFP-10GB-SR	10 GbE SFP+ SR multimode fiber module, 10GBASE-SR	$502.86
MA-SFP-10GB-ZR	10 GbE SFP+ ZR single-mode fiber module, 10GBASE-ZR, 80 km	$8,086.18
Twinax cables
MA-CBL-TA-1M	10 GbE SFP+ twinax direct-attach cable, 1 m	$85.00 · In stock
MA-CBL-TA-3M	10 GbE SFP+ twinax direct-attach cable, 3 m	$83.35

Newer model: C9300X-24HX-M. Ask us for a quote on it.

Common questions

How many multigigabit ports does the MS355-24X-HW have?

Eight, each running at up to 10G. The other 16 copper ports run at 10/100/1000.

What uplinks does the MS355-24X-HW have?

Four 10G SFP+ ports and two 40G QSFP+ ports, so you can use either speed upstream.

What is the PoE budget on the MS355-24X-HW?

740 W of UPOE.
