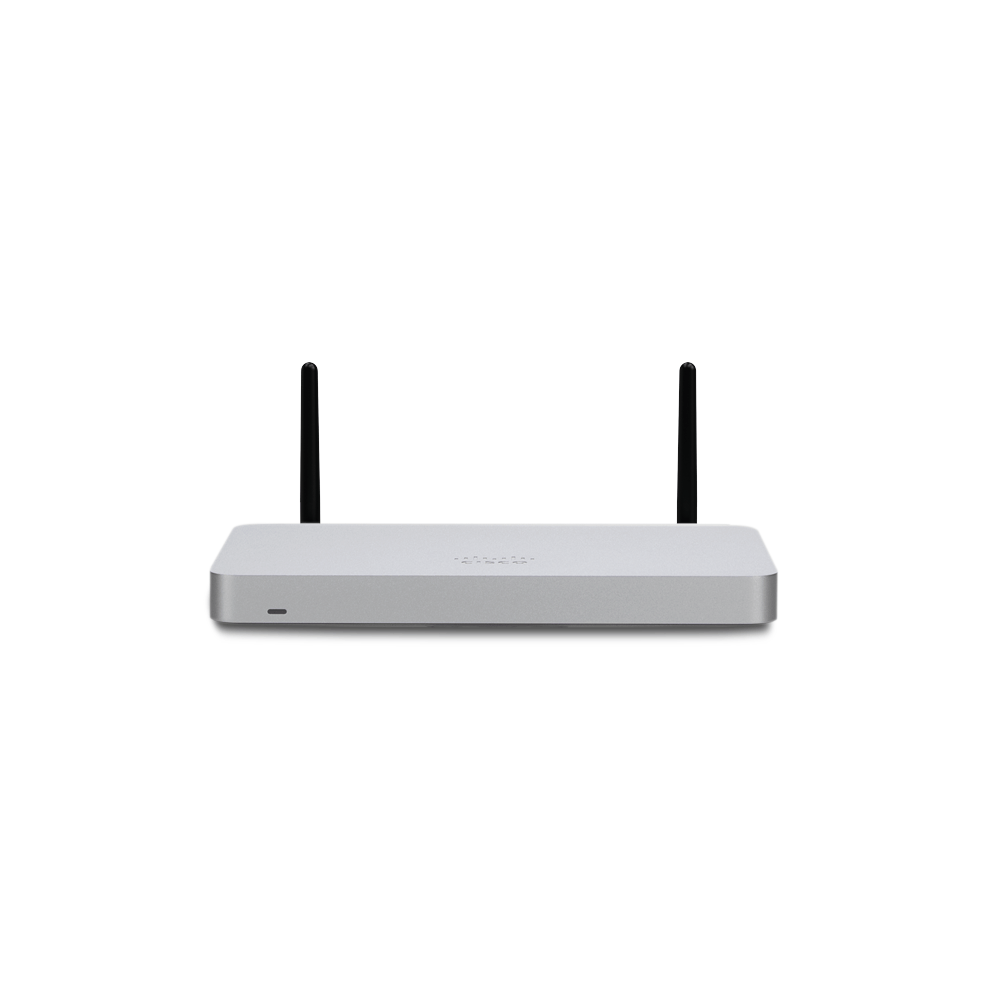

About the MX68W-HW
The MX68W-HW is the MX68 with built-in Wi-Fi: a desktop or wall-mount Meraki security and SD-WAN appliance for a small branch with up to 50 devices, managed from the Meraki Dashboard. It handles 700 Mbps of firewall traffic, 400 Mbps with advanced security services on, and up to 50 site-to-site VPN tunnels at 400 Mbps.
Two 1GE WAN ports let it run two internet links. Its ten 1GE LAN ports include two PoE+ (802.3at) ports at up to 30 W each, and the radio is 802.11a/n/ac on 5 GHz plus 802.11b/g/n on 2.4 GHz, 2×2 MU-MIMO, 1.3 Gbps aggregate. It runs from a 100 W external power adapter.
The MX68-HW is the same appliance without Wi-Fi; the MX67W-HW is the smaller Wi-Fi model with one WAN port and four LAN ports.
What’s included
- MX68W-HW security and SD-WAN appliance with integrated Wi-Fi, managed from the Meraki Dashboard
- Two external dual-band dipole antennas
Sold separately
- A replacement MA-PWR-100WAC power adapter, if you need a spare
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
MX68W-HW specifications
| Throughput and sizing | Firewall 700 Mbps; advanced security services 400 Mbps; site-to-site VPN 400 Mbps (up to 50 tunnels); sized for small branch with up to 50 devices |
|---|---|
| WAN ports | 2× 1GE RJ-45 |
| LAN ports | 10× 1GE RJ-45 (2× PoE+) |
| Cellular and Wi-Fi | Integrated Wi-Fi: 802.11a/n/ac 5 GHz + 802.11b/g/n 2.4 GHz, 1.3 Gbps aggregate, 2x2 MU-MIMO |
| Power | 100 W DC external power adapter; load 19 W idle / 87 W max |
| Form factor | Desktop or wall mount; 11.2 × 6.8 × 1.1 in. (284 × 172 × 27 mm) (w × d × h); 2.55 lb (1.16 kg) |
| Management | Meraki Dashboard (cloud-managed) |
| PoE ports | 2× PoE+ (802.3at) LAN ports; 30 W maximum per port |
Compare Meraki MX models
Swipe the table sideways to see every column.
| Model | Firewall | WAN | LAN | Wi-Fi | Price |
|---|---|---|---|---|---|
| MX68W-HW this page | 700 Mbps | 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | Yes, 802.11a/n/ac | $455.00 |
| MX67-HW | 700 Mbps | 1× 1GE RJ-45 | 4× 1GE RJ-45 | No | $250.00 · In stock |
| MX67W-HW | 700 Mbps | 1× 1GE RJ-45 | 4× 1GE RJ-45 | Yes, 802.11a/n/ac | $675.00 · In stock |
| MX68-HW | 700 Mbps | 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | No | $455.00 · In stock |
| MX75-HW | 1 Gbps | 1× 1GE SFP + 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | No | $1,325.00 |
| MX85-HW | 1 Gbps | 2× 1GE SFP + 2× 1GE RJ-45 (1× PoE+) | 8× 1GE RJ-45 + 2× 1GE SFP | No | $1,785.42 · In stock |
| MX95-HW | 3 Gbps | 2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+) | 4× 1GE RJ-45 + 2× 10GE SFP+ | No | $2,365.00 |
| MX105-HW | 5 Gbps | 2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+) | 4× 1GE RJ-45 + 2× 10GE SFP+ | No | $6,149.99 |
| MX250-HW | 7.5 Gbps | 2× 10GE SFP+ | 8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+ | No | $7,846.43 |
| MX450-HW | 10 Gbps | 2× 10GE SFP+ | 8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+ | No | $7,350.42 · In stock |
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-100WAC | Replacement power adapter, 100 W | $97.75 |
| Antennas | ||
| MA-ANT-MX | Pair of external dual-band dipole antennas, RP-SMA | $12.23 |
Common questions
Can the MX68W power an access point?
Yes. Two LAN ports are PoE+ (802.3at), up to 30 W each.
Does it support two internet connections?
Yes. It has two 1GE WAN ports.
