Meraki MX450-HW Security & SD-WAN Appliance – 10 Gbps Firewall, 24 LAN Ports

Name: Meraki MX450-HW Security Appliance, 10 Gbps Firewall
Brand: Meraki
SKU: MX450-HW
Price: 7350.42 USD
Availability: InStock

$7,350.42List price: $15,767.71

In stock (1) Ships today if ordered by 3 PM ET

ConditionNew

Warranty90 days

ShippingFree (US)

ReturnsRMA required · See policy

SKU: MX450-HW Categories: Meraki, Firewalls

Description

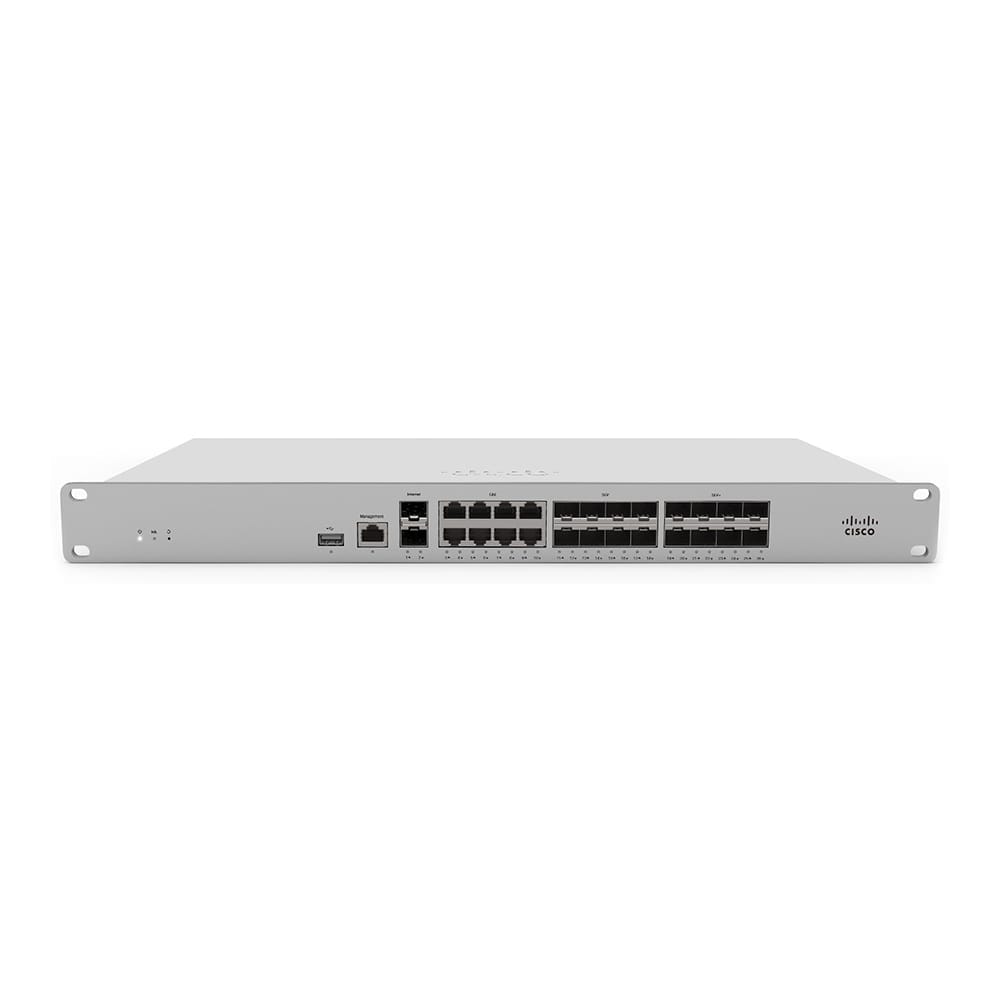

About the MX450-HW

The MX450-HW is a 1RU Meraki security and SD-WAN appliance for a campus or for use as a VPN concentrator, sized for up to 10,000 devices and managed from the Meraki Dashboard. It handles 10 Gbps of firewall traffic, 7 Gbps with advanced security services on, and 6.5 Gbps of site-to-site VPN across up to 5,000 tunnels.

Ports are built for a data center or campus core: two 10GE SFP+ WAN ports, and on the LAN side eight 1GE RJ-45, eight 1GE SFP and eight 10GE SFP+ ports. It runs on two 250 W modular power supplies.

For a large branch rather than a campus, the MX105-HW handles 5 Gbps in the same 1RU size.

What’s included

MX450-HW security and SD-WAN appliance, managed from the Meraki Dashboard

Sold separately

SFP and SFP+ transceivers, such as the MA-SFP-10GB-SR or MA-SFP-1GB-SX
10G twinax cables, such as the MA-CBL-TA-1M
Spare MA-PWR-250WAC power supply or MA-FAN-18K fan

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

MX450-HW specifications

Throughput and sizing	Firewall 10 Gbps; advanced security services 7 Gbps; site-to-site VPN 6.5 Gbps (up to 5,000 tunnels); sized for campus or VPN concentrator with up to 10,000 devices
WAN ports	2× 10GE SFP+
LAN ports	8× 1GE RJ-45; 8× 1GE SFP; 8× 10GE SFP+
Power	2× 250 W modular PSUs, 100–220 V (50/60 Hz); load 105 W idle / 190 W max
Form factor	1RU; 19 × 17.3 × 1.75 in. (483 × 440 × 44 mm) (w × d × h); 16 lb (7.3 kg)
Management	Meraki Dashboard (cloud-managed)

Compare Meraki MX models

Swipe the table sideways to see every column.

Model	Firewall	WAN	LAN	Wi-Fi	Price
MX450-HW this page	10 Gbps	2× 10GE SFP+	8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+	No	$7,350.42 · In stock
MX67-HW	700 Mbps	1× 1GE RJ-45	4× 1GE RJ-45	No	$250.00 · In stock
MX67W-HW	700 Mbps	1× 1GE RJ-45	4× 1GE RJ-45	Yes, 802.11a/n/ac	$675.00 · In stock
MX68-HW	700 Mbps	2× 1GE RJ-45	10× 1GE RJ-45 (2× PoE+)	No	$455.00 · In stock
MX68W-HW	700 Mbps	2× 1GE RJ-45	10× 1GE RJ-45 (2× PoE+)	Yes, 802.11a/n/ac	$455.00
MX75-HW	1 Gbps	1× 1GE SFP + 2× 1GE RJ-45	10× 1GE RJ-45 (2× PoE+)	No	$1,325.00
MX85-HW	1 Gbps	2× 1GE SFP + 2× 1GE RJ-45 (1× PoE+)	8× 1GE RJ-45 + 2× 1GE SFP	No	$1,785.42 · In stock
MX95-HW	3 Gbps	2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+)	4× 1GE RJ-45 + 2× 10GE SFP+	No	$2,365.00
MX105-HW	5 Gbps	2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+)	4× 1GE RJ-45 + 2× 10GE SFP+	No	$6,149.99
MX250-HW	7.5 Gbps	2× 10GE SFP+	8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+	No	$7,846.43

Compatible parts

Power supplies
MA-PWR-250WAC	250 W AC power supply unit	$284.00
Transceivers
MA-SFP-1GB-SX	1 GbE SFP SX fiber module, 1000BASE-SX, 550 m	$252.69
MA-SFP-1GB-TX	1 GbE SFP RJ45 copper module, 1000BASE-T	$219.49
MA-SFP-10GB-LR	10 GbE SFP+ LR single-mode fiber module, 10 km	$2,019.02
MA-SFP-10GB-SR	10 GbE SFP+ SR multimode fiber	$502.86
Twinax cables
MA-CBL-TA-1M	10 GbE SFP+ twinax cable, 1 m	$85.00 · In stock
MA-CBL-TA-3M	10 GbE SFP+ twinax cable, 3 m	$83.35
Fans
MA-FAN-18K	18K RPM system fan	$157.77
