Meraki MX67W-HW Security & SD-WAN Appliance – 700 Mbps Firewall, 4 LAN Ports, Wi-Fi
$675.00List price: $1,271.61
In stock (2) Ships today if ordered by 3 PM ET
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.
About the MX67W-HW

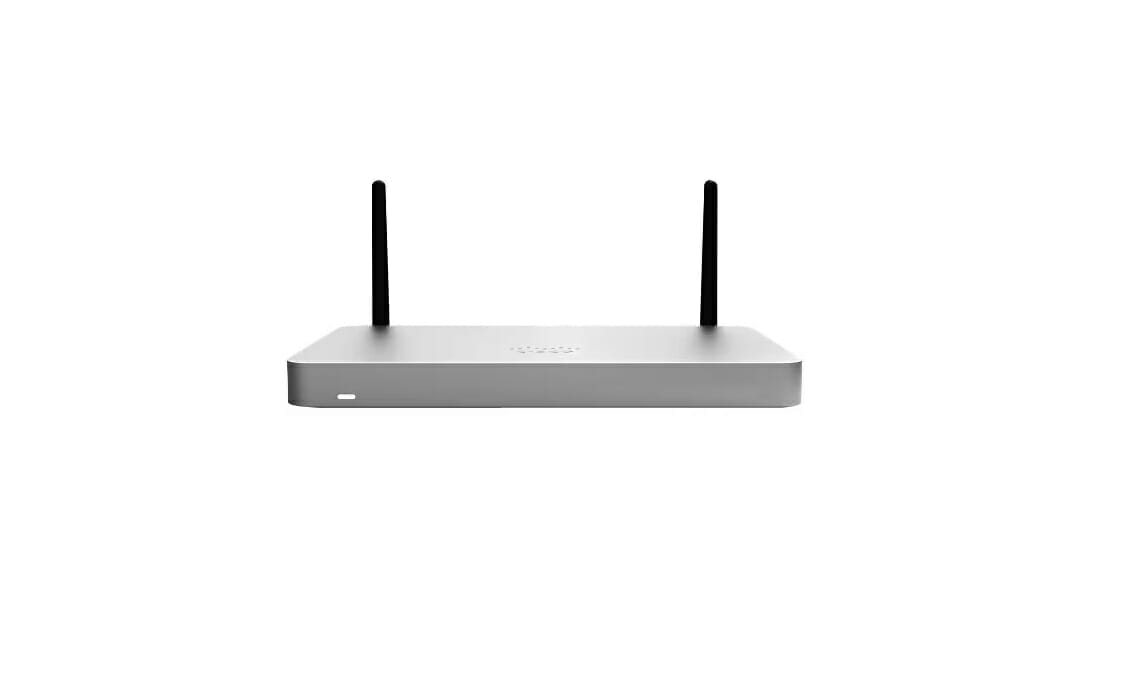

The MX67W-HW is the MX67 with a wireless access point built in. It is a desktop or wall-mount Meraki security and SD-WAN appliance for a small branch with up to 50 devices, managed from the Meraki Dashboard, with 700 Mbps of firewall throughput and 400 Mbps with advanced security services on.
The Wi-Fi is 802.11a/n/ac on 5 GHz and 802.11b/g/n on 2.4 GHz, 2×2 MU-MIMO, at 1.3 Gbps aggregate. That lets one box cover the firewall, VPN and wireless in a small office. Wired, it has one 1GE WAN port and four 1GE LAN ports, and it runs from a 30 W external power adapter.
The MX67-HW is the same appliance without Wi-Fi. For two WAN ports and PoE+ with Wi-Fi, see the MX68W-HW.
What’s included
- MX67W-HW security and SD-WAN appliance with integrated Wi-Fi, managed from the Meraki Dashboard
- Two external dual-band dipole antennas
Sold separately
- A replacement MA-PWR-30WAC power adapter, if you need a spare
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
MX67W-HW specifications
| Throughput and sizing | Firewall 700 Mbps; advanced security services 400 Mbps; site-to-site VPN 400 Mbps (up to 50 tunnels); sized for small branch with up to 50 devices |
|---|---|
| WAN ports | 1× 1GE RJ-45 |
| LAN ports | 4× 1GE RJ-45 |
| Cellular and Wi-Fi | Integrated Wi-Fi: 802.11a/n/ac 5 GHz + 802.11b/g/n 2.4 GHz, 1.3 Gbps aggregate, 2x2 MU-MIMO |
| Power | External power adapter (MA-PWR-30WAC); load 15 W idle / 23 W max |
| Form factor | Desktop or wall mount; 9.4 × 6.5 × 1.1 in. (239 × 164 × 27 mm) (w × d × h); 1.84 lb (0.83 kg) |
| Management | Meraki Dashboard (cloud-managed) |
Compare Meraki MX models
Swipe the table sideways to see every column.
| Model | Firewall | WAN | LAN | Wi-Fi | Price |
|---|---|---|---|---|---|
| MX67W-HW this page | 700 Mbps | 1× 1GE RJ-45 | 4× 1GE RJ-45 | Yes, 802.11a/n/ac | $675.00 · In stock |
| MX67-HW | 700 Mbps | 1× 1GE RJ-45 | 4× 1GE RJ-45 | No | $250.00 · In stock |
| MX68-HW | 700 Mbps | 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | No | $455.00 · In stock |
| MX68W-HW | 700 Mbps | 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | Yes, 802.11a/n/ac | $455.00 |
| MX75-HW | 1 Gbps | 1× 1GE SFP + 2× 1GE RJ-45 | 10× 1GE RJ-45 (2× PoE+) | No | $1,325.00 |
| MX85-HW | 1 Gbps | 2× 1GE SFP + 2× 1GE RJ-45 (1× PoE+) | 8× 1GE RJ-45 + 2× 1GE SFP | No | $1,785.42 · In stock |
| MX95-HW | 3 Gbps | 2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+) | 4× 1GE RJ-45 + 2× 10GE SFP+ | No | $2,365.00 |
| MX105-HW | 5 Gbps | 2× 10GE SFP+ + 2× 2.5GE RJ-45 (1× PoE+) | 4× 1GE RJ-45 + 2× 10GE SFP+ | No | $6,149.99 |
| MX250-HW | 7.5 Gbps | 2× 10GE SFP+ | 8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+ | No | $7,846.43 |
| MX450-HW | 10 Gbps | 2× 10GE SFP+ | 8× 1GE RJ-45 + 8× 1GE SFP + 8× 10GE SFP+ | No | $7,350.42 · In stock |
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-30WAC | Replacement power adapter, 30 W | $39.71 |
| Antennas | ||
| MA-ANT-MX | Pair of external dual-band dipole antennas, RP-SMA | $12.23 |
Common questions
What Wi-Fi does the MX67W have?
Dual-band: 802.11a/n/ac on 5 GHz and 802.11b/g/n on 2.4 GHz, 2×2 MU-MIMO, 1.3 Gbps aggregate.
MX67W or MX68W?
Same firewall and Wi-Fi. The MX68W-HW adds a second WAN port, more LAN ports and two PoE+ ports.
