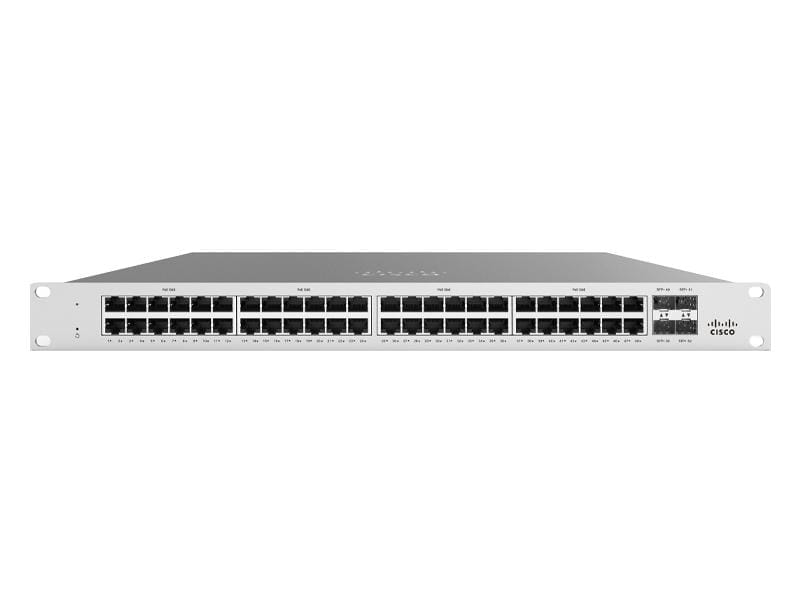

MS120-48LP-HW

The Meraki MS120-48LP-HW is a cloud-managed network switch designed to meet the networking needs of modern businesses. With 48 ports available, it offers extensive connectivity options for various devices within an enterprise environment. The “LP” designation signifies that the switch supports Power over Ethernet (PoE) and has a lower power budget compared to the higher wattage “FP” models, making it suitable for devices with lower power requirements such as IP phones and basic cameras. Managed through the user-friendly Meraki dashboard, this switch provides centralized control, allowing for easy configuration, monitoring, and troubleshooting. It is part of Cisco Meraki’s comprehensive suite of cloud-managed networking solutions, emphasizing simplicity and scalability for efficient and secure network management.

The Meraki MS120-48LP-HW requires a license.

• Primary Information

  Product Description:	Cisco Meraki Cloud Managed MS120-48LP – switch – 48 ports – managed – rack-mountable
  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	48 x 10/100/1000 (PoE) + 4 x Gigabit SFP
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	370 W
  Performance:	Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
  Capacity:	VLANs supported: 4094 ¦ MAC forwarding entries: 32000
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Features:	Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
  Power:	AC 120/230 V (47 – 63 Hz)
  Dimensions (WxDxH):	17.3 in x 13.4 in x 1.7 in
  Weight:	9.63 lbs

• General

  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	Desktop, rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	48 x 10/100/1000 (PoE) + 4 x Gigabit SFP
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	370 W
  Performance:	Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
  Capacity:	VLANs supported: 4094 ¦ MAC forwarding entries: 32000
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Authentication Method:	RADIUS
  Features:	Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)

• Expansion / Connectivity

  Interfaces:

  48 x 1000Base-T RJ-45 PoE ¦ 4 x 1000Base-T SFP

• Power

  Power Device:	Internal power supply
  Voltage Required:	AC 120/230 V (47 – 63 Hz)

• Miscellaneous

  Rack Mounting Kit:	Included
  MTBF:	438,920 hours
  Compliant Standards:	CSA, IC, FCC, RoHS, RCM

• Dimensions & Weight

  Width:	17.3 in
  Depth:	13.4 in
  Height:	1.7 in
  Weight:	9.63 lbs

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	5 – 95% (non-condensing)
