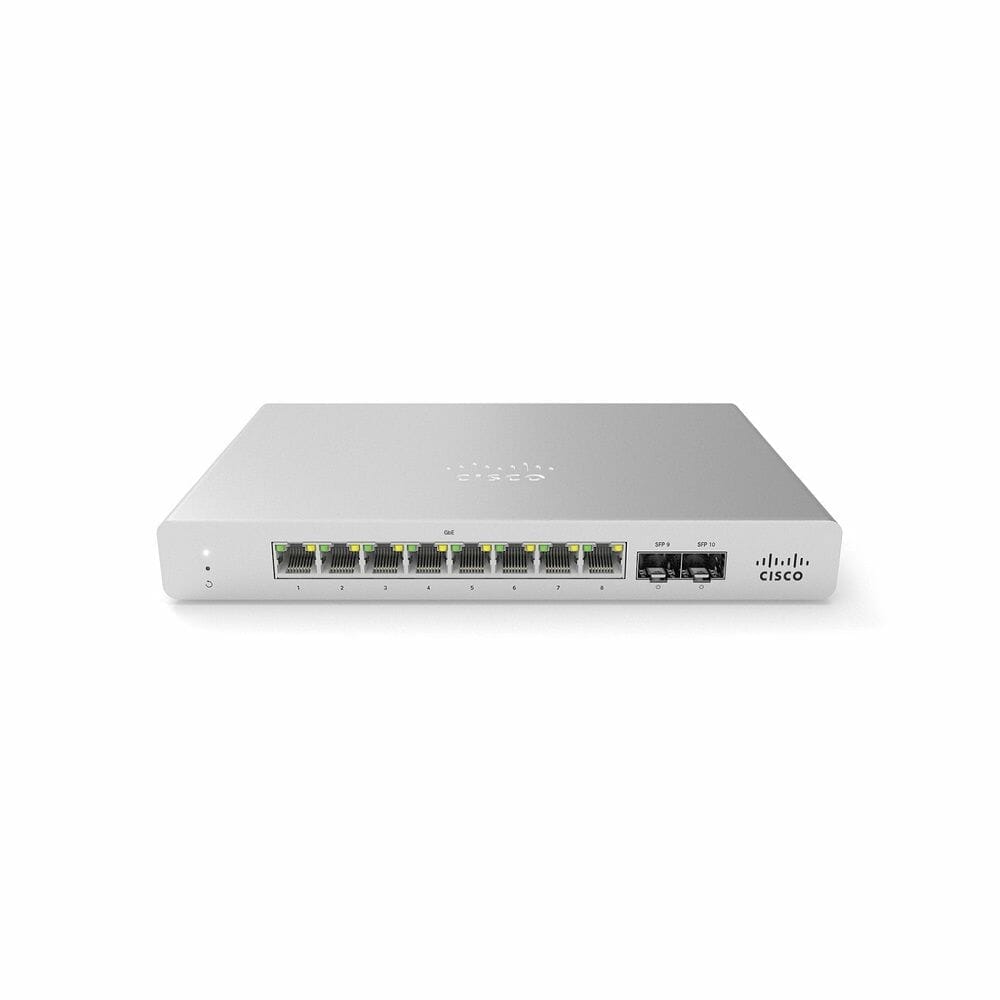

The Cisco MS120-8LP-HW is a compact and cost-effective switch designed for small and medium-sized businesses. It is part of the Cisco MS120 series of switches, which offer a range of features to help businesses improve network performance and efficiency.
The MS120-8LP-HW is a compact, low-power switch that can be easily mounted on a wall or desk. It has eight Gigabit Ethernet ports and supports Power over Ethernet (PoE). This allows businesses to easily connect and power devices such as IP phones, wireless access points, and security cameras.
In addition to its Ethernet connectivity, the MS120-8LP-HW is a cloud managed switch, allowing you to control your network anywhere in the world. This can help businesses improve security and simplify administration.
Overall, the Cisco MS120-8LP-HW is an affordable and versatile switch that is ideal for small and medium-sized businesses looking to improve their network performance and efficiency.
MAIN SPECIFICATIONS
Product Description |
Cisco Meraki Cloud Managed MS120-8 – switch – 8 ports – managed |
Device Type |
Switch – 8 ports – managed |
Enclosure Type |
1U |
Subtype |
Gigabit Ethernet |
Ports |
8 x 10/100/1000 (PoE ) 2 x Gigabit SFP |
Power Over Ethernet (PoE) |
PoE |
PoE Budget |
67 W |
Performance |
Switching capacity: 20 Gbps ¦ Forwarding rate: 14.88 Mpps |
Capacity |
VLANs supported: 4094 ¦ MAC forwarding entries: 16000 |
Jumbo Frame Support |
9600 bytes |
Remote Management Protocol |
SNMP |
Features |
Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, fanless, DHCP client, security lock slot (cable lock sold separately), crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation |
Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
Power |
AC 120/230 V (47 – 63 Hz) |
Dimensions (WxDxH) |
8.7 in x 5.9 in x 1.1 in |
Weight |
2.76 lbs |
|
MS120-8LP-HW – EXTENDED SPECIFICATIONS
General |
Switch – 8 ports – managed |
Desktop, wall-mountable 1U |
Gigabit Ethernet |
8 x 10/100/1000 (PoE ) 2 x Gigabit SFP |
PoE |
67 W |
Switching capacity: 20 Gbps ¦ Forwarding rate: 14.88 Mpps |
VLANs supported: 4094 ¦ MAC forwarding entries: 16000 |
9600 bytes |
SNMP |
RADIUS |
Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, fanless, DHCP client, security lock slot (cable lock sold separately), crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
|
Expansion / Connectivity |
8 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-T SFP |
|
Power |
External power adapter |
AC 120/230 V (47 – 63 Hz) |
|
Miscellaneous |
Included |
837,035 hours |
CSA, IC, FCC, RoHS, RCM |
|
Dimensions & Weight |
8.7 in |
5.9 in |
1.1 in |
2.76 lbs |
|
