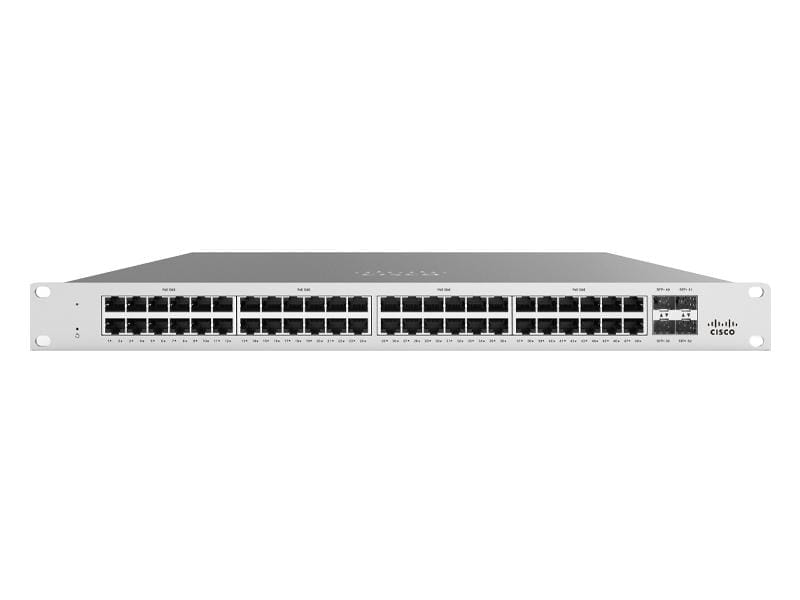

MS120-48FP-HW

The Meraki MS120-48FP-HW is a cloud-managed network switch designed for modern enterprise environments. With 48 ports, it provides ample connectivity for a variety of devices, and the “FP” designation indicates that it supports Power over Ethernet (PoE), enabling the switch to deliver both data and power to connected devices such as IP phones, cameras, and access points. Managed through the intuitive Meraki dashboard, users can easily configure, monitor, and troubleshoot the switch remotely, benefiting from centralized cloud management. This switch is part of Cisco Meraki’s comprehensive networking solutions, offering simplicity, scalability, and advanced features for efficient and secure network management.

Meraki MS120-48FP-HW requires a license.

• Primary Information

  Product Description:	Cisco Meraki Cloud Managed MS120-48FP – switch – 48 ports – managed – rack-mountable
  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	48 x 10/100/1000 (PoE) + 4 x Gigabit SFP
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	740 W
  Performance:	Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
  Capacity:	VLANs supported: 4094 ¦ MAC forwarding entries: 32000
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Features:	Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)
  Power:	AC 120/230 V (47 – 63 Hz)
  Dimensions (WxDxH):	17.3 in x 9.8 in x 1.7 in
  Weight:	9.63 lbs

• General

  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	Desktop, rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	48 x 10/100/1000 (PoE) + 4 x Gigabit SFP
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	740 W
  Performance:	Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
  Capacity:	VLANs supported: 4094 ¦ MAC forwarding entries: 32000
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Authentication Method:	RADIUS
  Features:	Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, STP Root Guard, DHCP client, crossover detection, Single Sign-On (SSO) support, Role-Based Access Control (RBAC), Cisco Discovery Protocol, STP BPDU Guard, Zero-touch provisioning (ZTP), DSCP to CoS Mutation
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP)

• Expansion / Connectivity

  Interfaces:

  48 x 1000Base-T RJ-45 PoE ¦ 4 x 1000Base-T SFP

• Power

  Power Device:	Internal power supply
  Voltage Required:	AC 120/230 V (47 – 63 Hz)

• Miscellaneous

  Rack Mounting Kit:	Included
  MTBF:	731,534 hours
  Compliant Standards:	CSA, IC, FCC, RoHS, RCM

• Dimensions & Weight

  Width:	17.3 in
  Depth:	9.8 in
  Height:	1.7 in
  Weight:	9.63 lbs

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	5 – 95% (non-condensing)
