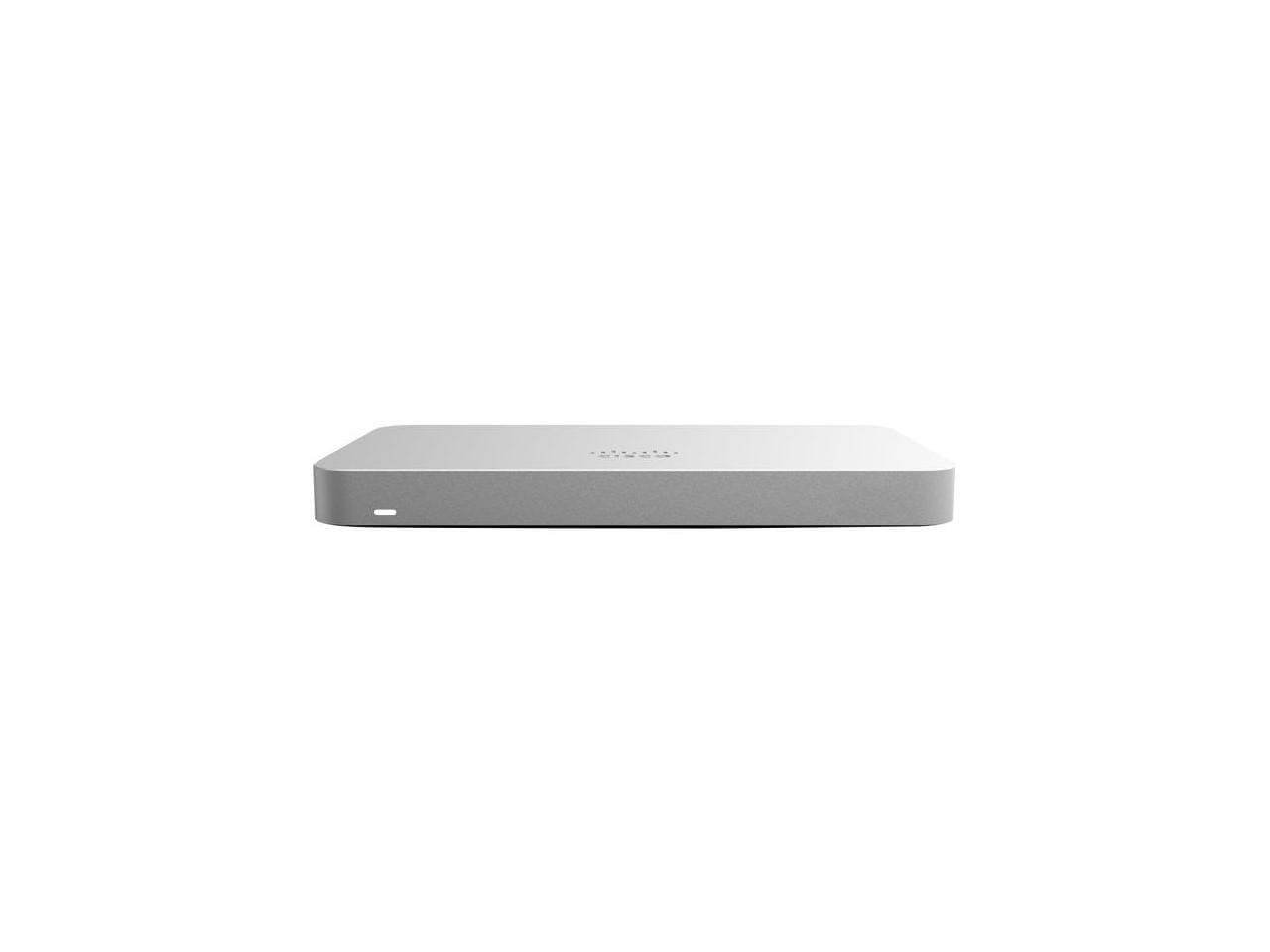

About the MX65-HW
The MX65-HW is the port-rich small-office Meraki MX. It is managed from the Meraki Dashboard, handles 250 Mbps of firewall traffic and up to 50 VPN tunnels at 70 Mbps, and has a recommended device count of 50.
It has two dedicated 1G WAN ports and 10 LAN ports, two of them 1G PoE+ ports that can power an access point or phone. That is the main difference from the MX64-HW, which has the same throughput with fewer ports and no PoE. Power comes from a 90W DC supply.
For more throughput with the same port layout, the newer MX68-HW has more firewall throughput with two WAN ports, ten LAN ports and two PoE+ ports.
What’s included
- MX65-HW security and SD-WAN appliance, managed from the Meraki Dashboard
Sold separately
- A replacement MA-PWR-90WAC power adapter, if you need a spare
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
MX65-HW specifications
| Throughput and sizing | Firewall 250 Mbps; VPN 70 Mbps, up to 50 tunnels; recommended device count 50 |
|---|---|
| WAN ports | 2× dedicated GbE RJ45 |
| LAN ports | 10× GbE RJ45, two of them PoE+ |
| Cellular and Wi-Fi | Cellular uplink via 3rd party USB modem (no integrated Wi-Fi; the -W models add 802.11ac) |
| Power | 90W DC (load idle/max 6W / 72W) |
| Form factor | Desktop / Wall Mount; 1in x 5.2in x 10in; (25mm x 132mm x 256mm); 1.61 lb (0.7 kg) |
| Management | Meraki Dashboard (cloud-managed) |
Compare Meraki MX models
Swipe the table sideways to see every column.
| Model | WAN | LAN | Price |
|---|---|---|---|
| MX65-HW this page | 2× dedicated GbE RJ45 | 10× GbE RJ45, two of them PoE+ | $485.00 |
| MX64-HW | 1× dedicated GbE RJ45 + 1× convertible LAN/WAN GbE RJ45 | 3× dedicated GbE + 1× convertible LAN/WAN GbE RJ45 | $390.00 |
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-90WAC | Replacement power adapter, 90 W AC | $97.75 |
Newer model: MX68-HW
Common questions
How many PoE ports does the MX65 have?
Two of its 10 LAN ports are PoE+.
Does the MX65 support two WAN links?
Yes. It has two dedicated 1G WAN ports.
