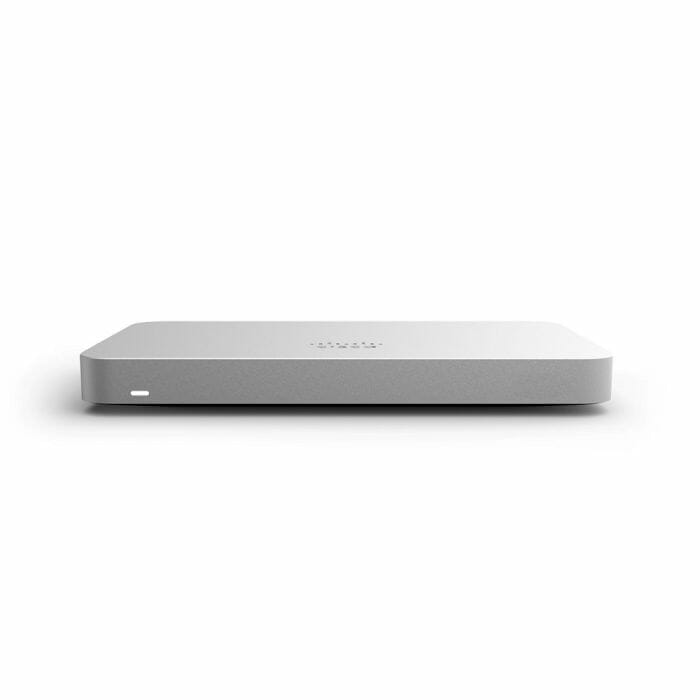

The Meraki MX68-HW is a secure, cloud-managed security appliance designed to provide comprehensive network security for small to medium-sized businesses. The appliance features a powerful quad-core processor and 4 GbE ports for high-speed wired connections. It includes integrated security capabilities such as Layer 7 application visibility and control, content filtering, and intrusion prevention. The Meraki MX68-HW is easy to deploy, manage, and monitor using the intuitive Meraki dashboard.
MAIN SPECIFICATIONS
| Product Description |
Cisco Meraki MX68 – security appliance |
| Device Type |
Security appliance |
| Form Factor |
Desktop |
| Ports Qty |
10 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance |
Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
| Capacity |
Maximum number of users: 50 |
| Power Over Ethernet (PoE) Supported |
PoE+ |
| Dimensions (WxDxH) |
11.2 in x 5.8 in x 1.1 in |
| Weight |
2.47 lbs |
|
MX68-HW – EXTENDED SPECIFICATIONS
| General |
| Security appliance |
| 11.2 in |
| 5.8 in |
| 1.1 in |
| 2.47 lbs |
|
| Networking |
| Desktop |
| 10 |
| Wireless, wired |
| Ethernet, Fast Ethernet, Gigabit Ethernet |
| L2TP, IPSec, PPPoE, DHCP |
| Static IP routing, MPLS |
| Firewall throughput: 450 Mbps ¦ VPN throughput: 200 Mbps ¦ Advanced security throughput: 300 Mbps |
| Maximum number of users: 50 |
| Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support |
|
| Expansion / Connectivity |
| 2 x 1000Base-T – RJ-45 (WAN) ¦ 8 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x USB 2.0 – Type A |
|
| Power |
| PoE+ |
| External power adapter |
| 1 |
| 1 |
| 100 Watt |
|
