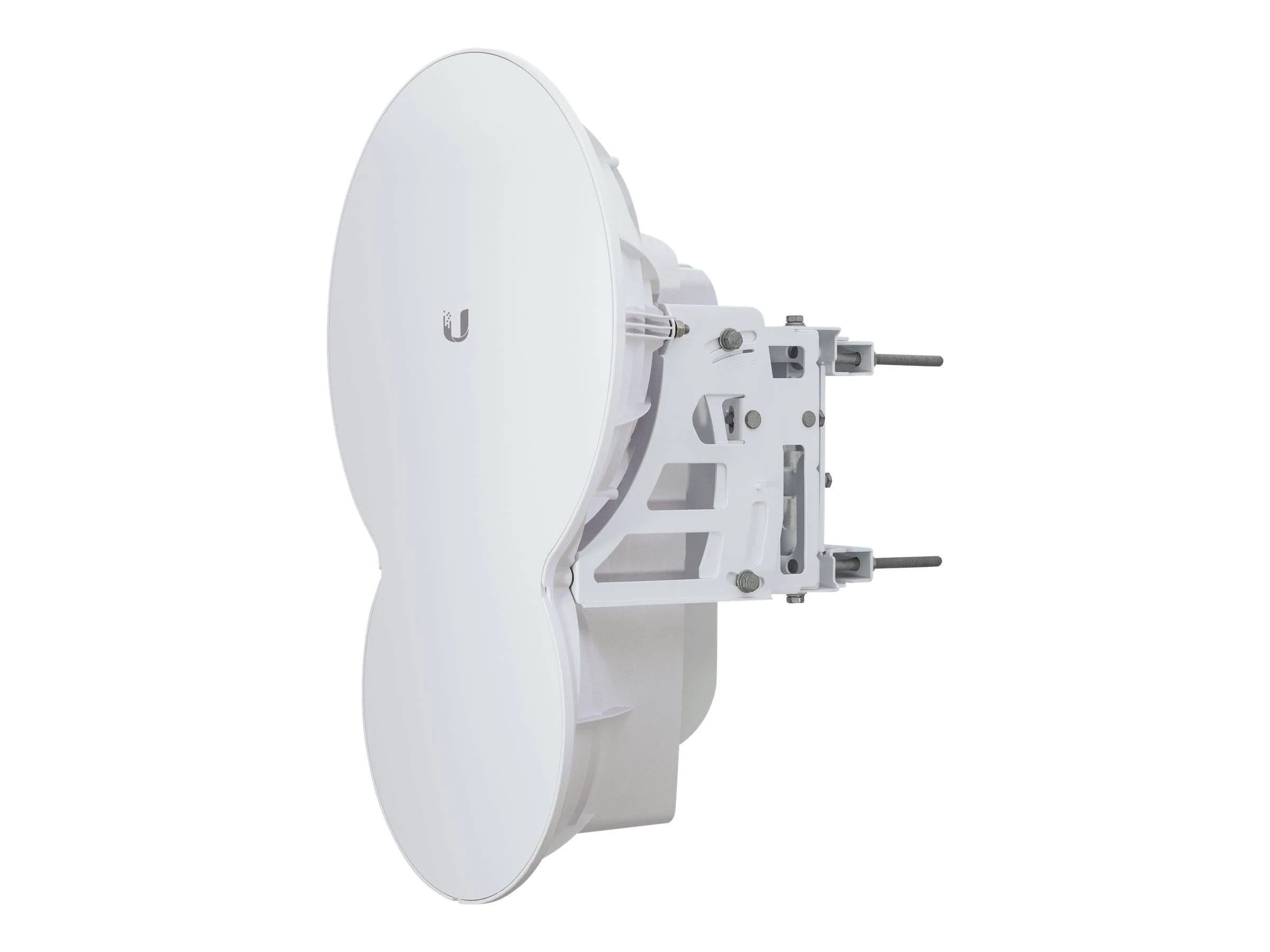

Ubiquiti Networks AF-24(US) network antenna Sector antenna 38 dBi

airFiber AF24 Wireless Bridge

Revolutionary Performance

Designed to be a high-performance backhaul, the airFiber®24 delivers amazing wireless throughput of up to 1.4+ Gbps, surpassing conventional wired backhauls.

Proven Links: 13+ km

Robust enough to perform in the harshest RF noise environments, the airFiber®24 delivers superior performance with efficiency over real-world, 13+ km links.

Low-Latency Carrier Backhaul

The airFiber®24 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

24 GHz Unlicensed Band

The airFiber®24 operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber24 almost anywhere they choose (subject to local country regulations).

Packaged Quantity:   1
Product Type:   Wireless Bridge

Technical Information

Frequency Band:   24 GHz
Outdoor Antenna Range:   8.1 Mile
Wireless Transmission Speed:   1.40 Gbit/s
MIMO Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Fast Ethernet
Ethernet Technology:   Gigabit Ethernet
Ethernet Technology:   Ethernet
Number of Network (RJ-45) Ports:   1
PoE (RJ-45) Port:   No
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   Yes

Physical Characteristics

Form Factor:   Pole-mountable
Height:   25.6″
Width:   16.8″
Depth:   11.9″
Weight (Approximate):   23.15 lb

Miscellaneous

Package Contents:

• airFiber AF24 Wireless Bridge
• Pole Mount Kit
• PoE Adapter
