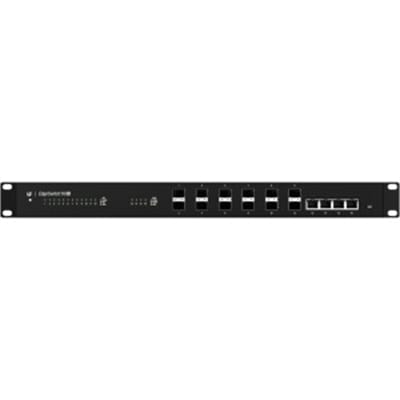

Ubiquiti Networks ES-16-XG Managed 10G Ethernet (100/1000/10000) 1U Black

10G 16-Port Managed Aggregation Switch
Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.

The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

10G High-Capacity Links

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality

The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   4
Uplink Port:   No
Modular:   Yes
Stack Port:   No
Port/Expansion Slot Details:   12 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details:   4 x 10 Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Optical Fiber
Media Type Supported:   Twisted Pair
Ethernet Technology:   10 Gigabit Ethernet
Network Technology:   10GBase-X
Network Technology:   10GBase-T

I/O Expansions

Number of Total Expansion Slots:   12
Expansion Slot Type:   SFP+
Shared SFP Slot:   No
Number of SFP+ Slots:   12

Network & Communication

Layer Supported:   3

Management & Protocols

Manageable:   Yes

Power Description

Power Source:   Power Supply
Power Source:   AC Adapter
Redundant Power Supply Supported:   Yes

Physical Characteristics

Compatible Rack Unit:   1U
Form Factor:   Rack-mountable
Form Factor:   Standalone
Height:   1.7″
Width:   17.4″
Depth:   8.7″
Weight (Approximate):   5.78 lb

Miscellaneous

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
