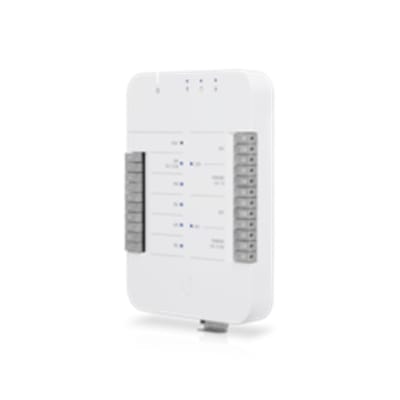

Ubiquiti Networks UniFi UA-Hub-US Access Hub

UniFi® Access Hub is an intelligent IP networked single door controller, a part of UniFi Access solution.

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access Controller software. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

Features:

• Powered by 802.3bt (PoE++) switch
• Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
• 12V powered and dry relays compatible with most locks
• Four inputs for motion sensors, request-to-exit devices and door position switch
• Managed with UniFi Access Controller in UDM-Pro
• DIN-rail mounting

Product Type:   Door Access Control System

Technical Information

Number of Doors:   1
Application/Usage:   Door

Interfaces/Ports

Network (RJ-45):   Yes

Network & Communication

Ethernet Technology:   Gigabit Ethernet

Power Description

Input Voltage:   12 V DC

Physical Characteristics

Form Factor:   DIN Rail Mountable
Height:   7.5″
Width:   5″
Depth:   1.3″
Weight (Approximate):   1.01 lb

Miscellaneous

Package Contents:

• UniFi Access Hub UA-Hub Door Access Control System
• DIN Rail
• 2 x Self-Tapping Screws
• 2 x Screw Anchors

Compatibility:   UniFi Access Controller
Environmentally Friendly:   Yes
Environmental Certification:   WEEE
