Ubiquiti Networks UniFi US-8 Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
$100.00
On order Ask for price and lead time
Tell us how many you need and we'll reply with current price and lead time. Or call (984) 225-1600.

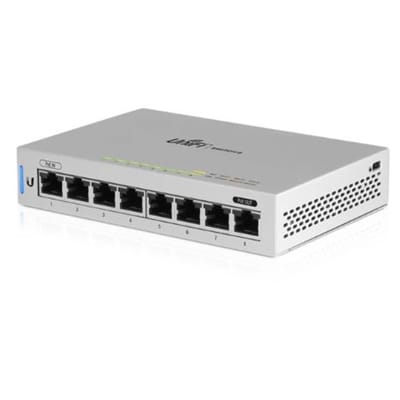

The Ubiquiti Networks UniFi US-8 Ethernet Switch is an Eight-port, Layer 2 PoE switch with a Gigabit PoE passthrough output.
Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The new 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching
for your networks.
Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps with a switching capacity of 16 Gbps.
PoE Powered
The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power.
Product Type: Ethernet Switch
| US-8 | |
|---|---|
| Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
| Weight | 432 g (15.24 oz) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| PoE In (Port 1) PoE Mode 1: PoE Mode 2: |
PoE/PoE+ (Pins 1, 2+; 3, 6-) Passive 48V (Pins 4, 5+; 7, 😎 |
| PoE Out (Port 8) PoE Mode 1: PoE Mode 2: DC Input Mode: |
48V (Pins 1, 2+; 3, 6-) Passive 48V (2-Pair Pins 4, 5+; 7, 😎 48VDC (Pins 1, 2+; 3, 6-) |
| Power Method | (1) DC 48V, Max. 1.25A (1) PoE Input, PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Power Supply | External AC/DC Adapter: 48V, 0.5A |
| Max. Power Consumption | 12W (Excluding PoE Output) |
| Max. PoE Wattage per Port | PoE Mode 1: 12W @ PoE+ PoE Mode 2: 12W @ 48V DC Input Mode: 12W @ 48V |
| Passive PoE Voltage Range | Depends on Power Source |
| Line Rate | 8 Gbps, Non-Blocking |
| LEDs System RJ45 Data Ports |
Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
