USP-RPS
$427.04

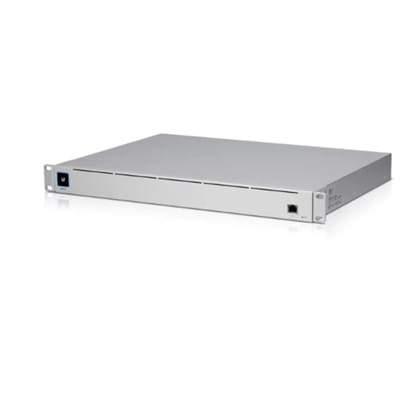

Ubiquiti Networks UniFi SmartPower Redundant Power System
Availability: On Order
Questions? Call (984) 225-1600
The Ubiquiti Networks USP-RPS is a 950W backup power unit that provides full redundancy for rack-mounted UniFi devices.The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure.
The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3″ color touchscreen LCM displays system information for convenient monitoring.
Features
-
- (6) USP DC output ports
- (1) Ethernet port
- 1U Rackmountable (kit included)
- 1.3″ Touchscreen display with status information
- (1) UniFi SmartPower Cable
- Managed by UniFi Network Controller version: 5.12.11 or later
| USP-RPS – Mechanical | |
|---|---|
| Dimensions | 442.40 x 325.60 x 43.70 mm (17.42 x 12.82 x 1.72″) |
| Weight With Mount Brackets |
5.500 kg (12.13 lb) 5.590 kg (12.32 lb) |
| Interfaces Networking Management Power Output |
(1) 10/100/1000 Mbps RJ45 Port Ethernet In-Band (6) RPS DC Ports |
| Max. Power Consumption | 995W |
| Power Method | (1) Universal AC Input, 100 to 240VAC |
| Power Supply | Internal 350W AC/DC Internal 645W AC/DC |
| Supported Voltage Range | 100 – 240VAC |
| Display | 1.3″ Color Touch Panel |
| LED System RJ45 USP RPS |
Status Link/Activity Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Output Power 52VDC 11.5VDC |
11.54A (600W) 30.44A (350W) |
| Max. Output Power per RPS Port 52VDC 11.5VDC |
11.54A (600W) 30.44A (350W) |
