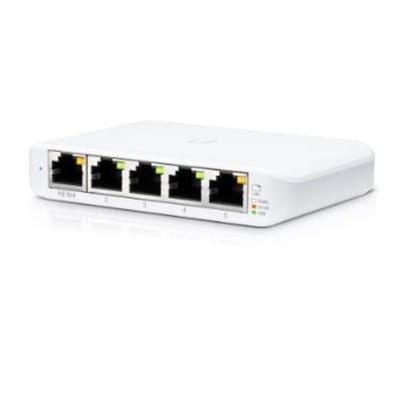

Ubiquiti Networks UniFi USW-Flex-Mini Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
$45.33
Condition: NEW
Availability: On Order
Questions? Call (984) 225-1600
5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Product Type: Ethernet Switch
The Ubiquiti Networks UniFi USW-Flex-Mini is a compact, five-port, Layer 2 PoE switch that can be powered with PoE or a 5V USB-C adapter*.
Features:
(1) GbE, PoE RJ45 input
(4) GbE RJ45 ports
Managed with the UniFi Network application: Version 5.12.5 and later
*Only single-unit packages include the 5V, 1A USB-C power adapter.
| USW-Flex-Mini – Mechanical | |
|---|---|
| Dimensions | 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83″) |
| Weight | 150 g (5.29 oz) |
| Hardware | |
| Networking Interface | (5) 10/100/1000 Mbps RJ45 Ports |
| PoE In Interface | PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Management Interface | Ethernet In-Band |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Method | USB Type C, 5V PoE/PoE+ (44 – 57VDC, 0.05 – 0.04A) |
| Power Supply | 5V, 1A Power Adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Voltage Range USB Type C PoE/PoE+ |
4.7 – 5.3VDC 44 – 57VDC |
| Max. Power Consumption | 2.5W |
| LEDs System RJ45 Data Ports |
Status Speed/Link/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 12kV Contact |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
