How Does a PoE Switch Work?

Power over Ethernet (PoE) is an access-layer technology that combines electrical power and data signals into a single Ethernet connection. This enables a powered device. A PoE switch can provide power and network connectivity via Ethernet cables for access points, cameras, and other Internet of Things (IoT) devices.

PoE Switches Explained

Power over Ethernet (PoE) is an access-layer technology that combines electrical power and data signals into a single Ethernet connection. This enables a powered device. PoE is installed over twisted-pair Ethernet cables, which are easy to install, especially in hard-to-reach places where electrical power outlets are not available. Power Sourcing Equipment (PSE) relies on PoE technology to provide power to devices. A PoE switch is often used as PSE in a local network.

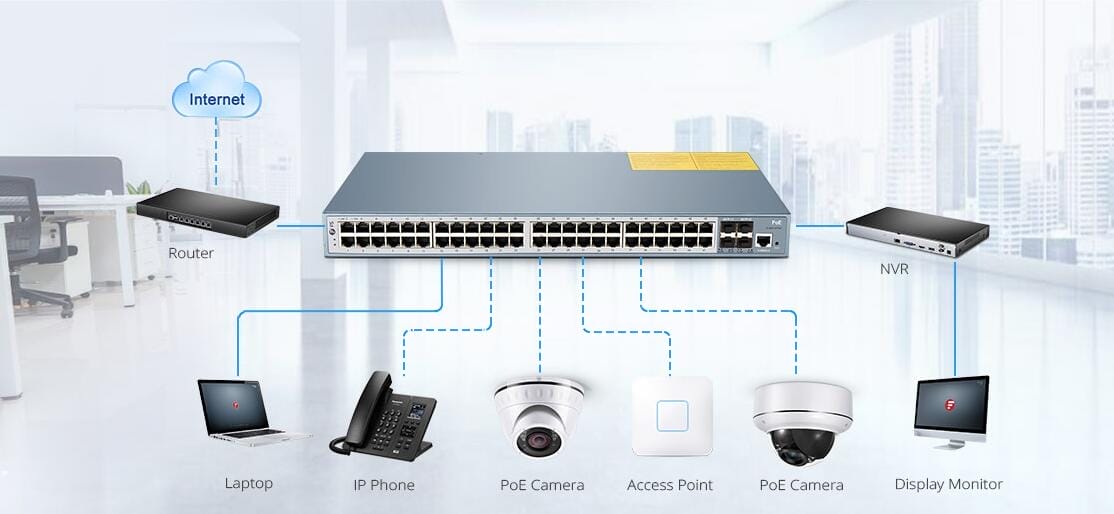

A PoE switch’s purpose is to provide power and network connectivity via Ethernet cables to devices such as access points, IP cameras, IP phones, and PoE lighting.

How Does a PoE Switch Work?

The simple construction of a Power over Ethernet (PoE) switch makes it easy to configure. The switch has several Ethernet ports to provide a constant power supply as well as network communication to the connected devices. These switches can be configured in the following ways:

• Mode A Configuration: In this setup, the switch provides power and data over the same wire.
• Mode B Configuration: In this setup, the switch provides power and data via different wires.

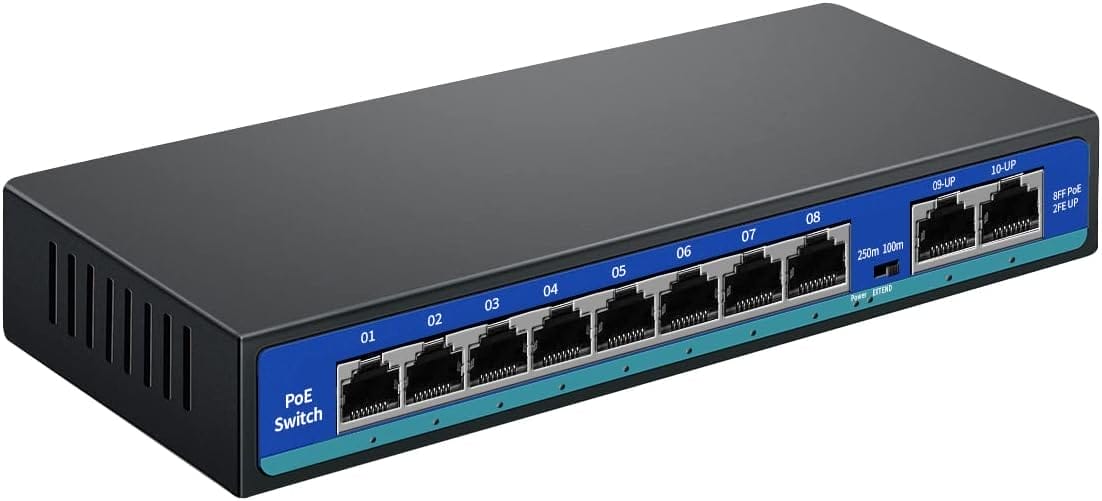

Most industrial PoE switches have 5 or 8 ports. Non-industrial PoE switches can have 8, 24, or 48 ports. The switches can be classified as managed or unmanaged.

How to Use a PoE Switch

To use a Power over Ethernet (PoE) switch effectively in an industrial environment, you need a thorough understanding of its capabilities. This guide will help you get the most from your PoE switch.

Installation and Initial Setup

1. Choose an Appropriate Location: Make sure the location is accessible and has adequate ventilation.
2. Connect the Switch: Use Ethernet cables to connect the switch to the power source and network.
3. Turn On the Switch: Follow the manufacturer’s instructions to power on the switch and set its initial settings.

Configuration Options and Settings

1. Access the Interface: You can access the switch’s interface via a web browser or software provided by the manufacturer.
2. Optimize Network Performance: Configure network settings like IP addresses, Virtual Local Area Networks (VLANs), and Quality of Service (QoS).
3. Set Up PoE: Configure power allocation per port and set priority settings for powered devices.

Connecting and Managing Devices

1. Connect Devices: Use Ethernet cables to connect powered devices (PDs), such as IP cameras and VoIP phones, to the PoE switch.
2. Check Compliance: Ensure your devices comply with PoE standards, and configure them to the correct network settings if needed.
3. Monitor and Manage: Use the switch’s management tool to monitor device status, configure ports, and troubleshoot connectivity issues.

Troubleshooting Common Issues

1. Check Connections: Ensure Ethernet cables are properly connected and in good condition if you experience connectivity or power issues.
2. Power Supply: Verify that the PoE switch provides enough power to all connected devices. Adjust power settings if necessary.
3. Use Diagnostic Tools: Monitor network traffic and performance using the switch’s diagnostic tools to identify any bottlenecks.

Safety Precautions and Maintenance

1. Regular Inspections: Check the PoE switch and connected devices regularly for signs of wear or damage.
2. Prevent Overheating: Keep the switch in a dust-free, clean environment to prevent overheating.
3. Routine Maintenance: Follow manufacturer instructions for firmware updates and routine maintenance to ensure smooth and secure operation.

Following these guidelines will help you deploy and manage PoE switches in an industrial environment, maximizing their capabilities and ensuring reliable data and power transmission for your connected devices.

Why Switch to PoE?

When designing a network to support IoT devices, it’s important to consider the network’s capacity, connectivity, performance, and power requirements. Power over Ethernet (PoE) is an access-layer technology that combines electrical power and data signals into a single Ethernet connection to power a device.

PoE switches eliminate the need for separate power and data cables. They are simple, save money, and provide new capabilities, such as:

• Flexible Placement: Place access points and IoT devices anywhere without needing nearby electrical outlets.
• Efficient Management: Prioritize, deliver, and manage critical network resources effectively.
• Intelligent Monitoring: Monitor and control connected devices intelligently.

Benefits of PoE Switch

PoE uses twisted pair (Ethernet) cabling, which is widely used worldwide. It can be quickly installed without the need for a qualified electrician. Twisted pair cables are cheaper and can be used in hard-to-reach locations where pulling electrical power is impossible.

PoE switches can help reduce power consumption when devices are idle. With access to data signals, the status of the device can be monitored, and information can be shared between the PoE switch and the powered device to control the amount of power delivered to remote devices.

PoE switches are capable of performing all the functions of a standard switch, including connecting people, devices, and data over a wired network.

Progression of IEEE standards for PoE

Standards help customers adopt new technologies by ensuring that products from different vendors can work together. This is an important consideration for network operation. Proprietary software can restrict customer choice by locking them into a single vendor and limiting their flexibility to adopt new devices as they become available.

The IEEE (Institute of Electrical and Electronics Engineers) has developed PoE standards and has continued to develop them for several decades to support higher data transmission speeds and increased power transmission. Standardization of PoE technology increases adoption, drives demand, and ensures that emerging powered devices work with power-sourcing equipment.

High-power PoE Standards

Power over Ethernet (PoE) technology, which allows you to connect power-hungry IoT devices, has been widely adopted and continues to evolve. This is due to the demand for simplified network installation, improved energy efficiency, and the ability to connect emerging IoT devices.

The IEEE 802.3bt is the latest standard in PoE technology. This standard allows PoE switches and powered devices to operate safely above the 30-watt PoE per connection limit.

HPE Aruba Networking delivers solutions that are standards-compliant and not proprietary. HPE Aruba Networking can now confidently design and deploy high-power PoE solutions. HPE Aruba Networking switches can be configured to support different PoE budgets and power levels, allowing them to meet the requirements of both large companies and SMBs.

HPE Aruba Networking switches with IEEE 802.3bt Class 8 provide up to 90 watts of power to all compatible devices. This means that your infrastructure investment will continue to provide value as new devices and applications come to the market.

HPE Aruba Networking switches are the first to be listed in the Ethernet Alliance Certified PoE Product Registry, helping to ensure network interoperability.

HPE Aruba Networking CX Switches

HPE Aruba CX switches connect, simplify, and protect your network by bridging users and applications with mission-critical data. CX switches reduce the complexity of IT and troubleshooting time with their intuitive tools and integrated analytics. They also create a solid foundation for future technologies and business needs. Here are the different types of HPE Aruba CX Switches.

• Access and Aggregation Switches
• Core and Data Center Switches
• Ruggedized Switches
