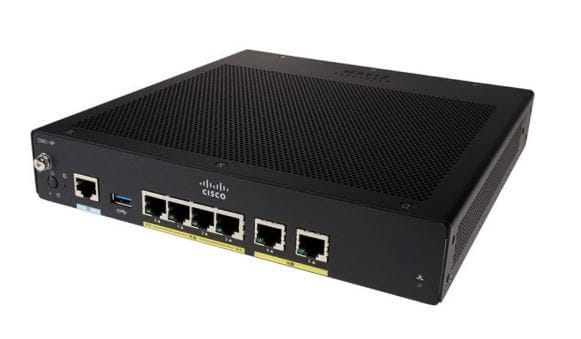

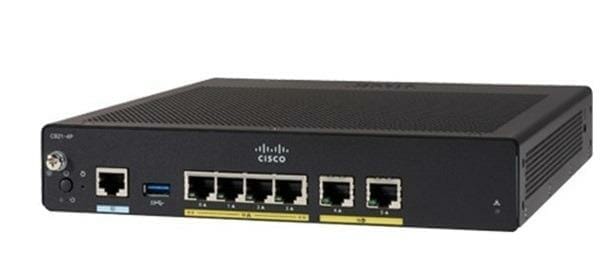

Cisco C921-4P

Cisco 900 Series Integrated Services Router


SKU: C921-4P

$694.00

: $1,229.06

Cisco 900 Series Integrated Services Router

In stock

Category:
Share This Product

Description

MAIN SPECIFICATIONS

Product DescriptionCisco Integrated Services Router 921 – router – desktop
Device TypeRouter – 4-port switch (integrated)
Enclosure TypeDesktop
WAN Ports Qty2
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolL2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE
Remote Management ProtocolTelnet, SNMP 3, HTTP, HTTPS, SSH, CLI
FeaturesNAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), VPN Server, Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, Storm Control, SmartPort technology, VPN client, Hierarchical Quality of Service (HQoS), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Network-Based Application Recognition (NBAR), Network-Based Application Recognition (NBAR) 2, Performance Routing (PfR), Class-Based Traffic Shaping (CBTS), Class-Based Traffic Policing (CBTP), Class-Based Weighted Random Early Detection (CBWRED), Cisco IP Service-Level Agreement (IP SLA), Cisco Next Generation Plug-and-Play (NG PnP) Protocol
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1x
PowerAC 120/230 V (50/60 Hz)
Dimensions (WxDxH)9 in x 9.5 in x 1.7 in



EXTENDED SPECIFICATIONS

General
Device TypeRouter – 4-port switch (integrated)
Enclosure TypeDesktop
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network / Transport ProtocolL2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTP
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRE
Remote Management ProtocolTelnet, SNMP 3, HTTP, HTTPS, SSH, CLI
Encryption AlgorithmDES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
FeaturesNAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), VPN Server, Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, Storm Control, SmartPort technology, VPN client, Hierarchical Quality of Service (HQoS), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Network-Based Application Recognition (NBAR), Network-Based Application Recognition (NBAR) 2, Performance Routing (PfR), Class-Based Traffic Shaping (CBTS), Class-Based Traffic Policing (CBTP), Class-Based Weighted Random Early Detection (CBWRED), Cisco IP Service-Level Agreement (IP SLA), Cisco Next Generation Plug-and-Play (NG PnP) Protocol
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, CNS13438:2006, EN 300 386 V1.6.1, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, EN 300 386, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5
Processor2.2 GHz
RAM1 GB
Flash Memory2 GB
Expansion / Connectivity
InterfacesWAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
OS ProvidedCisco IOS IP Base
Dimensions & Weight
Width9 in
Depth9.5 in
Height1.7 in
