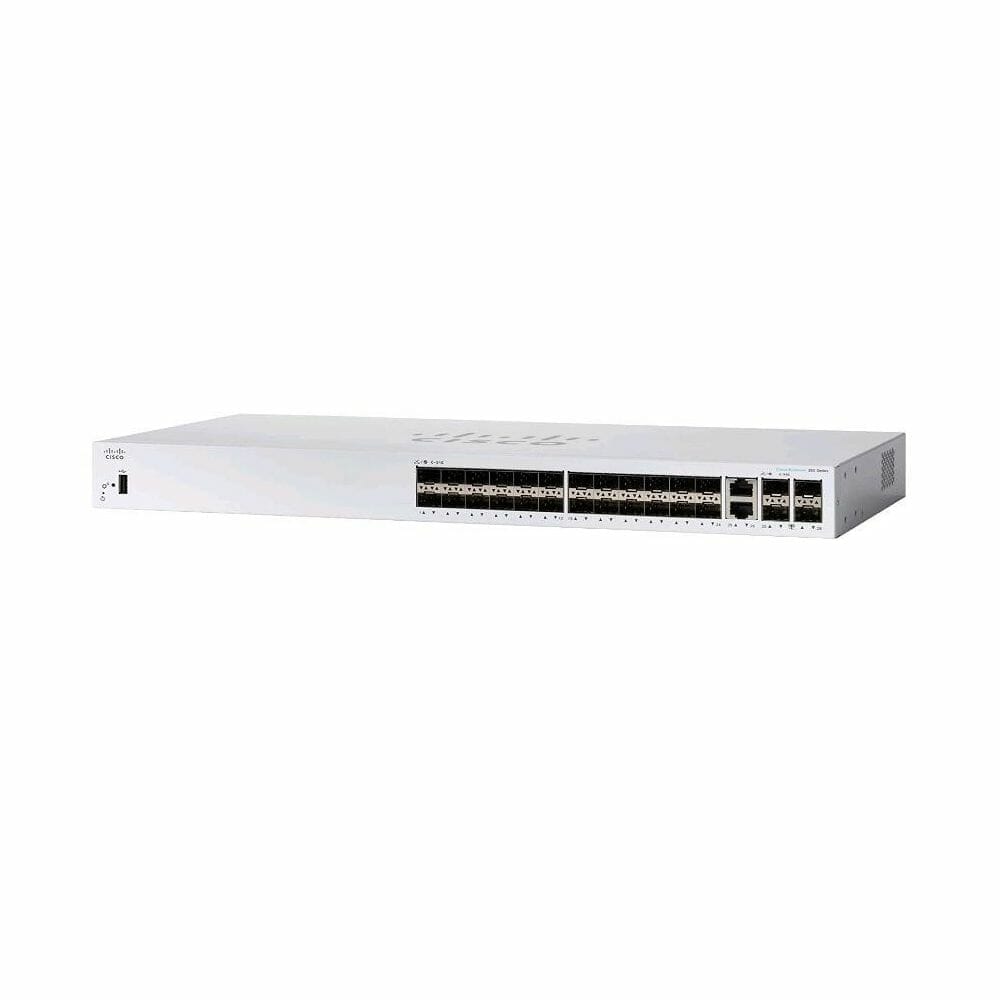

Cisco CBS350-24S-4G – Switch – L3 – managed – 24 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP + 2 x Gigabit SFP (uplink) – rack-mountable

The Cisco CBS350-24S-4G is a high-performance Ethernet switch designed for small to medium-sized businesses. With its 24 Gigabit Ethernet SFP (Small Form-Factor Pluggable) ports and four Gigabit Ethernet uplink ports, this switch offers flexible and high-speed connectivity for your network infrastructure.

The CBS350-24S-4G provides Gigabit Ethernet connectivity, allowing for data transfer rates of up to 1 Gigabit per second (Gbps). It delivers fast and reliable network performance, making it suitable for demanding applications and bandwidth-intensive tasks.

The switch features advanced Layer 2 switching capabilities, including VLAN support and Spanning Tree Protocol (STP), which enhance network segmentation and ensure loop-free operation. Quality of Service (QoS) features prioritize critical applications and enable efficient bandwidth allocation for optimal performance.

With four Gigabit Ethernet uplink ports, the CBS350-24S-4G allows for seamless connection to other switches, routers, or network devices, enabling efficient data flow and network expansion as your business grows.

The CBS350-24S-4G is designed with a compact form factor and a rack-mountable design, making it easy to deploy in various network environments. It features a sturdy construction and a fanless design for quiet operation and reliability.

Overall, the Cisco CBS350-24S-4G switch is a high-performance solution for small to medium-sized businesses. With its Gigabit Ethernet connectivity, advanced features, and uplink capabilities, it provides reliable and scalable network connectivity for demanding applications and data-intensive tasks in your network infrastructure.

MAIN SPECIFICATIONS

Product Description Cisco Business 350 Series CBS350-24S-4G – switch – 24 ports – managed – rack-mountable Device Type Switch – 24 ports – L3 – managed Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 24 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP + 2 x Gigabit SFP (uplink) Performance Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps Capacity RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS Features Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az Power AC 100-240 V (50/60 Hz) Dimensions (WxDxH) 17.3 in x 8 in x 1.7 in Weight 5.95 lbs



EXTENDED SPECIFICATIONS

General

Device Type Switch – 24 ports – L3 – managed Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 24 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP + 2 x Gigabit SFP (uplink) Performance Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps Capacity RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS Encryption Algorithm SSL Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) Features Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az Processor X ARM: 800 MHz RAM 512 MB Flash Memory 256 MB Status Indicators Status, link/activity/speed

Expansion / Connectivity

Interfaces 28 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x console RJ-45

Power

Power Device Internal power supply Voltage Required AC 100-240 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included MTBF 258,544 hours Compliant Standards UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 s

Dimensions & Weight

Width 17.3 in Depth 8 in Height 1.7 in Weight 5.95 lbs
