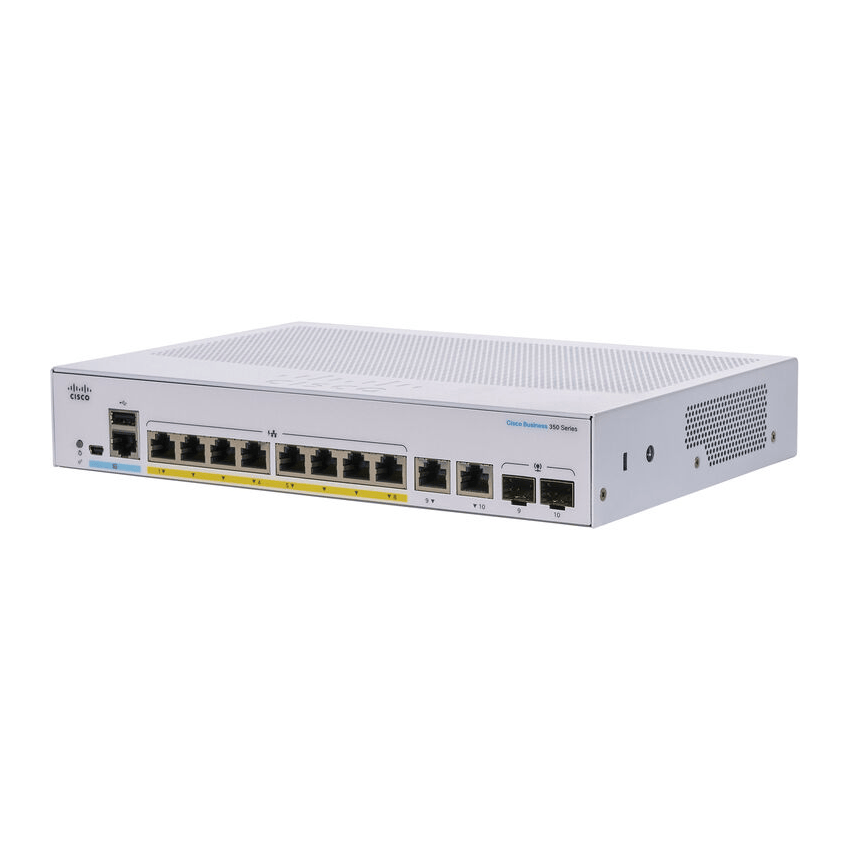

Cisco CBS350-8P-E-2G – Switch – L3 – managed – 8 x 10/100/1000 (PoE+) + 2 x combo SFP – rack-mountable – PoE+ (67 W)

The Cisco CBS350-8P-E-2G is a compact and powerful Ethernet switch designed to provide reliable and high-performance network connectivity for small to medium-sized businesses. With eight Gigabit Ethernet ports and two Gigabit Ethernet uplink ports, this switch offers flexible and scalable connectivity options for your network devices.

One of the key features of the CBS350-8P-E-2G is its support for Power over Ethernet (PoE) technology. It provides eight Gigabit Ethernet ports with PoE capability, allowing you to power compatible devices such as IP phones, wireless access points, and IP cameras directly from the switch. This eliminates the need for separate power supplies and simplifies the deployment and management of your network devices.

The switch also includes two Gigabit Ethernet uplink ports, which provide high-speed connectivity for connecting the switch to other switches, routers, or network devices. These uplink ports offer increased bandwidth and ensure fast and efficient data transfer, especially for bandwidth-intensive applications or when connecting to higher-level network devices.

For enhanced security, the switch offers features such as Access Control Lists (ACLs) and port security, which help protect your network from unauthorized access and maintain data integrity. Additionally, it supports advanced management features, including a user-friendly web-based interface, SNMP monitoring, and remote management capabilities, making it easy to configure, monitor, and manage your network.

The CBS350-8P-E-2G has a compact form factor and a fanless design, allowing for flexible deployment options. It can be easily mounted on a desktop or rack-mounted, depending on your specific requirements. Its energy-efficient operation helps reduce power consumption, making it environmentally friendly and cost-effective.

In summary, the Cisco CBS350-8P-E-2G switch offers reliable and high-performance network connectivity with its PoE support, advanced switching features, and robust security capabilities. It is an ideal solution for small to medium-sized businesses looking to enhance their network infrastructure with a compact and versatile switch.

• Primary Information

  Product Description:	Cisco Business 350 Series 350-8P-E-2G – switch – 8 ports – managed – rack-mountable
  Device Type:	Switch – 8 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable
  Subtype:	Gigabit Ethernet
  Ports:	8 x 10/100/1000 (PoE+) + 2 x combo SFP
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	67 W
  Performance:	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
  Capacity:	RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	2KB
  Routing Protocol:	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
  Remote Management Protocol:	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
  Features:	Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
  Power:	AC 120/230 V (50/60 Hz)
  Dimensions (WxDxH):	10.6 in x 7.3 in x 1.7 in
  Weight:	7.72 lbs

• General

  Device Type:	Switch – 8 ports – L3 – managed – stackable
  Enclosure Type:	Rack-mountable
  Subtype:	Gigabit Ethernet
  Ports:	8 x 10/100/1000 (PoE+) + 2 x combo SFP
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	67 W
  Performance:	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
  Capacity:	RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	2KB
  Max Units In A Stack:	4
  Routing Protocol:	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
  Remote Management Protocol:	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
  Encryption Algorithm:	SSL
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
  Features:	Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
  Processor:	X ARM: 800 MHz
  RAM:	512 MB
  Flash Memory:	256 MB
  Status Indicators:	Status, PoE, link/activity/speed

• Expansion / Connectivity

  Interfaces:

  8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

• Power

  Power Device:	External power adapter
  Voltage Required:	AC 120/230 V (50/60 Hz)
  Power Consumption Operational:	80.86 Watt

• Miscellaneous

  Rack Mounting Kit:	Included
  MTBF:	1,706,649 hours
  Compliant Standards:	UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6

• Dimensions & Weight

  Width:	10.6 in
  Depth:	7.3 in
  Height:	1.7 in
  Weight:	7.72 lbs
