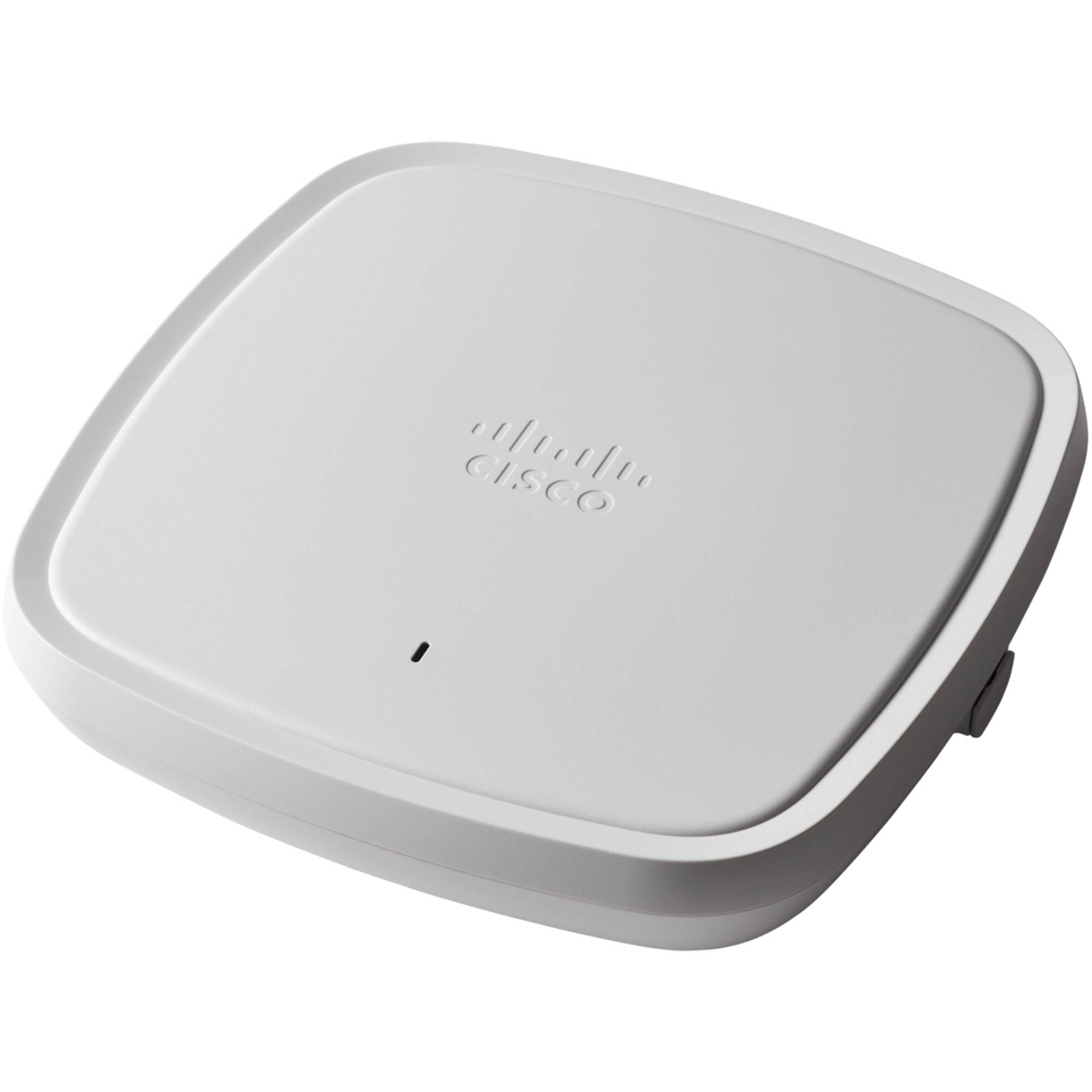

Cisco C9105AXI-B – 9105AXI – Wireless access point – Bluetooth 5.0 – Bluetooth, Wi-Fi 6 – 2.4 GHz, 5 GHz

The Cisco C9105AXI-B is a compact and high-performance Wi-Fi 6 access point designed for small to medium-sized businesses. It delivers enhanced wireless connectivity with features like MU-MIMO, OFDMA, and Bluetooth. Ideal for dense environments, the 9105AXI-B offers reliable and secure network performance.

The most versatile Cisco Catalyst C9105AXI-B Access Points goes beyond the Wi-Fi 6 (802.11ax) standard, offers high-density, resiliency as well as network intelligence and IOT Application hosting. It comes with ceiling mount for teleworker, branch office, and small to mid-size deployments, and wall mount for hospitality, residence halls and other multi-dwelling units.

• Primary Information

  Product Description:	Cisco Catalyst 9105AXI – wireless access point – Bluetooth, Wi-Fi 6
  Device Type:	Wireless access point
  Form Factor:	External – indoor
  Localization:	Puerto Rico, United States
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
  Frequency Band:	2.4 GHz, 5 GHz
  Power Over Ethernet (PoE) Supported:	UPOE
  Dimensions (WxDxH):	5.9 in x 5.9 in x 1.2 in
  Weight:	11.62 oz

• General

  Device Type:	Wireless access point
  Ruggedized Design:	Indoor
  Width:	5.9 in
  Depth:	5.9 in
  Height:	1.2 in
  Weight:	11.62 oz
  Localization:	Puerto Rico, United States

• Networking

  Form Factor:	External
  Connectivity Technology:	Wireless
  Line Coding Format:	OFDMA
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
  Frequency Band:	2.4 GHz, 5 GHz
  Status Indicators:	Status
  Features:	DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic QoS, guest access, 2×2 MU-MIMO technology, secure boot, Target Wait Time (TWT), image signing, Cisco Trust Anchor module, BSS Coloring
  Encryption Algorithm:	AES, TLS, PEAP, TTLS, WPA, WPA2, EAP-SIM, WPA3, EAP-FAST
  Authentication Method:	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
  Compliant Standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6

• Antenna

  Antenna:	Internal
  Directivity:	Omni-directional

• Internet of Things (IoT)

  Internet of Things (IoT) Compatible:	Yes
  Communications Technology:	Bluetooth Low Energy (LE)

• Expansion / Connectivity

  Interfaces:

  1 x 1000Base-T – RJ-45 ¦ 1 x management – RJ-45

• Miscellaneous

  Compliant Standards:

  CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60601, VCCI V-3, EN 62209-1, SRRC, EN 300 328, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, KN 301 489-17

• Power

  Power Over Ethernet (PoE) Supported:

  UPOE

• Software / System Requirements

  Software Included:

  CAPWAP Software Image

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	122 °F
  Humidity Range Operating:	10 – 90% (non-condensing)
