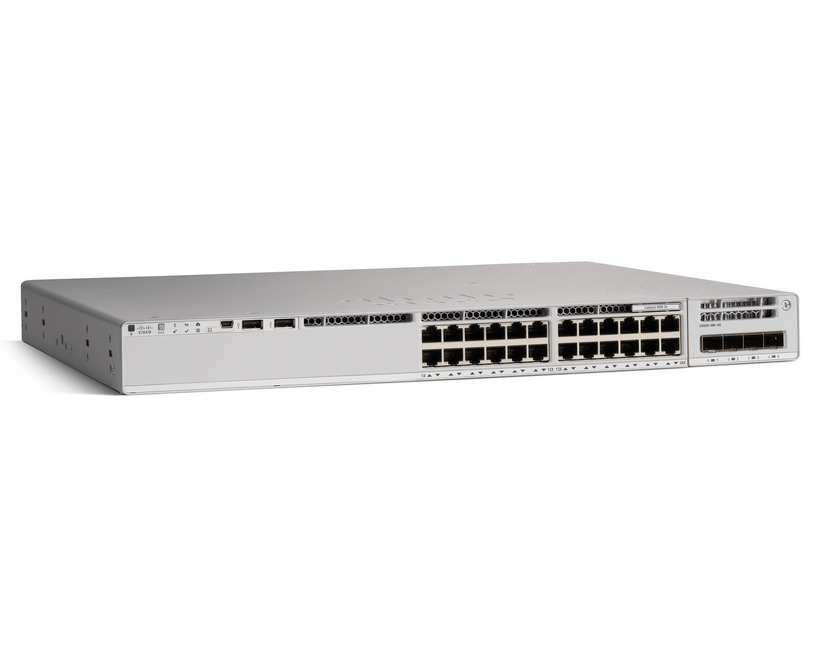

Cisco C9200-24T-E – Excess – Switch – L3 – managed – 24 x 10/100/1000 – rack-mountable

Name: Cisco C9200-24T-E-WS - Link US Online
Brand: Cisco
SKU: C9200-24T-E-WS
Price: 670.80 USD
Availability: InStock

Original price was: $4,055.18.Current price is: $670.80.

Condition: CERTIFIED REFURB

Availability: 10 unit(s) In Stock

Questions? Call (984) 225-1600

SKU: C9200-24T-E-WS Categories: Cisco, Excess, Switches

Description

The Cisco C9200-24T-E is a 24-port, fixed-configuration Ethernet switch designed for enterprise-class network access. It features 24 Gigabit Ethernet ports, and is equipped with Cisco’s next-generation flagship network operating system, the Cisco IOS XE. This switch is designed to support both wired and wireless networks, and offers advanced security features, network virtualization capabilities, and Energy Efficient Ethernet (EEE) support for reduced power consumption. Overall, the Cisco C9200-24T-E is a versatile and high-performance switch that is ideal for use in enterprise-class networks.

MAIN SPECIFICATIONS

Product Description	Cisco Catalyst 9200 – Network Essential- switch – 24 ports – managed – rack-mountable
Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000
Performance	Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
Capacity	Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power	AC 120/230 V (50 – 60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 13.8 in x 1.7 in
Weight	11.02 lbs

EXTENDED SPECIFICATIONS

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000
Performance	Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
Capacity	Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM	4 GB
Flash Memory	4 GB

Expansion / Connectivity

Interfaces	48 x 10/100/1000 Base-T RJ-45 ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply – hot-plug
Installed Qty	2 (max)
Power Redundancy	Optional
Power Provided	125 Watt
Voltage Required	AC 120/230 V (50 – 60 Hz)
