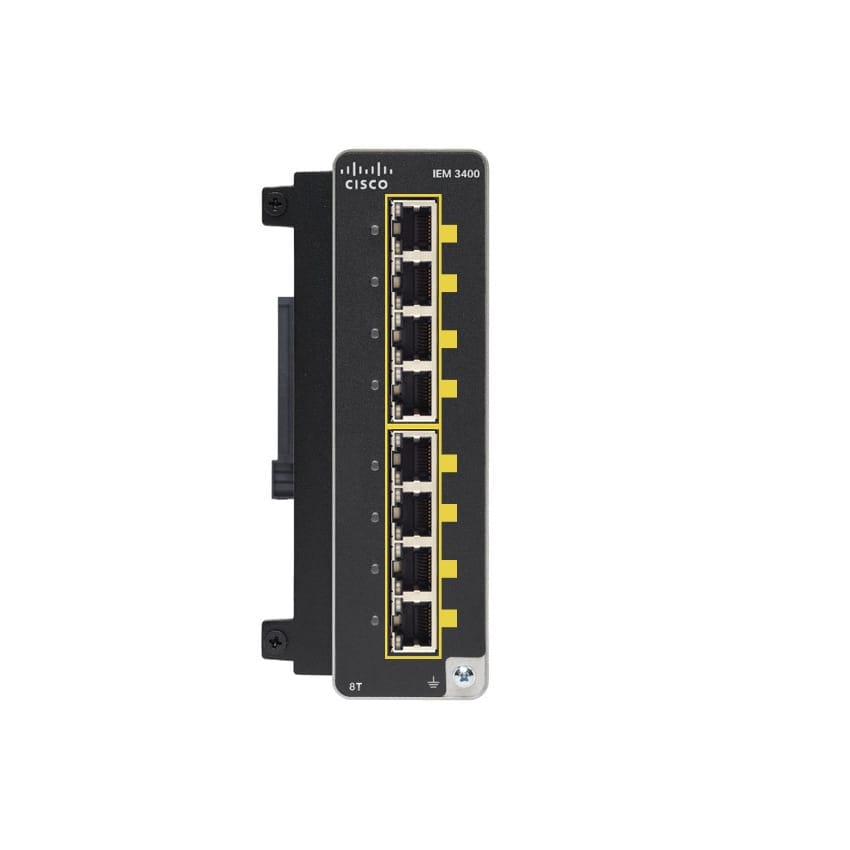

Cisco IEM-3400-8T – Expansion module – Gigabit Ethernet x 8 – for Catalyst IE3400 Rugged Series

The Cisco IEM-3400-8T is an Industrial Ethernet Module designed to provide robust and secure network connectivity in industrial environments. It features eight Gigabit Ethernet ports, allowing for high-speed and reliable connections for industrial devices such as PLCs, cameras, and control systems.

The module is specifically designed to withstand harsh operating conditions commonly found in industrial environments. It is built to handle extreme temperatures, vibrations, and electrical noise, ensuring reliable performance in demanding industrial applications.

Installation and configuration of the IEM-3400-8T are straightforward, allowing for seamless integration into existing industrial networks. The module’s compact size and DIN-rail mounting options make it easy to install in space-limited environments commonly found in industrial settings.

In summary, the Cisco IEM-3400-8T is a robust and secure Industrial Ethernet Module that provides high-performance network connectivity for industrial applications. With its Gigabit Ethernet ports, rugged design, advanced networking features, and ease of installation, it is well-suited for industrial environments that demand reliable and efficient network connectivity.

• Primary Information

  Product Description:	Cisco Catalyst IE3400 Rugged Series Advanced Expansion Module – expansion module – Gigabit Ethernet x 8
  Device Type:	Expansion module
  Form Factor:	DIN rail mountable
  Ports:	Gigabit Ethernet x 8
  Dimensions (WxDxH):	2.4 in x 5.3 in x 6 in
  Weight:	31.04 oz
  Cabling Type:	Ethernet 1000Base-T
  Data Link Protocol:	GigE
  Capacity:	IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ Spanning Tree Protocol instances: 128 ¦ ACL: 1500
  MAC Address Table Size:	8000 entries
  Network / Transport Protocol:	TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
  RAM:	4 GB
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
  Power:	DC 9.6 – 60 V
  Designed For:	Catalyst IE3400 Rugged Series

• General

  Device Type:	Expansion module
  Form Factor:	DIN rail mountable

• Networking

  Ports:	Gigabit Ethernet x 8
  Connectivity Technology:	Wired
  Cabling Type:	Ethernet 1000Base-T
  Data Link Protocol:	Gigabit Ethernet
  Capacity:	IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ Spanning Tree Protocol instances: 128 ¦ ACL: 1500
  MAC Address Table Size:	8000 entries
  Network / Transport Protocol:	TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
  Remote Management Protocol:	SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NETCONF, RESTCONF, NTP, ICMP, DHCP, RSTP, YANG, TACACS+, RADIUS
  Features:	IGMP snooping, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, static routing, Flexible NetFlow (FNF), Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, IGMP querier, Voice VLAN, Guest VLAN, Switched Port Analyzer (SPAN), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, 802.1x filtering, VLAN Trunking Protocol (VTP) v.2, EtherChannel support
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

• Processor / Memory

  RAM:	4 GB
  Flash Memory:	1.5 GB
  Supported Memory Cards:	SD Memory Card

• Expansion / Connectivity

  Interfaces:

  8 x 1000Base-T – RJ-45

• Miscellaneous

  MTBF:

  3,385,166 hours

  Compliant Standards:

  CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 61000-4-17, CAN/CSA C22.2 No. 213, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, CSA 62368-1, CB 62368-1

• Power

  Voltage Required:	DC 9.6 – 60 V
  Power Consumption Operational:	12 Watt

• Dimensions & Weight

  Width:	2.4 in
  Depth:	5.3 in
  Height:	6 in
  Weight:	31.04 oz
