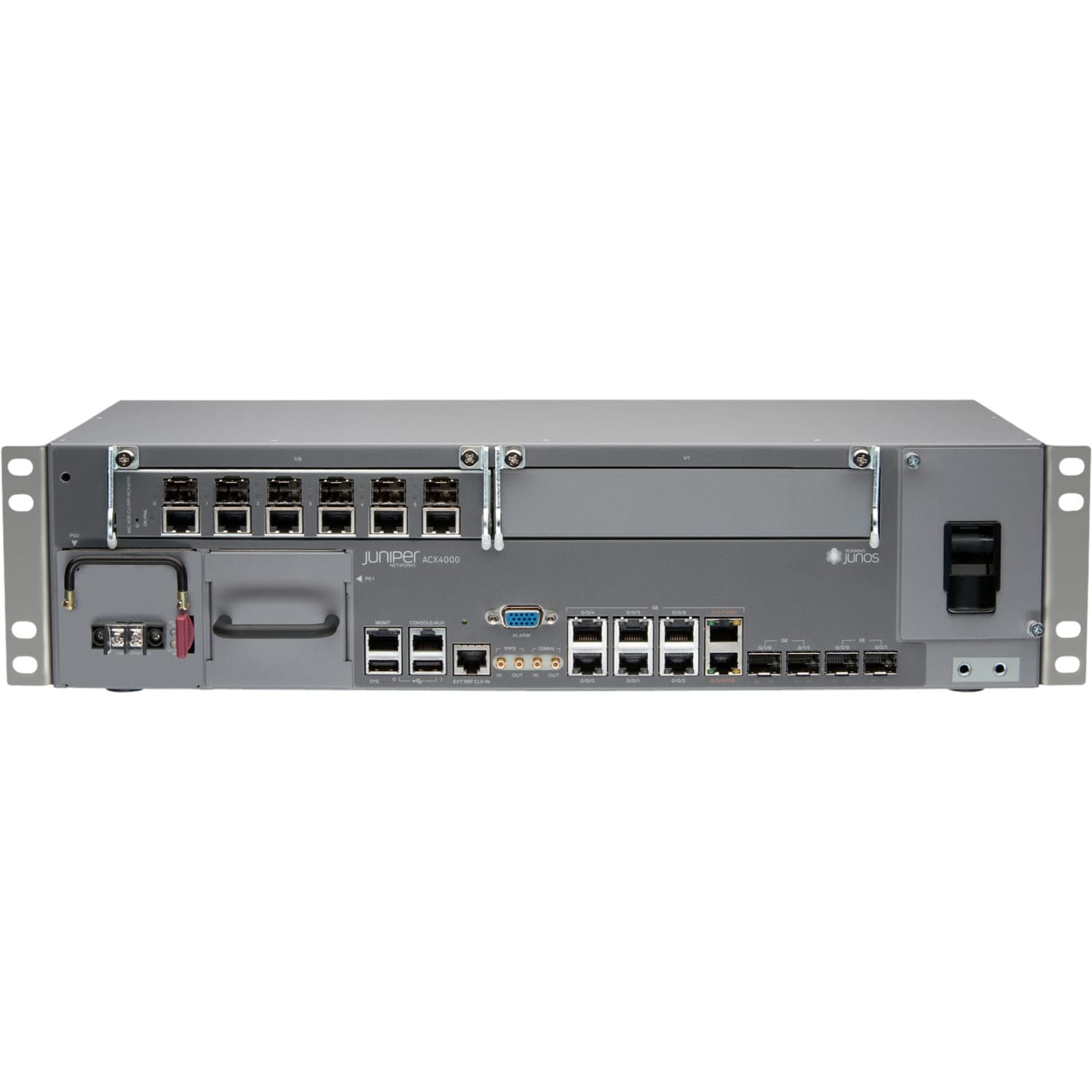

Juniper CHAS-ACX4000-S Router Chassis

Name: Juniper CHAS-ACX4000-S Router Chassis
Brand: Juniper
SKU: CHAS-ACX4000-S
Price: 12978.63 USD
Availability: InStock

Original price was: $17,010.00.Current price is: $12,978.63.

Juniper ACX4000 Universal Access Router – 8 Ports – 8 RJ-45 Port(s) – PoE Ports – Management Port – 6 – 2U – Rack-mountable – 1 Year

Condition: NEW

Availability: Direct from Manufacturer

Questions? Call (984) 225-1600

SKU: CHAS-ACX4000-S Categories: Juniper, Routers

Description

Juniper ACX4000 Universal Access Router – 8 Ports – 8 RJ-45 Port(s) – PoE Ports – Management Port – 6 – 2U – Rack-mountable – 1 Year

Features management port for a reliable networking
Built-in power supply to ensure all components are being supplied with accurate voltage

The ACX4000 platform for the Universal Access solution is an environmentally hardened, actively cooled, 2.5 RU modular, system that includes TDM (T1/E1, CHOC3/STM-1) ports, combination copper/fiber GbE ports, and 10GbE SFP+ interfaces, to provide a versatile access platform.

The ACX4000 is one of a family of next generation access routers that addresses the new network imperatives with an industry-leading performance of up to 60Gbps, while enabling a seamless end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.

General Information

Manufacturer	Juniper Networks, Inc
Manufacturer Part Number	CHAS-ACX4000-S
Manufacturer Website Address	http://www.juniper.net
Brand Name	Juniper
Product Series	ACX
Product Model	4000
Product Name	ACX4000 Universal Access Router
Product Type	Router Chassis

Interfaces/Ports

Total Number of Ports	8
USB	No
Powerline	No
Management Port	Yes
Token Ring Port	No
Serial V.35 Interface	No
Number of Network (RJ-45) Ports	8

I/O Expansions

Number of Total Expansion Slots	6
Expansion Slot Type	SFP+ SFP (mini-GBIC)

Power Description

PoE (RJ-45) Port	Yes
Input Voltage	110 V AC 220 V AC
Power Source	Power Supply

Physical Characteristics

Compatible Rack Unit	2U
Form Factor	Rack-mountable
Height	4.4″
Width	17.5″
Depth	9.3″
Weight (Approximate)	23.80 lb

Miscellaneous

Certifications & Standards

Safety:

CAN/CSA-C22.2 No. 60950-1
UL 60950-1
EN 60950-1
IEC 60950-1 – CB Scheme
EN 60825-1

EMC:

AS/NZS CISPR22 Class A
EN55022 Class A
VCCI Class B
FCC Part 15 Class A

Immunity:

EN-61000-3-2 Power Line Harmonics
EN-61000-3-3 Voltage Fluctuations and Flicker
EN-61000-4-3 Radiated Immunity
EN-61000-4-4 EFT
EN-61000-4-5 Surge
EN-61000-4-6 Low Frequency Common Immunity
EN-61000-4-11 Voltage Dips and Sags

ETSI:

EN300386-2
EN 300 019-2-1 (2000) – Storage, Class T1.2
EN 300 019-2-2 (1999) – Transportation, Class T2.3
EN 300 019-2-3 (2003) – Stationary Use at Weather-protected Locations, Class T3.2
EN 300 019-2-4 (2003) – Stationary Use at Non-weather Protected Locations, Class 4.2H
ETS 300753 (1997) – Acoustic Noise Emitted by Telecommunications Equipment

NEBS:

SR-3580 NEBS Criteria Levels (Level 3 Compliance)
GR-63-CORE: NEBS, Physical Protection
GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 Compliant)
GR-3108-CORE: Generic Requirements for Network Equipment in
the Outside Plant (OSP)

Telecomm Compliance:
