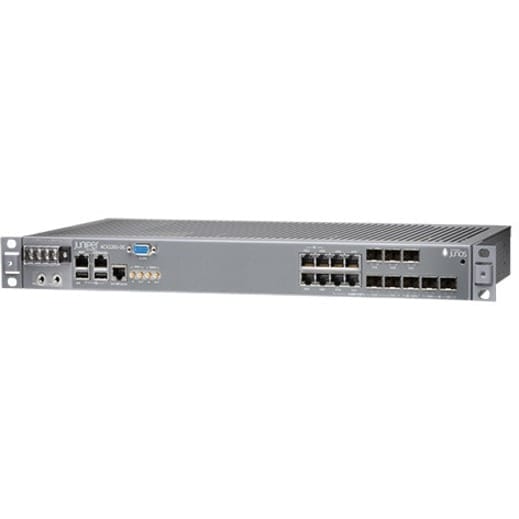

Juniper ACX2200 Router – 8 Ports – 8 RJ-45 Port(s) – Management Port – 8 – 10 Gigabit Ethernet – 1U – Rack-mountable – 1 Year
- Offers high performance and reliable connectivity to the Internet and other offices
- With 1000Base-X technology, get up to 1000 mbps data transfer rate over supported network cable
- Features management port for a reliable networking
- Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity
- Built-in power supply to ensure all components are being supplied with accurate voltage
The compact, Ethernet only environmentally-hardened ACX2200 router with fanless passive cooling has a fixed port configuration that includes four copper 10/100/1000Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.
A built-in service engine makes the ACX2200 fully customizable and future-proof for LTE-A and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.
General Information
Manufacturer | Juniper Networks, Inc |
Manufacturer Part Number | ACX2200-AC |
Manufacturer Website Address | http://www.juniper.net |
Brand Name | Juniper |
Product Series | ACX |
Product Model | ACX2200 |
Product Name | ACX2200 Router |
Product Type | Router |
Interfaces/Ports
Total Number of Ports | 8 |
USB | Yes |
Powerline | No |
Management Port | Yes |
Token Ring Port | No |
Serial V.35 Interface | No |
Number of Network (RJ-45) Ports | 8 |
I/O Expansions
Number of Total Expansion Slots | 8 |
Expansion Slot Type |
|
Network & Communication
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology |
|
Power Description
PoE (RJ-45) Port | No |
Input Voltage |
|
Redundant Power Supply Supported | Yes |
Power Source | Power Supply |
Physical Characteristics
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 1.8″ |
Width | 17.5″ |
Depth | 9.4″ |
Weight (Approximate) | 8.30 lb |
Miscellaneous
Certifications & Standards | Safety:
EMC:
Immunity:
|
Environmentally Friendly | Yes |
Warranty
Limited Warranty | 1 Year |
