Juniper SRX1500-AC Firewall

Name: Juniper SRX1500-AC Firewall
Brand: Juniper
SKU: SRX1500-AC

Discontinued by Juniper Ask about availability or the current replacement

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

Mid-range SRX1500 branch and campus firewall with 12 RJ-45, 4 SFP and 4 SFP+ ports on AC power, 9 Gbps of firewall throughput and 2,000,000 sessions.

SKU: SRX1500-AC Categories: Juniper, Security

Support & Licensing for the SRX1500-AC

Add Juniper Care support and Juniper software licenses when you order the SRX1500-AC. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the SRX1500-AC. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-SRX1500HW
$810 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-SRX1500HW
$901 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-SRX1500HW
$1,713 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-SRX1500HW
$1,262 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-SRX1500HW
$2,253 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Software licenses optional

Juniper licenses that unlock extra features on this model. Each card shows the terms in stock.

1 Incremental Logical System License

SRX-1500-LSYS-1/5

1 yr $1,410 5 yr $6,948

Enhanced Web Filtering

SRX1500-W-EWF-1/3/5

1 yr $5,977 3 yr $16,002 5 yr $25,144

IPS signature updates

SRX1500-IPS-1/3/5

1 yr $5,977 3 yr $16,002 5 yr $25,144

IPS, AppSecure, SkyATP, Sec Intel

S-SRX1500-P1-1/3/5

1 yr $13,147 3 yr $26,290 5 yr $39,434

IPS, AppSecure, URL Filtering, Cloud AV and AS, SKYATP, Sec Intel

S-SRX1500-P2-1/3/5

1 yr $12,399 3 yr $24,796 5 yr $37,192

IPS, AppSecure, URLF, AV, SkyATP, Sec Intel

S-SRX1500-P3-1/3/5

1 yr $12,399 3 yr $24,796 5 yr $37,192

IPS, SecIntel and AppSecure

S-SRX1500-A1-1/3/5

1 yr $5,584 3 yr $11,168 5 yr $16,749

IPS, SecIntel, AppSecure, URL Filtering, AV

S-SRX1500-A3-1/3/5

1 yr $9,099 3 yr $18,195 5 yr $27,294

IPS, SecIntel, AppSecure, URL Filtering, Cloud AV and AS

S-SRX1500-A2-1/3/5

1 yr $9,099 3 yr $18,195 5 yr $27,294

Juniper Secure Edge (JSE)

SRX1500-JSE

Perpetual $14,311

Sky ATP Threat Intelligence Feeds only (no file processing)

SRX1500-THRTFEED-1/3/5

1 yr $1,322 3 yr $2,638 5 yr $5,279

Description

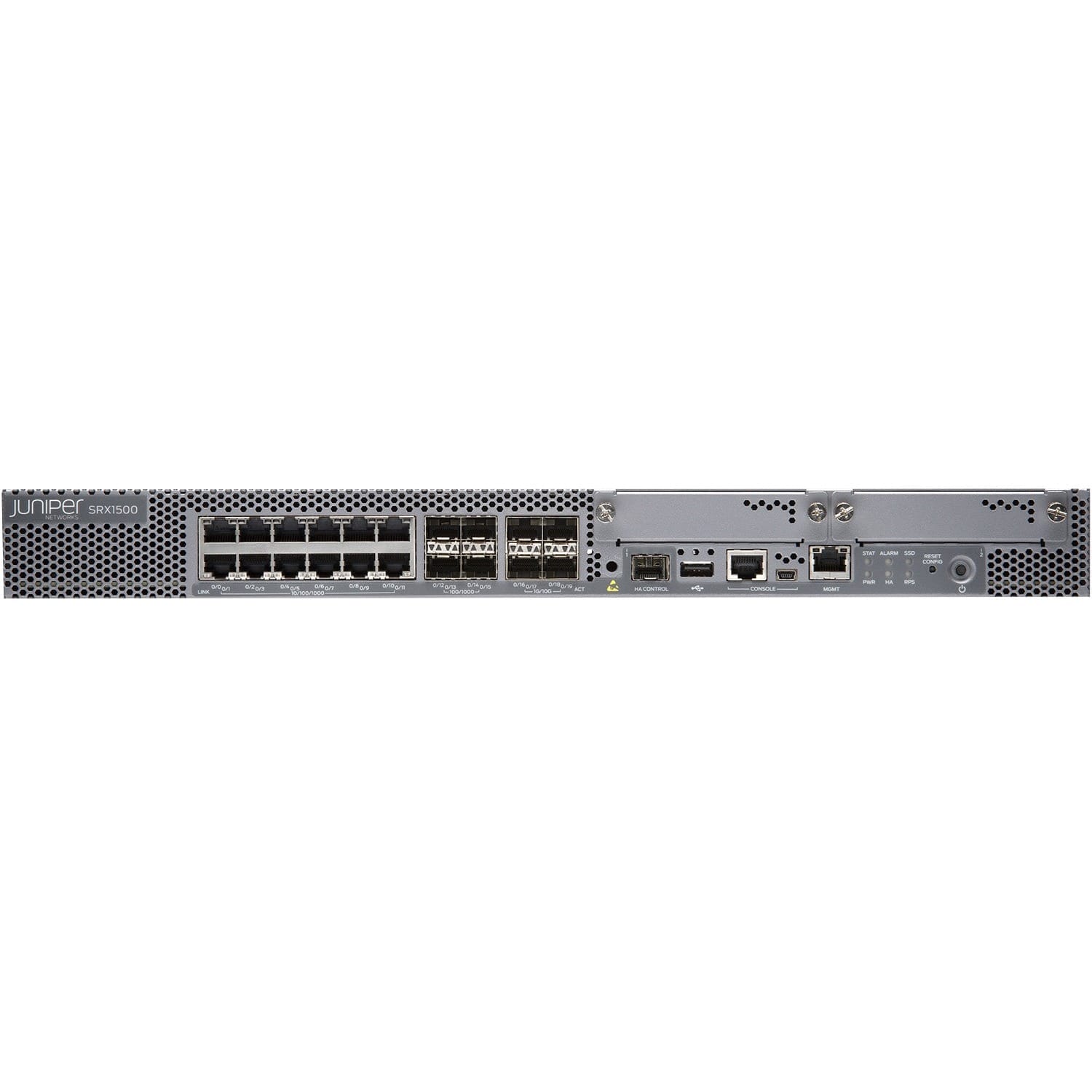

About the SRX1500-AC

The SRX1500-AC is the plain AC hardware version of the SRX1500 firewall. It has 12 RJ-45 ports, 4 SFP ports and 4 SFP+ ports, and 16 GB of memory.

It is rated at 9 Gbps of firewall throughput (1518B), 4.5 Gbps IMIX, 1 Gbps of IPsec VPN (IMIX), 7 Gbps of NGFW throughput and 2,000,000 concurrent sessions. Airflow is front-to-back, and the chassis is built for hot-swappable 1+1 power supplies.

What’s included

SRX1500 gateway, AC model, with 12 RJ-45, 4 SFP and 4 SFP+ ports and front-to-back airflow

Sold separately

Feature licenses for this model, listed in Support & Licensing above

Choosing a version

SRX1500-AC (this page): hardware configuration, AC power, front-to-back airflow
SRX1500-CHAS: spare chassis only
SRX1500-DC: hardware configuration, DC power, front-to-back airflow
SRX1500-SYS-JB-DC: SYS-JB configuration, DC power, front-to-back airflow
SRX1500-SYS-JE-AC: SYS-JE configuration, AC power, front-to-back airflow
SRX1500-SYS-JE-DC: SYS-JE configuration, DC power, front-to-back airflow
SRX1500-SYSJB-AC-T: SYS-JB configuration, AC power, front-to-back airflow

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

SRX1500-AC specifications

Network ports	12x RJ-45, 4x SFP, 4x SFP+
Firewall throughput (1518B)	9 Gbps
Firewall throughput (IMIX)	4.5 Gbps
IPsec VPN throughput (IMIX)	1 Gbps
NGFW throughput	7 Gbps
Concurrent sessions (thousands)	2000
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.74 x 17.28 x 18.2 in (4.4 x 43.9 x 46.2 cm)
Weight (as shipped)	15 lb / 6.8 kg
Airflow	Front-to-back
Power supplies	2 (1+1 redundant, hot-swappable)
CPU	Intel Xeon 8-core 2.5 GHz
Memory	16 GB
Storage	120 GB SSD
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (55)

Network ports

RJ-45 Ports	12
SFP Ports	4
SFP+ Ports	4

Management and other ports

Console Ports	2
Console Port Type	RJ-45, Mini USB Type B
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	Type A

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.74 in / 4.4196 cm
Chassis Width	17.28 in / 43.8912 cm
Chassis Depth	18.2 in / 46.228 cm
Chassis depth (with power supplies and fans)	19.9 in / 50.546 cm
Weight (as shipped)	15 lb / 6.8 kg
Weight (fully loaded)	16.1 lb / 7.3 kg

Power

Power supplies	2
Power supply redundancy	1+1
Power supply airflow	Front-to-back
Hot-swappable power supplies	Yes
AC PSU Average Heat Dissipation	512 BTU/h
Maximum Current Consumption	2.5 A

Cooling

Airflow Direction	Front-to-back
Fan trays	1

Processor

CPU	Intel Xeon 8-core 2.5 GHz
Memory (DRAM)	16 GB

Storage

Internal Storage Size	120 GB
Internal Storage Type	SSD

Routing engines and fabric

PIM Slots	2

High availability

HA / Virtual Chassis ports	1
HA / Virtual Chassis port type	SFP

Security performance

Firewall Throughput (1518B)	9 Gbps
Firewall Throughput (IMIX)	4.5 Gbps
IPsec VPN Throughput (1400B)	4 Gbps
IPsec VPN Throughput (IMIX)	1 Gbps
Advanced Threat Protection (CPS)	1 Gbps
Application Security Performance (CPS)	4 Gbps
Application Security Performance (TPS)	7.5 Gbps
NGFW Performance (CPS)	2 Gbps
NGFW Performance (TPS)	7 Gbps
Secure Web Access Firewall (CPS)	2 Gbps

Performance

Route Table Size (RIB) (IPv4) (thousands)	2000
Route Table Size (FIB) (IPv4) (thousands)	1000
SSL Connections Per Second	1600
Max Concurrent Sessions (IPv4/IPv6) (thousands)	2000
IPsec VPN Tunnels	2000

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-40° through 158° F / -40° through 70° C
Operating Altitude	10000 ft (3040 m)
Humidity, operating (noncondensing)	10% through 90%
Humidity, non-operating (noncondensing)	5% through 95%
Acoustic Noise Level (Max)	66.5 dB
Maintenance Clearance	17.4 in / 44.196 cm

Software

Operating system	Junos OS

Common questions

What throughput can I expect from the SRX1500?

It is rated at 9 Gbps of firewall throughput with 1518B packets, 4.5 Gbps with IMIX, and 7 Gbps of NGFW throughput.

How many sessions does it handle?

It handles 2,000,000 concurrent sessions and 1 Gbps of IPsec VPN throughput under IMIX.

Is the AC model different from the DC model?

Only in power input. The ports and throughput are the same on the SRX1500-DC.
