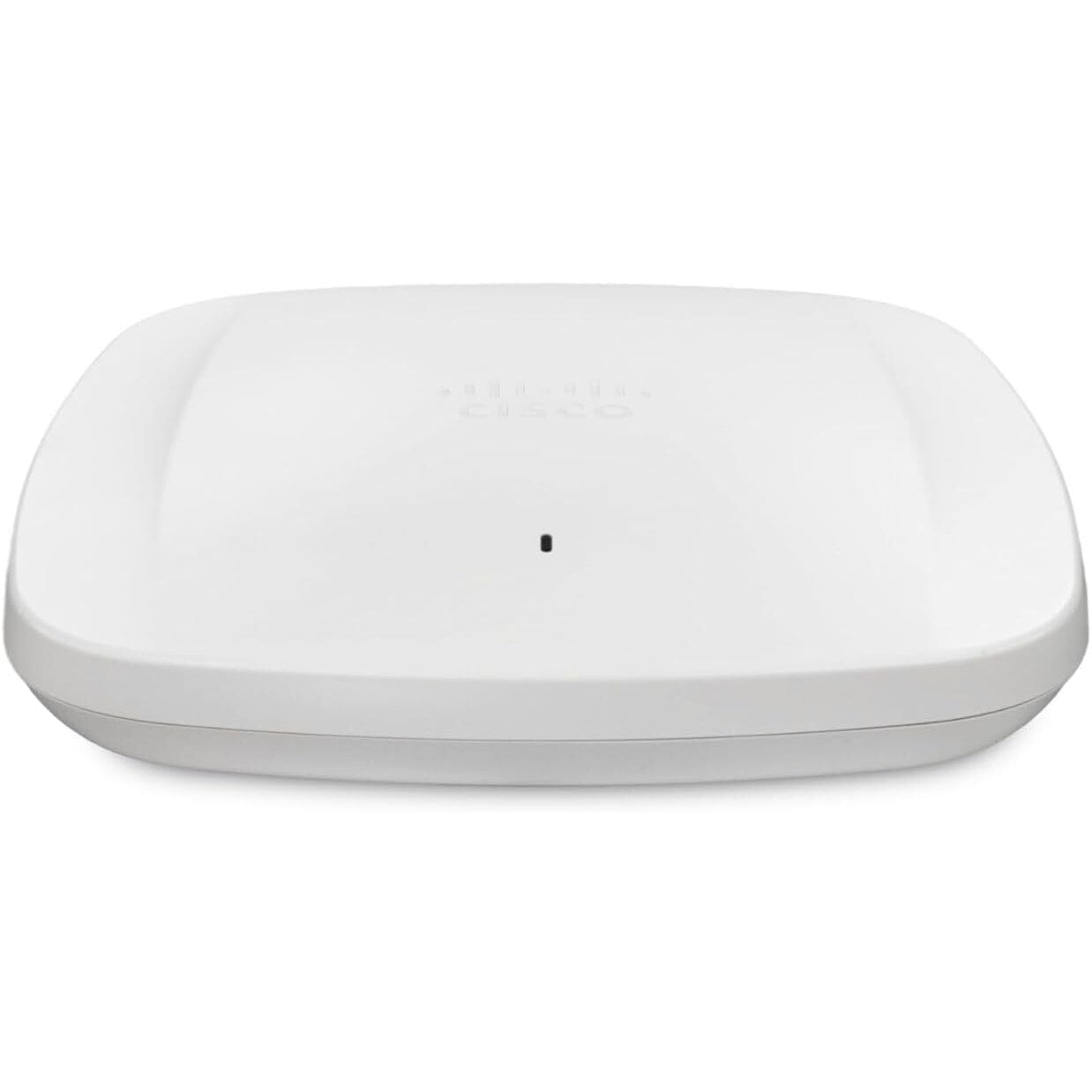

Meraki CW9166I-MR Wi-Fi 6E Indoor Access Point – Tri-band 4×4, 5G Uplink
$1,250.00List price: $2,507.48
In stock (4) Ships today if ordered by 3 PM ET
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.
About the CW9166I-MR
The CW9166I-MR covers all three Wi-Fi 6E bands with 4×4 radios, one each on 2.4, 5 and 6 GHz. Its aggregate frame rate is 7.78 Gbps, its antennas are internal omni, and it is managed from the Meraki Dashboard.
Its RJ-45 uplink runs at 1G, 2.5G or 5G. On 802.3at PoE+ it draws 25 W with USB off; 802.3bt or UPOE at 30.5 W powers it with USB on, and a 54 V DC adapter is the alternative. The MA-PWR-50WAC adapter and the AIR-PWRINJ6, AIR-PWRINJ7 and MA-INJ-6 injectors fit it.
The AIR-AP-BRACKET-2 bracket is included, and AIR-AP-BRACKET-1 also fits. It mounts on a desk, ceiling, wall or pole, fits flush or recessed ceiling tile rails, and operates from 32 to 122°F (0 to 50°C).
What’s included
- CW9166I-MR access point, managed from the Meraki Dashboard
- AIR-AP-BRACKET-2 mounting bracket
Sold separately
- A PoE+ or UPOE injector, or a 54 V DC adapter, where the switch port does not supply enough power
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
CW9166I-MR specifications
| Wi-Fi standard | 802.11ax (Wi-Fi 6E), tri-band 2.4/5/6 GHz |
|---|---|
| Radios / spatial streams | 4x4 on each band (2.4, 5 and 6 GHz) |
| Max data rate | 7.78 Gbps aggregate frame rate |
| Uplink port | 1× 1G/2.5G/5G RJ-45 |
| Power (PoE class) | 802.3at PoE+ (25 W, USB off) or 802.3bt / UPOE (30.5 W with USB); 54 V DC adapter alternative |
| Antennas (internal/external) | Internal omni |
| Indoor/outdoor | Indoor |
| Management | Meraki Dashboard |
Full specifications (5)
Power and PoE
| Power accessories | PoE injector and DC adapter sold separately |
|---|
Physical
| Mounting | All; Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included); Articulating; Arm (CW-MNT-ART2-00 optional); Desktop, ceiling, wall, and pole mount capable; Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes |
|---|---|
| Dimensions | 9.5 × 9.5 × 2.2 in (241.3 × 241.3 × 56.9 mm) |
| Weight | 3.54 lb (1.60 kg) |
Environment
| Operating temperature | 32 to 122°F (0 to 50°C) |
|---|
Compatible parts
| Power adapters | ||
|---|---|---|
| MA-PWR-50WAC | 50 W AC power adapter | $61.09 |
| PoE injectors | ||
| AIR-PWRINJ6 | Cisco 802.3at power injector | $79.24 |
| AIR-PWRINJ7 | Cisco 802.3bt power injector, 5G mGig | $211.24 |
| MA-INJ-6 | Maximum output power: 60W | $219.99 |
| Mounting brackets | ||
| AIR-AP-BRACKET-1 | Low-profile mounting bracket | $11.16 |
| AIR-AP-BRACKET-2 | Universal mounting bracket | $11.16 |
Common questions
Does the CW9166I-MR need UPOE?
Not to run. It works on 802.3at PoE+ at 25 W with USB off; 802.3bt or UPOE (30.5 W) is needed for USB.
What uplink speeds does the CW9166I-MR support?
1G, 2.5G and 5G on one RJ-45 port.
Which bands does the CW9166I-MR use?
All three: 2.4, 5 and 6 GHz, each with a 4×4 radio.
