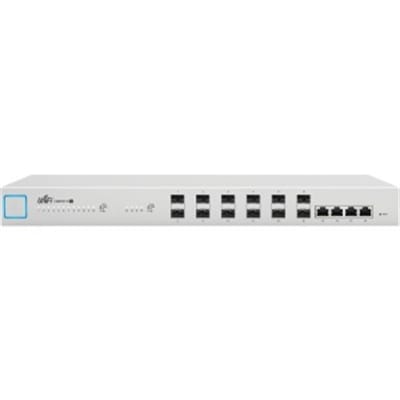

Ubiquiti Networks UniFi US-16-XG network switch Managed L2 10G Ethernet (100/1000/10000) 1U Gray

Ubiquiti Networks UniFi US-16-XG  is a layer 2 aggregation switch with (12) 10G SFP+ ports and (4) 10GbE RJ45 ports.

The Switch XG 16 (US XG 16) is a fully managed, Layer 2 switch with (12) 10G SFP+ ports and (4) 10GbE RJ45 ports. Its 320 Gbps switching capacity and 160 Gbps total, non-blocking line rate make it an ideal aggregation switch for your core network. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Marketing Information:   10G Aggregation Switch for Enterprise Networks

Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.

10 Gbps Deployment Example

Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.

20 Gbps Deployment Example

Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

10G High-Capacity Links

The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.

Seamless Integration

The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations – all controlled from a single interface.

Product Type:   Ethernet Switch

US-16-XG
Dimensions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)
Weight Without Mount Brackets With Mount Brackets	2.62 kg (5.78 lb) 2.71 kg (5.97 lb)
Total Non-Blocking Line Rate	160 Gbps
Switching Capacity	320 Gbps
Forwarding Rate	238.10 Mpps
Max. DC Power Consumption	36W (excludes SFP/SFP+ modules)
Power Method AC DC	100-240VAC/50-60 Hz, Universal Input DC 56W, 57 to 20V, with 48/24VDC Terminal Block
Power Supply	AC/DC, Internal, 56W DC
Supported Voltage Range	AC: 100 to 240VAC DC: 57 to 20VDC
Rack-Mount	Yes, 1U High
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
LEDs Per Port	Speed/Link/Activity
Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3	1.0 dBr 10.7 dBr 12.2 dBr 12.8 dBr
Networking Interfaces	(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In-Band
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
