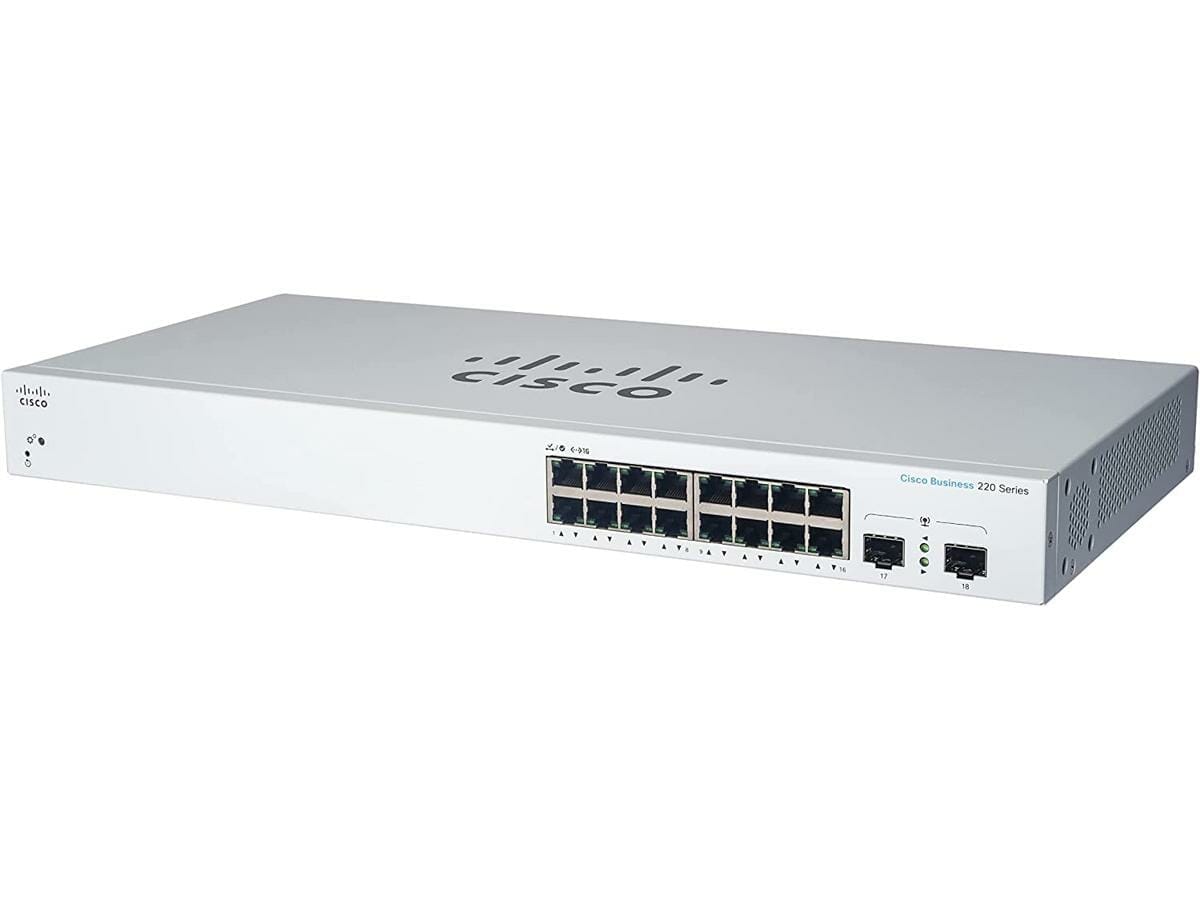

Cisco CBS220-16T-2G – Switch – smart – 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) – rack-mountable

The Cisco CBS220-16T-2G is a compact and versatile Ethernet switch designed for small to medium-sized businesses. It provides reliable and high-performance connectivity for a wide range of network devices, including computers, printers, IP phones, and surveillance cameras.

The switch features 16 Ethernet ports, all of which support Gigabit Ethernet connectivity. This ensures fast and efficient data transfer rates of up to 1 Gigabit per second (Gbps), enabling smooth and uninterrupted network performance.

With a total switching capacity of 36 Gbps, the CBS220-16T-2G can handle high volumes of data traffic, making it suitable for bandwidth-intensive applications. Whether you are transferring large files, streaming media, or accessing cloud-based services, the switch ensures fast and reliable connectivity.

The CBS220-16T-2G supports advanced features such as VLAN support, which allows you to segment your network into separate virtual networks. This enhances network security and traffic management by isolating and controlling data flow between different VLANs.

With its compact form factor, the CBS220-16T-2G is designed for easy installation in space-constrained environments. Its sturdy construction and fanless design ensure reliable and quiet operation, making it suitable for office environments or areas where noise is a concern.

In summary, the Cisco CBS220-16T-2G switch provides a reliable and efficient solution for small to medium-sized businesses seeking high-performance network connectivity. With its Gigabit Ethernet ports, advanced features, and energy-saving capabilities, it delivers seamless connectivity and enhanced network performance for a variety of devices and applications.

MAIN SPECIFICATIONS

Product Description Cisco Business 220 Series CBS220-16T-2G – switch – 18 ports – smart – rack-mountable Device Type Switch – 18 ports – smart Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) Performance Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps Capacity MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 MAC Address Table Size 8192 entries Jumbo Frame Support 9216 bytes Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS Features BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az Power AC 100-240 V (50/60 Hz) Dimensions (WxDxH) 17.3 in x 8 in x 1.7 in Weight 5.47 lbs



EXTENDED SPECIFICATIONS

General

Device Type Switch – 18 ports – smart Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 16 x 10/100/1000 + 2 x Gigabit SFP (uplink) Performance Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps Capacity MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 4.1 MAC Address Table Size 8192 entries Jumbo Frame Support 9216 bytes Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS Encryption Algorithm SSL Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) Features BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az RAM 256 MB Flash Memory 64 MB Status Indicators System, link/activity/speed

Expansion / Connectivity

Interfaces 16 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP uplink

Power

Power Device Internal power supply Voltage Required AC 100-240 V (50/60 Hz) Power Consumption Operational 11.4 Watt

Miscellaneous

Rack Mounting Kit Included MTBF 1,062,289 hours Compliant Standards C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A Localization Colombia, Canada, Chile, Mexico, Latin America, North America

Dimensions & Weight

Width 17.3 in Depth 8 in Height 1.7 in Weight 5.47 lbs
