CBS350-24FP-4X

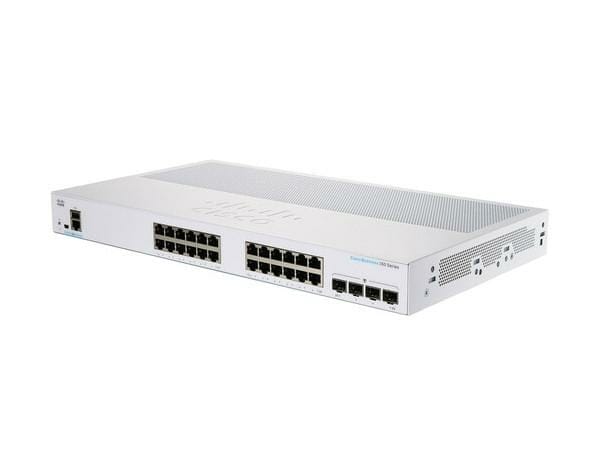

Name: Cisco CBS350-24FP-4X L3 Managed Switch - 10 Gigabit SFP+ PoE+
Brand: Cisco
SKU: CBS350-24FP-4X
Price: 1248.82 USD
Availability: InStock

$1,248.82

Cisco – Switch – L3 – managed – 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ – rack-mountable – PoE+ (370 W)

Availability: 10+ unit(s) In Stock

Questions? Call (984) 225-1600

SKU: CBS350-24FP-4X Categories: Cisco, Switches

Description

The Cisco CBS350-24FP-4X is a high-performance Ethernet switch designed for small to medium-sized business networks. It offers advanced features, Power over Ethernet (PoE) support, and versatile connectivity options for efficient and reliable network operations.

The CBS350-24FP-4X switch features 24 Gigabit Ethernet ports, providing fast and reliable connectivity for network devices such as computers, printers, and IP phones. These ports support data transfer at 10/100/1000 Mbps speeds, ensuring efficient data transmission within the network.

One of the key features of the CBS350-24FP-4X switch is its PoE support. It is capable of providing power to PoE-enabled devices such as IP phones, wireless access points, and IP cameras through its Ethernet ports. This eliminates the need for separate power sources and simplifies the installation of these devices.

In addition to the Gigabit Ethernet ports, the switch includes four 10 Gigabit Ethernet uplink ports, offering higher-speed connectivity options for network backbone or server connections. These uplink ports can accommodate bandwidth-intensive applications and provide increased throughput for data-intensive tasks.

Overall, the Cisco CBS350-24FP-4X switch is a reliable and feature-rich solution for small to medium-sized business networks. Its combination of Gigabit Ethernet ports, PoE support, 10 Gigabit Ethernet uplink ports, advanced switching capabilities, and enhanced security features make it an ideal choice for businesses seeking scalable and secure network connectivity.

MAIN SPECIFICATIONS

Product Description	Cisco Business 350 Series 350-24FP-4X – switch – 24 ports – managed – rack-mountable
Device Type	Switch – 24 ports – L3 – managed
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.23 Mpps
Capacity	Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
MAC Address Table Size	16K entries
Jumbo Frame Support	2KB
Routing Protocol	IGMP, policy-based routing (PBR), CIDR
Remote Management Protocol	SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
Features	DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	17.5 in x 13.6 in x 1.7 in
Weight	10.14 lbs

EXTENDED SPECIFICATIONS

General

Device Type	Switch – 24 ports – L3 – managed
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Switching capacity: 128 Gbps ¦ Forwarding performance (64-byte packet size): 95.23 Mpps
Capacity	Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB
MAC Address Table Size	16K entries
Jumbo Frame Support	2KB
Routing Protocol	IGMP, policy-based routing (PBR), CIDR
Remote Management Protocol	SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Status, link/activity

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

Power

Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit	Included
MTBF	698,220 hours
Compliant Standards	UL 60950, CSA C22.2, FCC CFR47, USGv6
Localization	Colombia, Canada, Chile, Mexico, Latin America, United States

Dimensions & Weight

Width	17.5 in
Depth	13.6 in
Height	1.7 in
Weight	10.14 lbs
