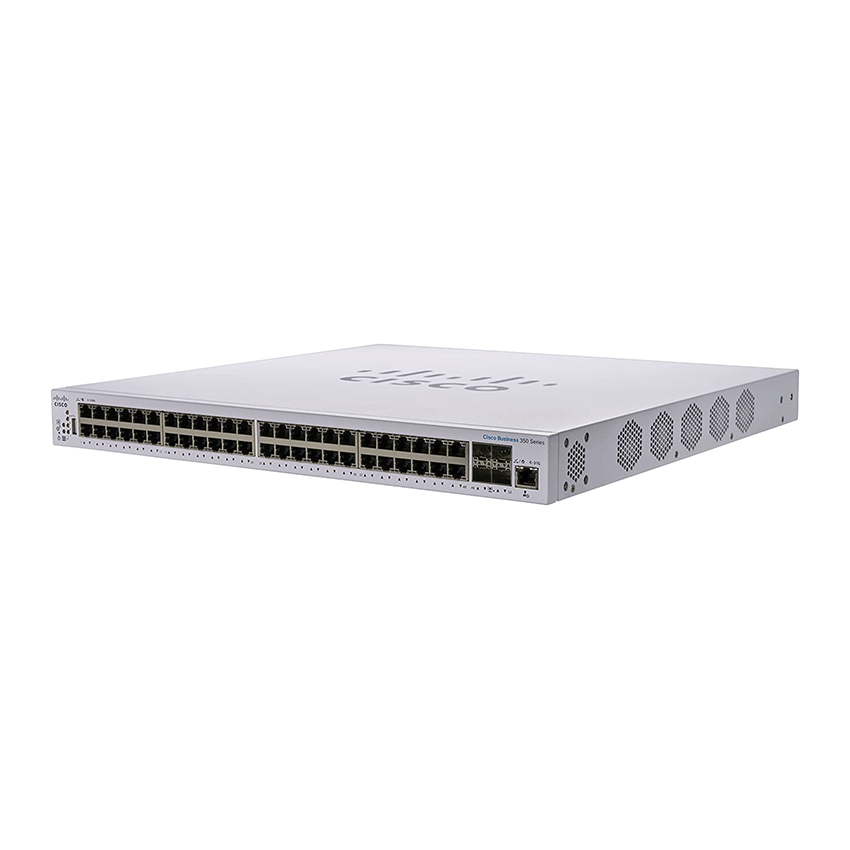

Cisco CBS350-48FP-4G – Switch – L3 – managed – 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+ – rack-mountable – PoE+ (740 W)

The Cisco CBS350-48FP-4G is a powerful and feature-rich Ethernet switch designed for small to medium-sized businesses. With its 48 Gigabit Ethernet ports and four Gigabit Ethernet uplink ports, this switch provides robust connectivity and high-speed data transfer capabilities for your network.

The CBS350-48FP-4G offers 48 Fast Ethernet ports with Power over Ethernet (PoE) support, allowing you to connect and power PoE-enabled devices such as IP phones, wireless access points, and security cameras without the need for additional power adapters or injectors. This simplifies the deployment and management of network devices and provides a cost-effective solution for powering your network infrastructure.

In addition to the 48 PoE ports, the switch also features four Gigabit Ethernet uplink ports for connecting to other switches, routers, or network devices. These uplink ports offer fast and reliable data transfer rates to ensure efficient communication between network segments.

The switch supports advanced Layer 2 switching features, including VLAN support, Spanning Tree Protocol (STP), and Quality of Service (QoS). These features enable network segmentation, prevent network loops, and prioritize critical applications, ensuring optimal performance and efficient bandwidth utilization.

With its durable and rack-mountable design, the CBS350-48FP-4G is easy to install in various network environments. It offers a fanless design for silent operation and features a compact form factor, making it suitable for small server rooms, office spaces, or network closets.

The “FP” in the model name indicates that this switch supports Power over Ethernet (PoE) on all 48 Ethernet ports, providing power to connected PoE devices. This eliminates the need for additional power sources and simplifies the deployment of network devices.

Overall, the Cisco CBS350-48FP-4G switch is a reliable and scalable solution for small to medium-sized businesses. With its abundant PoE ports, uplink capabilities, and advanced switching features, it delivers high-performance networking and power efficiency for your growing network infrastructure.

MAIN SPECIFICATIONS

Product Description Cisco Business 350 Series 350-48FP-4G – switch – 48 ports – managed – rack-mountable Device Type Switch – 48 ports – L3 – managed Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 740 W Performance Switching capacity: 104 Gbps ¦ Forwarding performance (64-byte packet size): 77.38 Mpps Capacity Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 3 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Routing Protocol IGMP, policy-based routing (PBR), CIDR Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP Features DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az Power AC 120/230 V (50/60 Hz) Dimensions (WxDxH) 17.5 in x 13.8 in x 1.7 in Weight 12.83 lbs



EXTENDED SPECIFICATIONS

General

Device Type Switch – 48 ports – L3 – managed Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 740 W Performance Switching capacity: 104 Gbps ¦ Forwarding performance (64-byte packet size): 77.38 Mpps Capacity Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 3 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Routing Protocol IGMP, policy-based routing (PBR), CIDR Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP Encryption Algorithm SSL Authentication Method Secure Shell (SSH), RADIUS, TACACS+ Features DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az Processor X ARM: 800 MHz RAM 512 MB Flash Memory 256 MB Status Indicators Status, link/activity

Expansion / Connectivity

Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x Gigabit LAN SFP+ ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

Power

Power Device Internal power supply Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included MTBF 856,301 hours Compliant Standards UL 60950, CSA C22.2, FCC CFR47, USGv6

Dimensions & Weight

Width 17.5 in Depth 13.8 in Height 1.7 in Weight 12.83 lbs
