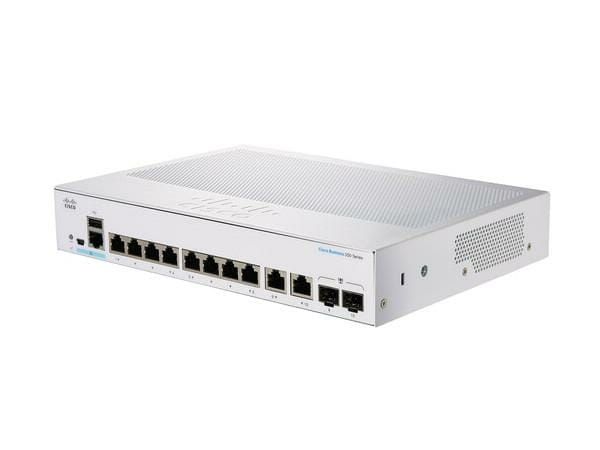

Cisco CBS350-8P-2G – Switch – L3 – managed – 8 x 10/100/1000 (PoE+) + 2 x combo SFP – rack-mountable – PoE+ (67 W)

Name: Cisco CBS350-8P-2G Switch - Managed L3, Rack-Mountable, PoE+
Brand: Cisco
SKU: CBS350-8P-2G
Price: 428.34 USD
Availability: OutOfStock

Original price was: $551.31.Current price is: $428.34.

On order Ask for price and lead time

ConditionNew

Warranty90 days

ShippingFree (US)

ReturnsRMA required · See policy

SKU: CBS350-8P-2G Categories: Cisco, Switches

Description

The Cisco CBS350-8P-2G is a compact and feature-rich managed Ethernet switch designed for small to medium-sized business networks. It offers advanced features, Power over Ethernet (PoE) capabilities, and a user-friendly interface for easy deployment and management.

The CBS350-8P-2G switch features eight Gigabit Ethernet ports, providing high-speed connectivity for network devices such as computers, printers, and IP phones. Additionally, it supports PoE on all eight ports, allowing for the simultaneous transmission of data and power to PoE-enabled devices, eliminating the need for separate power sources. This makes it ideal for powering devices like IP cameras, wireless access points, and VoIP phones, simplifying network installation and reducing cable clutter.

Overall, the Cisco CBS350-8P-2G switch is a reliable and feature-rich solution for small to medium-sized business networks. Its combination of Gigabit Ethernet ports, PoE capabilities, advanced switching features, and user-friendly management interface make it an ideal choice for businesses looking for a scalable and secure network infrastructure.

MAIN SPECIFICATIONS

Product Description	Cisco Business 350 Series 350-8P-2G – switch – 8 ports – managed – rack-mountable
Device Type	Switch – 8 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	67 W
Performance	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity	RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size	16K entries
Jumbo Frame Support	2KB
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Features	Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	10.6 in x 12.7 in x 1.7 in
Weight	7.72 lbs
Localization	Colombia, Canada, Chile, Mexico, Latin America, United States

EXTENDED SPECIFICATIONS

General

Device Type	Switch – 8 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	67 W
Performance	Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity	RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size	16K entries
Jumbo Frame Support	2KB
Max Units In A Stack	4
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Status, PoE, link/activity/speed

Expansion / Connectivity

Interfaces

8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

Power

Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	83.17 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	1,786,412 hours
Compliant Standards	UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization	Colombia, Canada, Chile, Mexico, Latin America, United States
