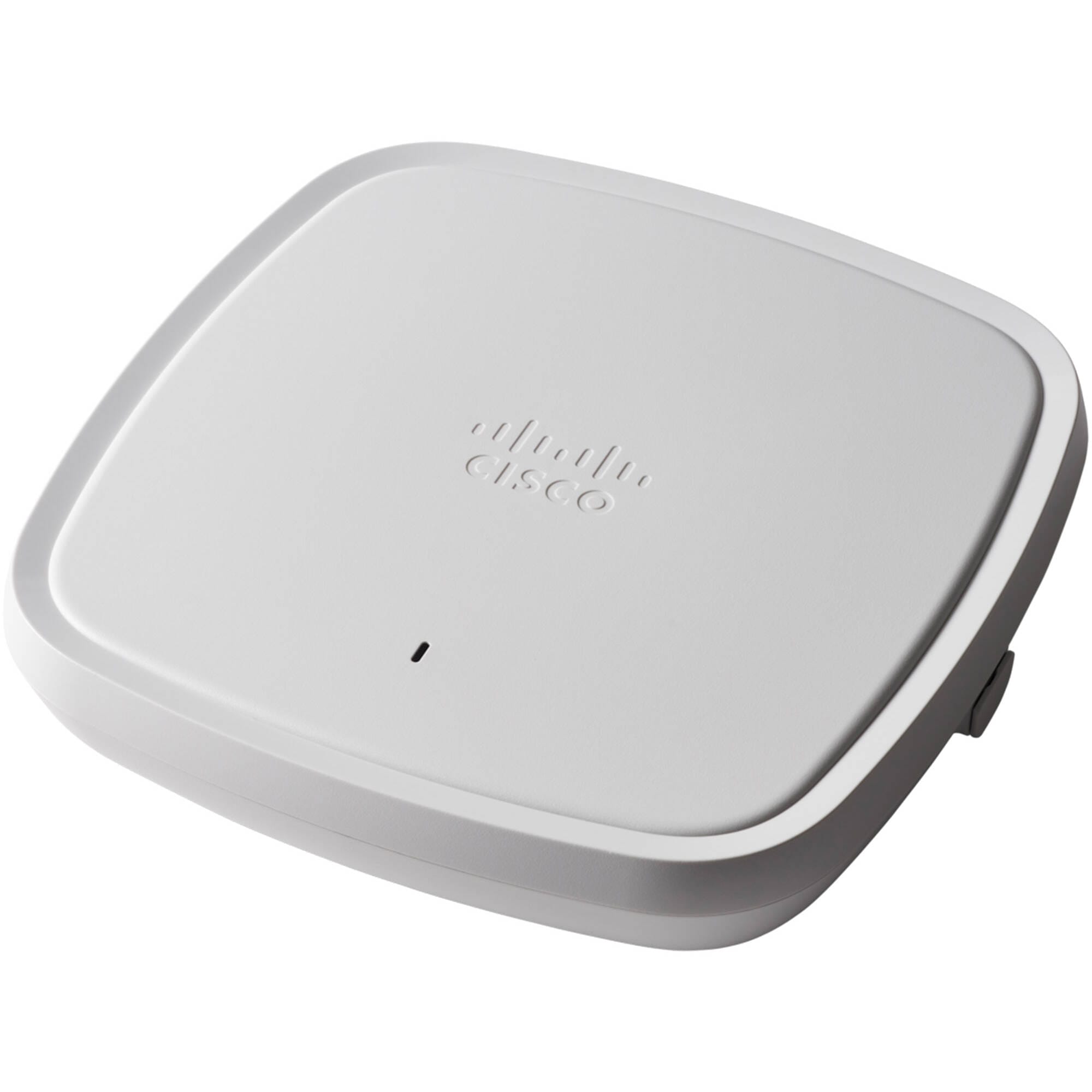

Cisco C9120AXI-B – Excess – Wireless access point – Bluetooth 5.0 – 802.15.4, Bluetooth, Wi-Fi 6 – 2.4 GHz, 5 GHz

The Cisco Catalyst 9120AXI-B is a high-performance Wi-Fi 6 access point designed for medium-sized businesses and branch offices. It delivers exceptional wireless connectivity with features like MU-MIMO and OFDMA, ensuring optimal performance in dense environments. Equipped with Bluetooth and IoT capabilities, the 9120AXI-B provides a comprehensive wireless solution for modern businesses.

The Catalyst C9120AXI-B Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a networkwide consistency through automation and virtualization.

• Primary Information Cisco Excess

  Product Description:	Cisco Catalyst 9120AXI – wireless access point – 802.15.4, Bluetooth, Wi-Fi 6
  Device Type:	Wireless access point
  Form Factor:	External – indoor
  RAM:	2 GB
  Flash Memory:	1 GB
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
  Frequency Band:	2.4 GHz, 5 GHz
  Power Over Ethernet (PoE) Supported:	UPOE
  Dimensions (WxDxH):	8.5 in x 8.5 in x 1.7 in
  Weight:	2.87 lbs

• General

  Device Type:	Wireless access point
  Ruggedized Design:	Indoor
  Width:	8.5 in
  Depth:	8.5 in
  Height:	1.7 in
  Weight:	2.87 lbs

• Processor / Memory / Storage

  RAM:	2 GB
  Flash Memory:	1 GB

• Networking

  Form Factor:	External
  Connectivity Technology:	Wireless
  Line Coding Format:	OFDMA
  Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
  Network / Transport Protocol:	IPSec, IPv6
  Remote Management Protocol:	NETCONF, RESTCONF
  Frequency Band:	2.4 GHz, 5 GHz
  Status Indicators:	Status
  Features:	DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4×4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module
  Encryption Algorithm:	AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
  Authentication Method:	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
  Compliant Standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6

• Antenna

  Antenna:	Internal
  Directivity:	Omni-directional

• Internet of Things (IoT)

  Internet of Things (IoT) Compatible:	Yes
  Communications Technology:	Bluetooth Low Energy (LE)

• Expansion / Connectivity

  Interfaces:

  1 x 1/2.5GBase-T – RJ-45 ¦ 1 x management – RJ-45 ¦ 1 x USB 2.0

• Miscellaneous

  Compliant Standards:

  CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN

• Power

  Power Over Ethernet (PoE) Supported:

  UPOE

• Software / System Requirements

  Software Included:

  CAPWAP Software Image

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	122 °F
  Humidity Range Operating:	10 – 90% (non-condensing)
