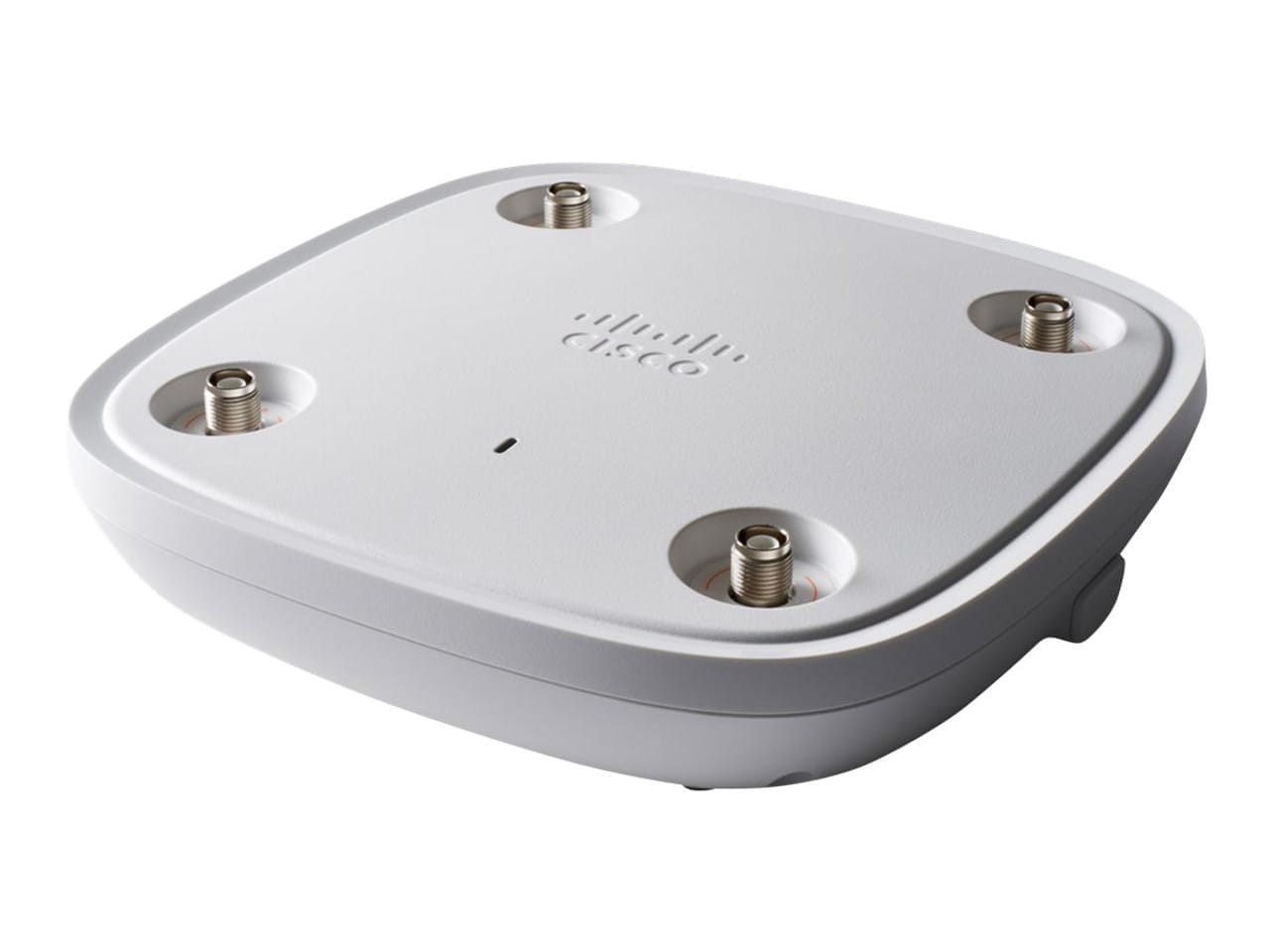

Cisco C9130AXE-B – Excess – Catalyst 9130AXE – Wireless access point – GigE, 5 GigE, 2.5 GigE – Bluetooth, Wi-Fi 6 – 2.4 GHz, 5 GHz

The Cisco C9130AXE-B series access points are enterprise access points. They are resilient, secure, and intelligent. Cisco Catalyst 9130 series APs provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 standard, the 9130 series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

C9130AXE-B is a high-performance Wi-Fi 6 access point designed for demanding environments. With advanced features like multi-gigabit Ethernet and Wi-Fi 6E, it delivers exceptional wireless connectivity and capacity. Built for businesses seeking superior performance and scalability, the 9130AXE-B offers robust security and seamless integration into existing network infrastructures.

The C9130AXE-B requires a purchase of additional antennas, compatible antennas: C-ANT9101=, C-ANT9102=, C-ANT9103=, AIR-ANT2513P4M-N=, AIR-ANT2524V4C-R=, AIR-ANT2524V4C-RS=, AIR-, NT2544V4M-R=, AIR-ANT2544V4M-RS=, AIR-ANT2566D4M-R=, AIR-ANT2566D4M-RS=, AIR-ANT2566P4W-R=, AIR-ANT2566P4W-RS=.

• Primary Information Cisco Excess

  Product Description:	Cisco Catalyst 9130AXE – wireless access point – Bluetooth, Wi-Fi 6
  Device Type:	Wireless access point
  Form Factor:	External – indoor
  Localization:	United States
  RAM:	2 GB
  Flash Memory:	1 GB
  Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
  Frequency Band:	2.4 GHz, 5 GHz
  Included Accessories:	Low profile bracket, ceiling grid clip
  Power Over Ethernet (PoE) Supported:	UPOE
  Dimensions (WxDxH):	9.2 in x 9.2 in x 1.6 in
  Weight:	3.77 lbs

• General

  Device Type:	Wireless access point
  Ruggedized Design:	Indoor
  Width:	9.2 in
  Depth:	9.2 in
  Height:	1.6 in
  Weight:	3.77 lbs
  Localization:	United States

• Processor / Memory / Storage

  RAM:	2 GB
  Flash Memory:	1 GB

• Networking

  Form Factor:	External
  Connectivity Technology:	Wireless
  Line Coding Format:	OFDMA
  Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
  Spread Spectrum Method:	OFDMA
  Frequency Band:	2.4 GHz, 5 GHz
  Status Indicators:	Status
  Features:	LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), secure boot, 8×8 MU-MIMO technology, Target Wait Time (TWT), Cisco Trust Anchor module, 4×4 MIMO technology
  Encryption Algorithm:	AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST
  Authentication Method:	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
  Compliant Standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6

• Antenna

  Antenna:

  External

• Internet of Things (IoT)

  Internet of Things (IoT) Compatible:	Yes
  Communications Technology:	Bluetooth Low Energy (LE), Zigbee

• Expansion / Connectivity

  Interfaces:

  1 x 1/2.5/5GBase-T (UPOE) – RJ-45 ¦ 1 x management – RJ-45 ¦ 1 x USB 2.0 ¦ Antenna – RF

• Miscellaneous

  Included Accessories:

  Low profile bracket, ceiling grid clip

  Compliant Standards:

  CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN 62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, CISPR 32, EN 55032, EN 61000-6-1:2007, EN 60601-1-2:2015, CAN/CSA-C22.2 No. 60950-1, EN 300 328 V2.1.1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1

• Power

  Power Over Ethernet (PoE) Supported:

  UPOE

• Environmental Parameters

  Min Operating Temperature:	-4 °F
  Max Operating Temperature:	122 °F
  Humidity Range Operating:	10 – 90% (non-condensing)
