    Home / Cisco / Switches
    Add to Wishlist

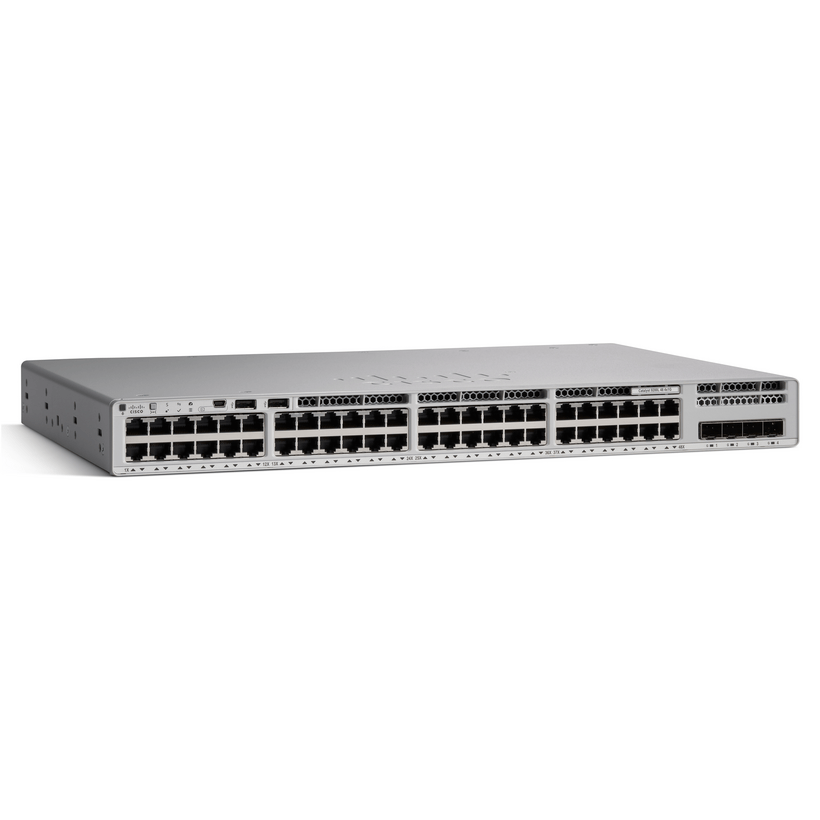

    Cisco-Excess-C9200L-48T-4G-E-WS

    Cisco C9200L-48T-4G-E – Excess – Switch – L3 – 48 x 10/100/1000 + 4 x Gigabit SFP (uplink) – rack-mountable

    $5,607.90 Original price was: $5,607.90.$933.28Current price is: $933.28.

    Condition: CERTIFIED REFURB

    Availability: On Order

    Questions? Call (984) 225-1600

    SKU: C9200L-48T-4G-E-WS Categories: Cisco, Excess, Switches
    Categories
    • Cisco
      • Access Points
      • Accessories
      • Excess
      • Firewalls
      • Industrial
        • Network Modules
        • Power Supplies
        • Security
        • Switches
      • Modules
      • Network Modules
      • Power Supplies
      • Routers
      • Switches
    • Fortinet
      • Security
    • HPE Networking
      • Instant On
        • Access Points
          • Accessories
          • AP11
          • AP11D
          • AP12
          • AP15
          • AP17
          • AP21
          • AP22
          • AP22D
          • AP25
          • AP27
          • AP32
        • Switches
          • 1430
          • 1830
          • 1930
          • 1960
        • Transceivers
      • Modules
      • Power Supplies
      • Switches
    • Juniper
      • License
      • Network Management
      • Routers
      • SDN
      • Security
      • Services
      • Switches
    • Meraki
      • Access Points
      • Accessories
      • Firewalls
      • Switches
    • Netgear
      • Switches
    • Tripp Lite
    • Ubiquiti
      • Access Points
      • Accessories
      • Modules
      • Power Supplies
      • Protect
      • Routers
      • Switches
      • Wireless
    • Description

    Product Configuration Includes:

    • PWR-C5-125WAC
    • C9200L-DNA-E-48-3Y
    • SmartNet Eligible
    • Factory Sealed

    The Cisco C9200L-48T-4G-E is a fixed-configuration, stackable switch that is part of the Cisco Catalyst 9200 series. This switch is designed for small and medium-sized businesses, as well as enterprise branch offices, and can be deployed in a variety of network environments.

    The C9200L-48T-4G-E switch has 48 Gigabit Ethernet (GbE) ports, providing high-speed connectivity to network devices such as computers, printers, and servers. The switch also has four Gigabit Ethernet uplink ports, allowing for fast connectivity to other switches and network devices. Additionally, the switch has security features such as access control lists (ACLs) and advanced network segmentation capabilities, providing robust protection against network threats.

    The C9200L-48T-4G-E switch supports Cisco’s StackWise-160 technology, which allows for up to nine switches to be stacked together, providing up to 216 ports in a single logical unit. This allows for easy scalability and management of a growing network. The switch also has an intuitive user interface and can be easily managed using Cisco’s network management tools, such as Cisco DNA Center and Cisco Prime.

    Overall, the Cisco C9200L-48T-4G-E 48-port switch is a versatile, high-performance switch that is ideal for organizations looking to upgrade their network infrastructure.

    MAIN SPECIFICATIONS

    Product Description Cisco Catalyst 9200L – Network Essentials – switch – 48 ports – rack-mountable
    Device Type Switch – 48 ports – L3 – stackable
    Enclosure Type Rack-mountable
    Subtype Gigabit Ethernet
    Ports 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
    Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 104 Gbps ¦ Forwarding rate: 154.76 Mpps
    Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
    MAC Address Table Size 16000 entries
    Jumbo Frame Support 9198 bytes
    Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
    Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
    Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
    Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
    Power AC 100-240 V (50 – 60 Hz)
    Power Redundancy Optional
    Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
    Weight 9.59 lbs

    EXTENDED SPECIFICATIONS

    General
    Device Type Switch – 48 ports – L3 – stackable
    Enclosure Type Rack-mountable
    Subtype Gigabit Ethernet
    Ports 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
    Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 104 Gbps ¦ Forwarding rate: 154.76 Mpps
    Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
    MAC Address Table Size 16000 entries
    Jumbo Frame Support 9198 bytes
    Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
    Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
    Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
    Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
    RAM 2 GB
    Flash Memory 4 GB
    Expansion / Connectivity
    Interfaces 48 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
    Power
    Power Device Internal power supply – hot-plug
    Max Supported Qty 2
    Power Redundancy Optional
    Voltage Required AC 100-240 V (50 – 60 Hz)
