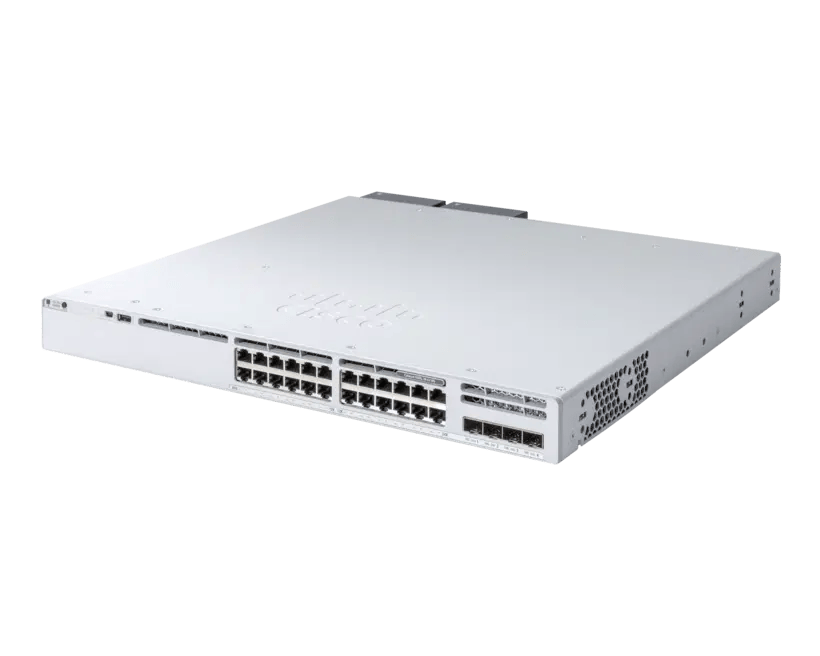

About the C9300L-24P-4X-A
The C9300L-24P-4X-A is a 24-port PoE+ Catalyst 9300L with four 10G/1G SFP+ uplinks built in. It runs Cisco IOS XE with the Network Advantage software tier in 1U. The C9300L-24P-4X-E is the same switch with Network Essentials.
The 10G uplinks lift switching capacity to 128 Gbps and forwarding to 95.23 Mpps, more than the C9300L-24P-4G-A with 1G uplinks. The SFP+ ports also take 1G optics, so you can move to 10G later without changing the switch.
The 715 W supply that comes with it gives 505 W of PoE; a second supply takes it up to 720 W and adds redundancy. Up to eight 9300L switches stack over StackWise-320 at 320 Gbps with the optional stack kit.
What’s included
- C9300L-24P-4X-A switch with 24 PoE+ ports, four 10G SFP+ uplinks and the Network Advantage software tier
- 715 W AC power supply (PWR-C1-715WAC-P)
Sold separately
- SFP+ or SFP transceivers for the uplinks
- A second power supply for redundancy and up to 720 W of PoE
- The C9300L-STACK-KIT or C9300L-STACK-KIT2 to stack it
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
C9300L-24P-4X-A specifications
| Downlink ports | 24× 10/100/1000 PoE+ |
|---|---|
| Uplink ports | 4× 10G/1G SFP+ (fixed) |
| PoE budget | 505 W with 1× PWR-C1-715WAC-P (default); up to 720 W with two power supplies |
| Stacking | StackWise-320, 320 Gbps with the optional stack kit; up to 8 members (stacks only with other 9300L / 9300LM) |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| Power supply | 715 W AC PWR-C1-715WAC-P included; second supply optional for redundancy/PoE |
| Form factor | 1U rack-mount; 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm) (H × W × D) with default power supply |
| Management | Cisco IOS XE (CLI, WebUI) |
| Feature tier | Network Advantage |
| Weight | 14.99 lb (6.81 kg) |
Other versions of this model
- C9300L-24P-4X-E Network Essentials$4,950.00 · In stock
- C9300L-24P-4X-E-WS Certified Refurbished$1,983.22
Compare Catalyst 9300L models
Swipe the table sideways to see every column.
| Model | Ports | Uplinks | PoE budget | Price |
|---|---|---|---|---|
| C9300L-24P-4X-A this page | 24× 10/100/1000 PoE+ | 4× 10G/1G SFP+ | 505 W | $3,655.00 |
| C9300L-24P-4G-A | 24× 10/100/1000 PoE+ | 4× 1G SFP | 505 W | $3,250.00 · In stock |
| C9300L-24T-4G-A | 24× 10/100/1000, data only | 4× 1G SFP | None | $3,500.00 |
| C9300L-24T-4X-A | 24× 10/100/1000, data only | 4× 10G/1G SFP+ | None | $3,045.00 |
| C9300L-48P-4G-A | 48× 10/100/1000 PoE+ | 4× 1G SFP | 505 W | $5,520.98 · In stock |
| C9300L-48P-4X-A | 48× 10/100/1000 PoE+ | 4× 10G/1G SFP+ | 505 W | $6,955.00 · In stock |
| C9300L-48T-4G-A-WS | 48× 10/100/1000, data only | 4× 1G SFP | None | $2,236.54 |
| C9300L-48T-4X-A | 48× 10/100/1000, data only | 4× 10G/1G SFP+ | None | $6,437.82 · In stock |
| C9300L-24UXG-4X-A | 8× 100M/1G/2.5G/5G/10G multigigabit + 16× 10M/100M/1G, all UPOE | 4× 10G/1G SFP+ | 880 W | Ask for a quote |
| C9300L-48PF-4G-A | 48× 10/100/1000 PoE+ (full PoE+ model) | 4× 1G SFP | 890 W | Ask for a quote |
| C9300L-48PF-4X-A | 48× 10/100/1000 PoE+ (full PoE+ model) | 4× 10G/1G SFP+ | 890 W | Ask for a quote |
| C9300L-48UXG-2Q-A | 12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE | 2× 40G QSFP | 675 W | Ask for a quote |
| C9300L-48UXG-4X-A | 12× 100M/1G/2.5G/5G/10G multigigabit + 36× 10M/100M/1G, all UPOE | 4× 10G/1G SFP+ | 675 W | Ask for a quote |
Compatible parts
| Power supplies | ||
|---|---|---|
| PWR-C1-350WAC-P | 350 W AC power supply | $334.24 · In stock |
| PWR-C1-715WAC-P | 715 W AC power supply | $595.00 · In stock |
| PWR-C1-715WDC | 715 W DC power supply | $375.00 |
| PWR-C1-1100WAC-P | 1100 W AC power supply | $650.00 |
| PWR-C1-1900WAC-P | 1900 W AC power supply | $1,314.00 |
| Stack kits | ||
| C9300L-STACK-KIT | StackWise-320 stacking, 320 Gbps | $550.00 · In stock |
| C9300L-STACK-KIT2 | StackWise-320 stacking, 320 Gbps | $659.53 |
| Stack cables | ||
| STACK-T3-50CM | Data stack cable for the C9300L-STACK-KIT, 50 cm | Ask for a quote |
| STACK-T3A-50CM | Data stack cable for the C9300L-STACK-KIT2, 50 cm | Ask for a quote |
| STACK-T3-1M | Data stack cable for the C9300L-STACK-KIT, 1 m | $101.08 |
| STACK-T3A-1M | Data stack cable for the C9300L-STACK-KIT2, 1 m | $101.08 |
| STACK-T3-3M | Data stack cable for the C9300L-STACK-KIT, 3 m | $151.62 |
| STACK-T3A-3M | Data stack cable for the C9300L-STACK-KIT2, 3 m | $151.62 |
| Fans | ||
| FAN-T2= | Fan | Ask for a quote |
Common questions
Do the C9300L-24P-4X-A uplinks run at 1G too?
Yes. The four SFP+ uplinks run at 10G or 1G.
Is a network module needed for 10G?
No. The 10G SFP+ uplinks are built into the switch.
Will it stack with 9300L models that have 1G uplinks?
Yes. All 9300L models stack together over StackWise-320 with a stack kit, up to eight per stack.
