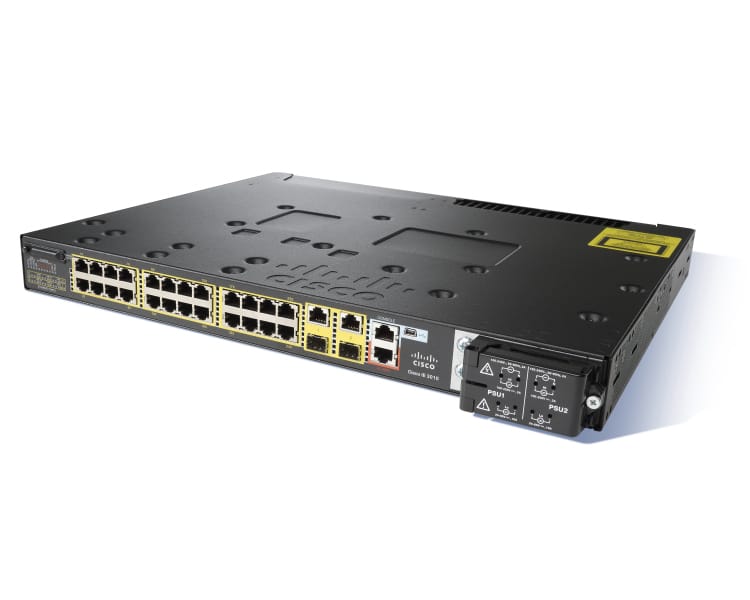

Cisco IE-3010-24TC IE3010 Industrial Switch – 24x 100M, 2x 1G Combo

About the IE-3010-24TC

The IE-3010-24TC is a 1U rack-mount switch with 24 10/100BASE-TX ports and two dual-purpose Gigabit uplinks. It has an 8 Gbps switching fabric and forwards 6.5 Mpps with 64-byte packets.

Power input is AC 100 to 240 VAC, low DC 24 to 60 VDC or high DC 100 to 250 VDC. The power supplies are the PWR-RGD-AC-DC and PWR-RGD-AC-DC/IA= (high AC/DC) and the PWR-RGD-LOW-DC and PWR-RGD-LOW-DC/IA (low DC). It weighs 9.1 lb (4.1 kg) without a power supply.

Continuous operation runs from -40 to +60°C and ingress protection is IP20. EN 50155 railway coverage applies mid-mount only. Manage it through the Cisco IOS CLI or Express Setup in a web browser.

What’s included

• IE-3010-24TC switch

Sold separately

• A power supply: PWR-RGD-AC-DC, PWR-RGD-AC-DC/IA=, PWR-RGD-LOW-DC or PWR-RGD-LOW-DC/IA

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

IE-3010-24TC specifications

Downlink ports	24× 10/100 (10/100BASE-TX)
Uplink ports	2× dual-purpose Gigabit uplinks
Switching capacity	8 Gbps switching fabric
Forwarding rate	6.5 Mpps (64-byte packets)
Power supply	AC 100–240 VAC, or low DC 24–60 VDC, or high DC 100–250 VDC input
Form factor	1U rack-mount; 1.75 × 17.5 × 14.0 in (4.45 × 44.5 × 35.6 cm) (H × W × D); 9.1 lb (4.1 kg) without power supply
Management	Cisco IOS CLI; Express Setup (web browser)
Operating temperature	-40 to +60°C (continuous operation)
Railway	EN 50155 (mid-mount only)
Ingress protection	IP20

Compatible parts

Power supplies
PWR-RGD-AC-DC	High AC/DC power supply	$565.00 · In stock
PWR-RGD-AC-DC/IA=	High AC/DC power supply	$377.20
PWR-RGD-LOW-DC	Low DC power supply	$355.65
PWR-RGD-LOW-DC/IA	Low DC	Ask for a quote
SD card
SD-IE-1GB=	1 GB SD flash memory card, spare	Ask for a quote
Accessory
MEM-SD-COVER-RGD=	SD flash slot cover, spare	Ask for a quote
RPS-CG-COVER=	Power supply slot cover, spare	Ask for a quote

Common questions

Which power supplies fit the IE-3010-24TC?

The high AC/DC PWR-RGD-AC-DC and PWR-RGD-AC-DC/IA=, and the low DC PWR-RGD-LOW-DC and PWR-RGD-LOW-DC/IA.

Does the IE-3010-24TC meet EN 50155?

Yes, for railway use, in mid-mount only.

What is the operating temperature of the IE-3010-24TC?

-40 to +60°C for continuous operation.
