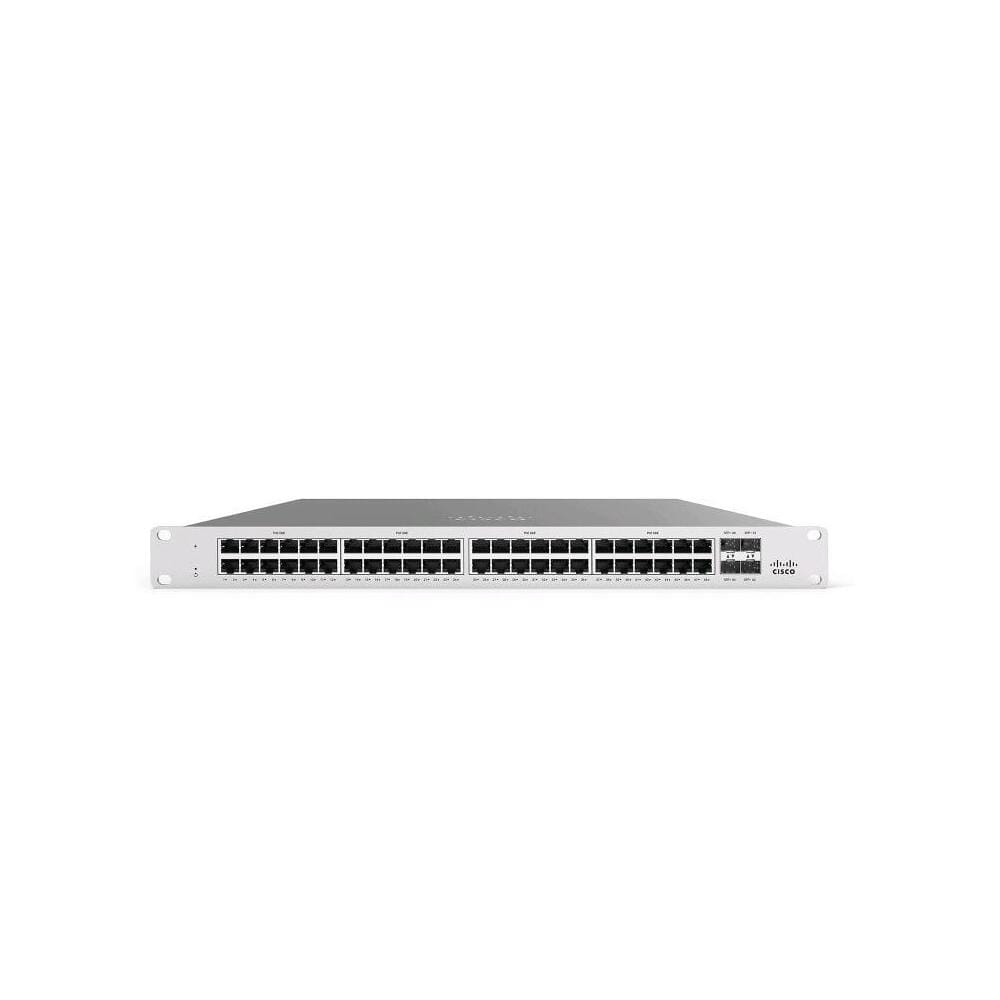

Meraki MS125-48LP-HW – Switch – managed – 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ – desktop, wall-mountable

The Meraki MS125-48LP-HW is a cloud-managed 48-port Gigabit PoE+ access switch, providing powerful performance and 370W PoE budget for demanding network environments. Ideal for businesses requiring reliable connectivity and robust power for access points, VoIP phones, and other PoE devices. Simplify your network with the Meraki MS125-48LP-HW. This 48-port Gigabit PoE+ access switch offers the ease of Meraki’s cloud management, allowing centralized configuration, monitoring, and troubleshooting from anywhere. Includes 370W of PoE power and advanced security features giving one of the best bang for your buck gear in the MS125-48LP-HW.

• Primary Information

  Product Description:	Cisco Meraki Cloud Managed MS125-48LP – switch – 48 ports – managed
  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	1U
  Subtype:	10 Gigabit Ethernet
  Ports:	48 x 10/100/1000 + 4 x 10 Gigabit SFP+
  Performance:	Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps
  Capacity:	VLANs supported: 4094
  MAC Address Table Size:	32000 entries
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Features:	Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless, security lock slot (cable lock sold separately), LACP, UDLD
  Compliant Standards:	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x
  Power:	AC 120/230 V (47 – 63 Hz)
  Dimensions (WxDxH):	17.3 in x 9.8 in x 1.7 in
  Weight:	11.9 lbs

• General

  Device Type:	Switch – 48 ports – managed
  Enclosure Type:	Wall-mountable, desktop 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	48 x 10/100/1000 + 4 x 10 Gigabit SFP+
  Performance:	Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps
  Capacity:	VLANs supported: 4094
  MAC Address Table Size:	32000 entries
  Jumbo Frame Support:	9578 bytes
  Remote Management Protocol:	SNMP
  Authentication Method:	RADIUS
  Features:	Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless, security lock slot (cable lock sold separately), LACP, UDLD
  Compliant Standards:	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x

• Expansion / Connectivity

  Interfaces:

  48 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+

• Power

  Voltage Required:	AC 120/230 V (47 – 63 Hz)
  Power Consumption Operational:	439.8 Watt

• Miscellaneous

  Rack Mounting Kit:	Included
  MTBF:	287,429 hours
  Compliant Standards:	CSA, FCC, IC, RCM, RoHS

• Dimensions & Weight

  Width:	17.3 in
  Depth:	9.8 in
  Height:	1.7 in
  Weight:	11.9 lbs
