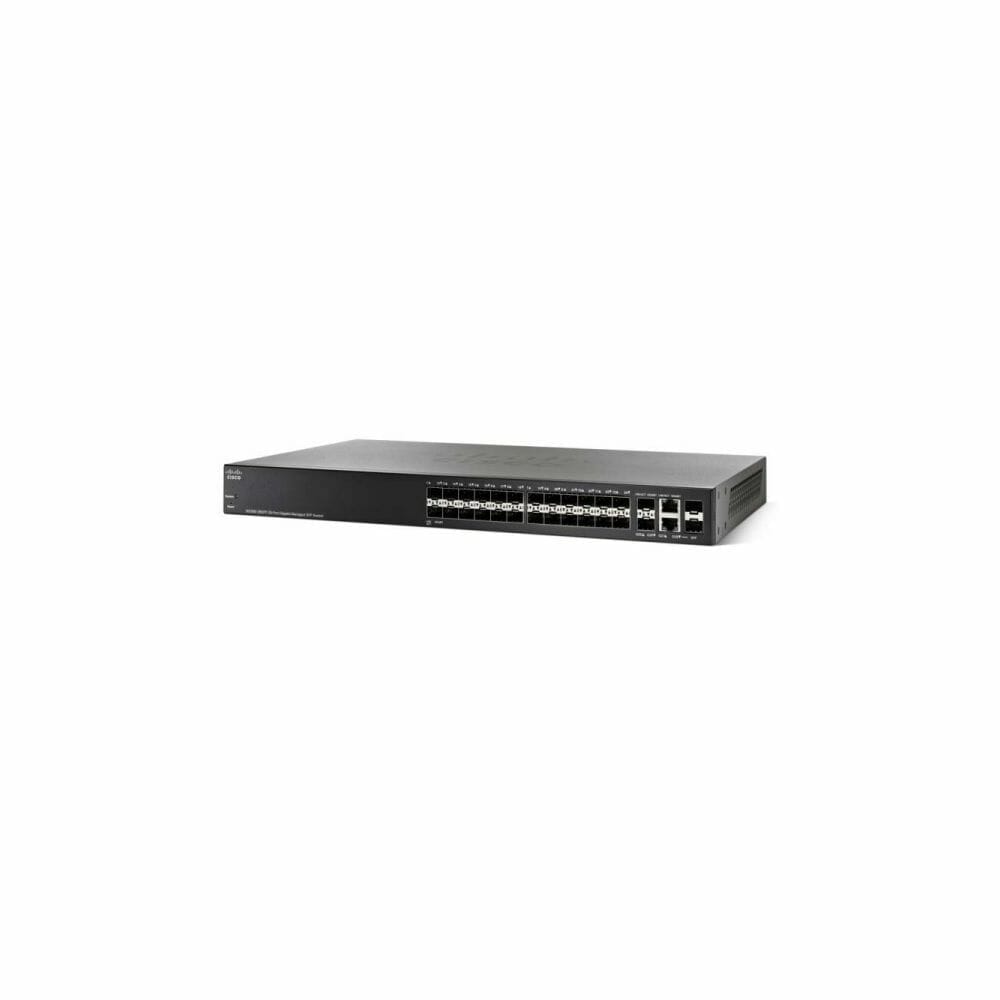

Cisco SG350-28SFP-K9 – Switch – L3 – managed – 24 x SFP + 2 x combo Gigabit Ethernet/Gigabit SFP – rack-mountable

The SG350-28SFP-K9 is a 28-port Gigabit Ethernet switch from Cisco’s Small Business series. It is designed to provide high-performance and flexible networking for small to medium-sized businesses.

The switch features 28 SFP (Small Form-Factor Pluggable) ports, which can support both fiber optic and copper connections. These ports allow for greater flexibility in network design and can accommodate various types of devices and distances. The SFP ports are hot-swappable, meaning that they can be inserted or removed without interrupting network operation.

With a Gigabit Ethernet capacity, the SG350-28SFP-K9 provides fast and reliable data transfer rates for all connected devices. It supports advanced Layer 2 and Layer 3 features, including VLANs (Virtual Local Area Networks) for network segmentation, QoS (Quality of Service) for traffic prioritization, and security features such as Access Control Lists (ACLs) for network protection.

The switch also includes additional features like Link Aggregation (LAG) for increased bandwidth and redundancy, IPv6 support for future-proofing your network, and intuitive management options. It can be managed through a web-based interface or through Cisco’s Device Manager software, allowing for easy configuration, monitoring, and troubleshooting.

Overall, the SG350-28SFP-K9 offers a robust and scalable networking solution with its versatile SFP ports, advanced features, and user-friendly management options. It is well-suited for businesses that require a flexible and high-performance switch to support their growing network needs.

• Primary Information

  Product Description:	Cisco Small Business SG350-28SFP – switch – 28 ports – managed – rack-mountable
  Device Type:	Switch – 28 ports – L3 – managed
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x SFP + 2 x combo Gigabit Ethernet/Gigabit SFP
  Performance:	Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps
  Capacity:	Active VLANs: 4096 ¦ ACL rules: 512
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	9216 bytes
  Routing Protocol:	Static IPv4 routing, CIDR
  Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
  Features:	Layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer, 1 fan
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
  Power:	AC 120/230 V (50/60 Hz)
  Dimensions (WxDxH):	17.3 in x 10.1 in x 1.7 in
  Weight:	5.95 lbs

• General

  Device Type:	Switch – 28 ports – L3 – managed
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	24 x SFP + 2 x combo Gigabit Ethernet/Gigabit SFP
  Performance:	Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps
  Capacity:	Active VLANs: 4096 ¦ ACL rules: 512
  MAC Address Table Size:	16K entries
  Jumbo Frame Support:	9216 bytes
  Routing Protocol:	Static IPv4 routing, CIDR
  Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
  Encryption Algorithm:	SSL
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
  Features:	Layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer, 1 fan
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
  RAM:	512 MB
  Flash Memory:	256 MB
  Status Indicators:	Link/activity

• Expansion / Connectivity

  Interfaces:

  24 x Gigabit LAN SFP ¦ 2 x 1000Base-T RJ-45/SFP ¦ 1 x console RJ-45 management ¦ 1 x USB management

• Power

  Power Device:	Internal power supply
  Voltage Required:	AC 120/230 V (50/60 Hz)

• Miscellaneous

  Cables Included:	1 x console cable
  Rack Mounting Kit:	Included
  MTBF:	101,523 hours
  Compliant Standards:	UL 60950, FCC Part 15 A, CSA 22.2
