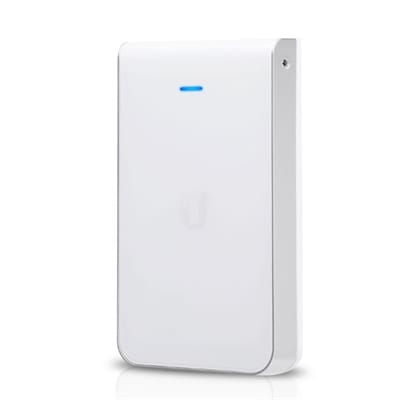

UAP-IW-HD
Product Name: In-Wall 802.11ac Wave 2 Wi-Fi Access Point
Marketing Information: In-Wall 802.11ac Wave2 MU-MIMO Enterprise Access Point.
Features:
- 4×4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2×2 MIMO on 2.4GHz (300Mbps max PHY rate)
- 802.3af for base functionality. 802.3at required if using PoE passthrough
- 1×4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 1.99 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 5
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
Physical Characteristics
Form Factor: Wall Mountable
Height: 5.5″
Width: 3.4″
Depth: 1″
Weight (Approximate): 7.41 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: REACH
Environmental Certification: RoHS
